Stm32f4xx minimal dev

amrithHN·stm32f4xx_minimal_dev

Stm32f4xx minimal dev PCB layout, top view — open source STM32 board by amrithHN

About the Stm32f4xx minimal dev PCB

Stm32f4xx minimal dev is an open source STM32 PCB design by amrithHN, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 70.8 × 70.8 mm, with 74 components from 36 distinct parts.

Its main chip is the STM32F405RGT6, from the STM32 family. Other key parts include the MP2359DJ, W25N01GVZEIG_TR, USBLC6-2SC6, BMP280 and BMI088. By type, the board carries 30 resistors, 19 capacitors, 9 connectors, 6 ICs, 4 diodes and 2 inductors.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

stm32f4 minimal dev board with few sensors

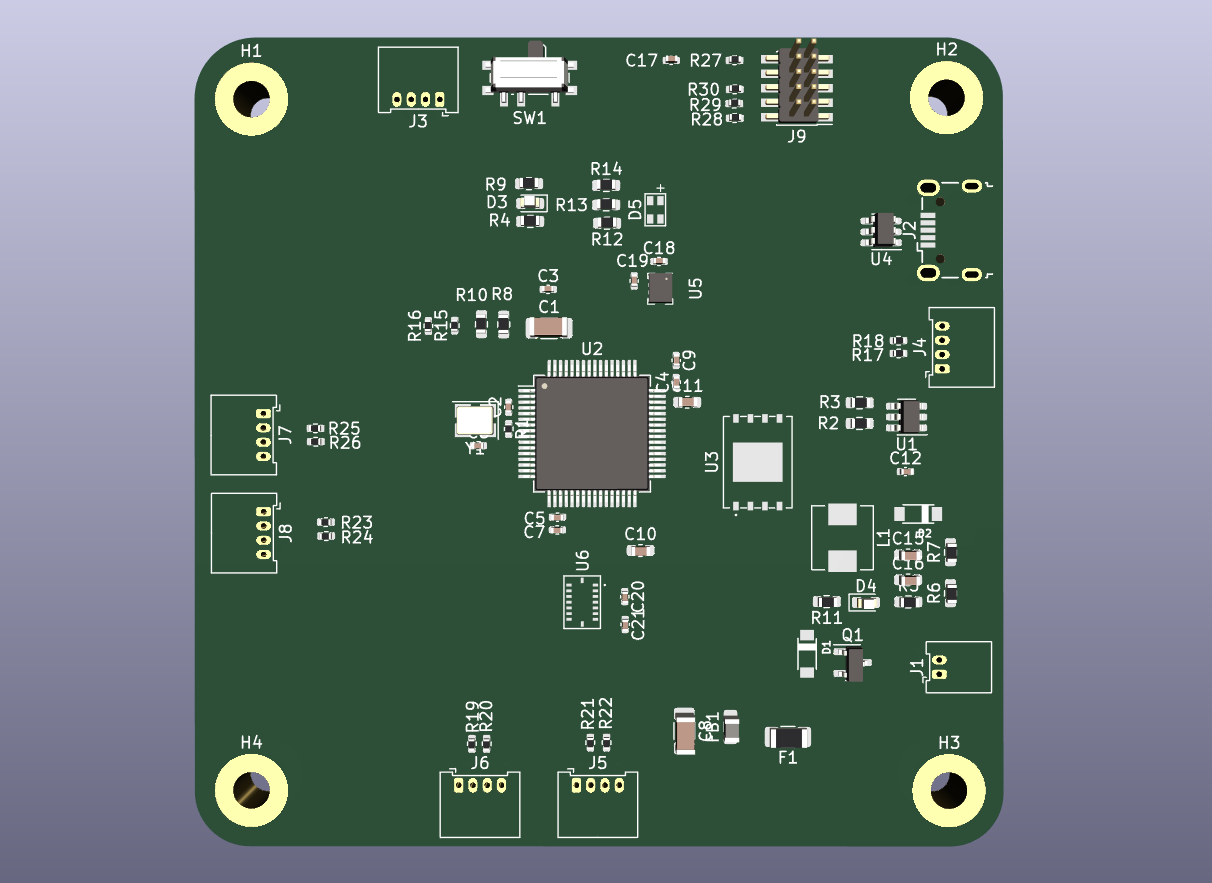

Stm32f4xx minimal dev, from the project README
From the project README

Main components on the Stm32f4xx minimal dev

MP2359DJSTM32F405RGT6W25N01GVZEIG_TRUSBLC6-2SC6BMP280BMI088

Stm32f4xx minimal dev bill of materials (BOM)

74 components, 36 distinct parts.

QtyPartRefs
1
MP2359DJ
U1
1
STM32F405RGT6
U2
1
W25N01GVZEIG_TR
U3
1
USBLC6-2SC6
U4
1
BMP280
U5
1
BMI088
U6
1
AO3401A
Q1
1
16MHz
Y1
1
Conn_01x02
J1
1
USB_B_Micro
J2
6
Conn_01x04
J3, J4, J5, J6, J7, J8
1
Conn_02x05_Odd_Even
J9
1
250mA
F1
1
SW_SPDT
SW1
2
B5819W
D1, D2
1
RED
D3
1
GREEN
D4
1
600@600Mhz
FB1
1
INDUCTOR
L1
2
10u
C1, C8
Show 16 more
QtyPartRefs
2
20p
C2, C6
10
100n
C3, C4, C5, C7, C9, C17, C18, C19 +2
2
2u2
C10, C11
1
10n
C12
2
10u
C15, C16
1
47
R1
1
100k
R2
1
68k
R3
1
10k
R4
1
47k
R5
1
15k
R6
1
270
R7
2
2k2
R8, R10
4
1k
R9, R12, R13, R14
1
1k5
R11
16
22
R15, R16, R17, R18, R19, R20, R21, R22 +8

Stm32f4xx minimal dev design files

The KiCad project lives in the amrithHN/stm32f4xx_minimal_dev repository on GitHub; these links point at the commit this page was built from.

Stm32f4xx minimal dev: common questions

What microcontroller does the Stm32f4xx minimal dev use?

The Stm32f4xx minimal dev is built around the STM32F405RGT6, from the STM32 family.

How big is the Stm32f4xx minimal dev PCB?

The Stm32f4xx minimal dev measures 70.8 × 70.8 mm, has 4 copper layers and is 4.69 mm thick.

How many components are on the Stm32f4xx minimal dev?

74 components, from 36 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stm32f4xx minimal dev design files?

From the amrithHN/stm32f4xx_minimal_dev repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Stm32f4xx minimal dev design in my own project?

Yes, under the terms of its GPL-3.0 license, which amrithHN chose for the repository.

Can I test firmware for the Stm32f4xx minimal dev without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
