Door sensor hardware
About the Door sensor hardware PCB
Door sensor hardware is an open source PCB design by AndersFrandsen, published on GitHub. It is a 4-layer board measuring 40 × 30 mm, with 19 components from 16 distinct parts.
Other key parts include the AP2112K-3.3 and MS88SF2. By type, the board carries 5 capacitors, 5 resistors, 3 connectors, 2 ICs, 2 diodes and 1 battery holder.
It belongs with the sensors designs in this gallery.
From the project
KiCad design for the Matter Over Thread Door Sensor project.
KiCad design for the Matter Over Thread Door Sensor project.

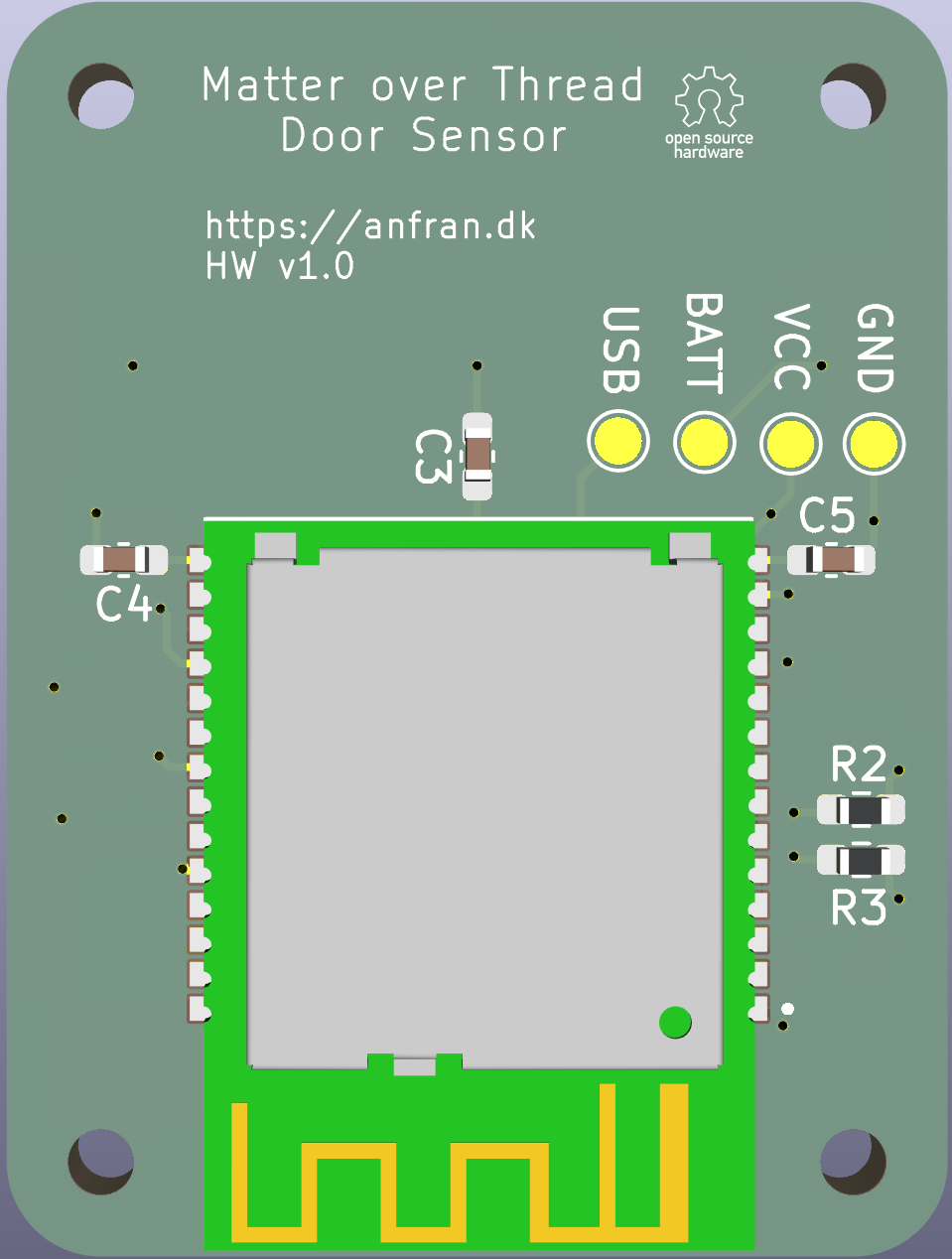

A door sensor PCB that uses the MS88SF2 Radio-module (Nordic nRF52840) to detect door open/close events via a reed switch and send them over a Thread network using the Matter protocol.
- Size: 40 × 30 mm - Layers: 4 (F.Cu signal, In1.Cu GND plane, In2.Cu power plane, B.Cu signal) - Thickness: 1.6 mm - Version: HW v1.0
Main components on the Door sensor hardware
Door sensor hardware bill of materials (BOM)
19 components, 16 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP2112K-3.3 | SOT-23-5 | U2 |
| 1 | MS88SF2 | XCVR_MS88SF2 | U3 |
| 1 | STDC14 | PinHeader_2x07_P1.27mm_Vertical_SMD | J1 |
| 1 | Reed_SW | JST_SH_SM02B-SRSS-TB_1x02-1MP_P1.00mm_Horizontal | J2 |
| 1 | USB-C | USB_C_Receptacle_GCT_USB4135-GF-A_6P_TopMnt_Horizontal | P1 |
| 1 | Battery | BatteryHolder_Keystone_3034_1x20mm | BT1 |
| 1 | SW_Push | SW_SPST_PTS647_Sx38 | SW1 |
| 1 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 1 | BAT54C | SOT-23 | D2 |
| 2 | 1µF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2 |
| 1 | 10µF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3 |
| 2 | 100nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4, C5 |
| 1 | 1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 2 | 5K1 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3 |
| 1 | 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4 |
| 1 | 1M | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7 |
Door sensor hardware design files
The KiCad project lives in the AndersFrandsen/door-sensor-hardware repository on GitHub; these links point at the commit this page was built from.
- Layoutdoor-sensor.kicad_pcb
- Schematicdoor-sensor.kicad_sch
- BOMREADME.md
Door sensor hardware: common questions
How big is the Door sensor hardware PCB?
The Door sensor hardware measures 40 × 30 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Door sensor hardware?
19 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Door sensor hardware design files?
From the AndersFrandsen/door-sensor-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Door sensor hardware design in my own project?
The repository has no license, so all rights stay with AndersFrandsen. Use it as a reference, and ask the author before reusing the design.
