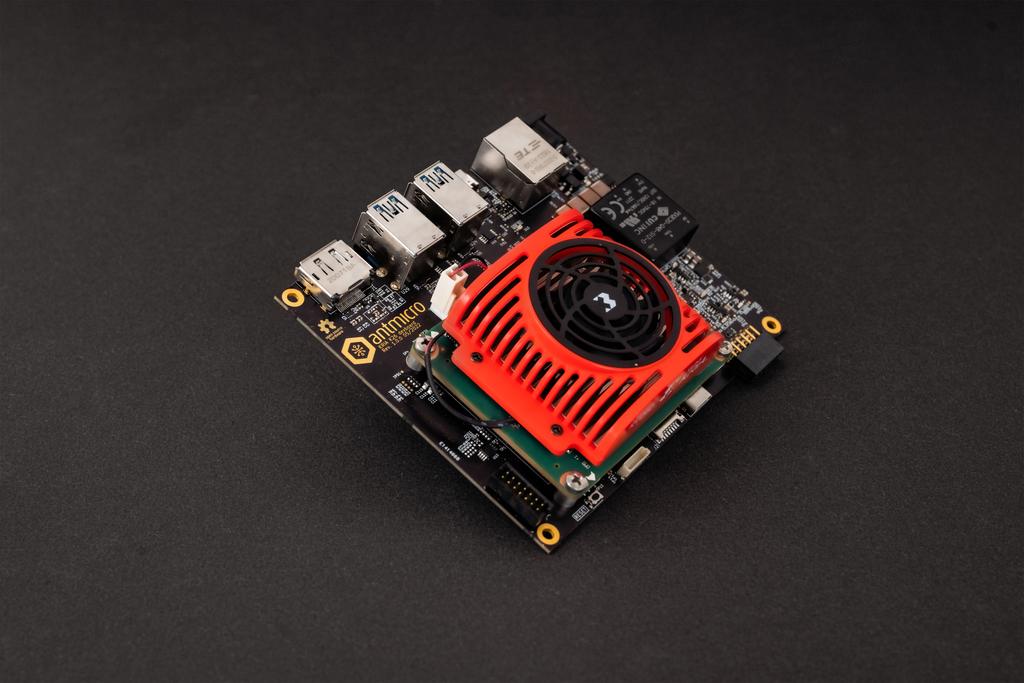

About the Kria k26-devboard PCB

Kria k26-devboard is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 101 components from 19 distinct parts.

Other key parts include the TPS2066TDGNRQ1, USB7016/KDX, TPD4E05U06QDQARQ1, 82400152 and USB3310C-CP. By type, the board carries 51 capacitors, 31 resistors, 14 ICs, 3 test points and 2 crystals.

It belongs with the dev boards & breakouts, iot & wireless and power & battery designs in this gallery.

From the project

Open source AMD Xilinx Kria UltraScale+ SoM baseboard

This project contains open hardware design files for a devkit created for AMD-Xilinx Kria K26 System on Module (SoM).

This development board routes the I/O interfaces from the SoM and provides the necessary power buses. The design files were prepared in KiCad 7.

The main directory contains KiCad PCB project files, a LICENSE, and a README. The remaining files are stored in the following directories:

Main components on the Kria k26-devboard

TPS2066TDGNRQ1 USB7016/KDX TPD4E05U06QDQARQ1 82400152 USB3310C-CP GSB3112311HR

Kria k26-devboard bill of materials (BOM)

101 components, 19 distinct parts.

Qty	Part	Footprint	Refs
2	TPS2066TDGNRQ1 Texas Instruments	VSSOP-8-1EP_3x3x1.1mm_P0.65mm	U16, U18
1	USB7016/KDX USB7016_KDX Microchip Technology	VQFN-100-1EP_12x12x0.85mm_P0.4mm	U17
4	TPD4E05U06QDQARQ1 Texas Instruments	USON-10_2.5x1mm_P0.5mm	U19, U22, U25, U28
4	82400152 Würth Elektronik	SOT-563	U20, U21, U26, U27
1	USB3310C-CP Microchip Technology	QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm	U23
2	GSB3112311HR USB-A_Amphenol_GSB3112311HR Amphenol	USB-A_Receptacle_Amphenol_GSB3112311HR	U24, U29
1	ECS-2016MV-250-CN-TR Oscillator_25MHz_ESC_2016MV ECS Inc. International	Oscillator_SMD_ECS_2016MV_2x1.6x0.85mm	Y4
1	ECS-2016MV-240-CN-TR Oscillator_24MHz_ESC_2016MV ECS Inc. International	Oscillator_SMD_ECS_2016MV_2x1.6x0.85mm	Y5
3	TP_0.75mm_SMD	TP_SMD_0.75mm	TP10, TP11, TP12
40	GRM155R61H104KE14D C_100n_0402 Murata	C_0402_1005Metric	C39, C41, C43, C44, C45, C46, C47, C48 +32
3	GRM155R61A475MEAAD C_4u7_0402 Murata	C_0402_1005Metric	C40, C42, C86
8	CC0402MRX5R5BB106 C_10u_0402 Yaego	C_0402_1005Metric	C70, C71, C72, C73, C81, C82, C84, C85
2	CR0402-FX-1202GLF R_12k_0402 Bourns	R_0402_1005Metric	R38, R52
2	CR0402-FX-4992GLF R_49k9_0402 Bourns	R_0402_1005Metric	R39, R175
20	CR0402-FX-2003GLF R_200k_0402 Bourns	R_0402_1005Metric	R40, R41, R42, R43, R44, R45, R49, R50 +12
4	CR0402-FX-1002GLF R_10k_0402 Bourns	R_0402_1005Metric	R46, R47, R48, R66
1	CR0402-FX-5111GLF R_5k11_0402 Bourns	R_0402_1005Metric	R62
1	CR0402-FX-8061GLF R_8k06_0402 Bourns	R_0402_1005Metric	R65
1	CR0402-FX-4302GLF R_43k_0402 Bourns	R_0402_1005Metric	R174

Kria k26-devboard design files

The KiCad project lives in the antmicro/kria-k26-devboard repository on GitHub; these links point at the commit this page was built from.

Schematicusb.kicad_sch

Kria k26-devboard: common questions

How many components are on the Kria k26-devboard?

101 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kria k26-devboard design files?

From the antmicro/kria-k26-devboard repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Kria k26-devboard design in my own project?

Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
