Poe usb c pd converter
About the Poe usb c pd converter PCB
Poe usb c pd converter is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 112 × 56 mm, with 199 components from 77 distinct parts.
Other key parts include the TPS2372-3RGWR, LV14540DDAR, INA230AIRGTR, IEA48003A280V-001-R and FT4232H-56Q-REEL. By type, the board carries 86 resistors, 60 capacitors, 19 diodes, 14 ICs, 7 inductors and 4 transistors.
It belongs with the power & battery designs in this gallery.
From the project

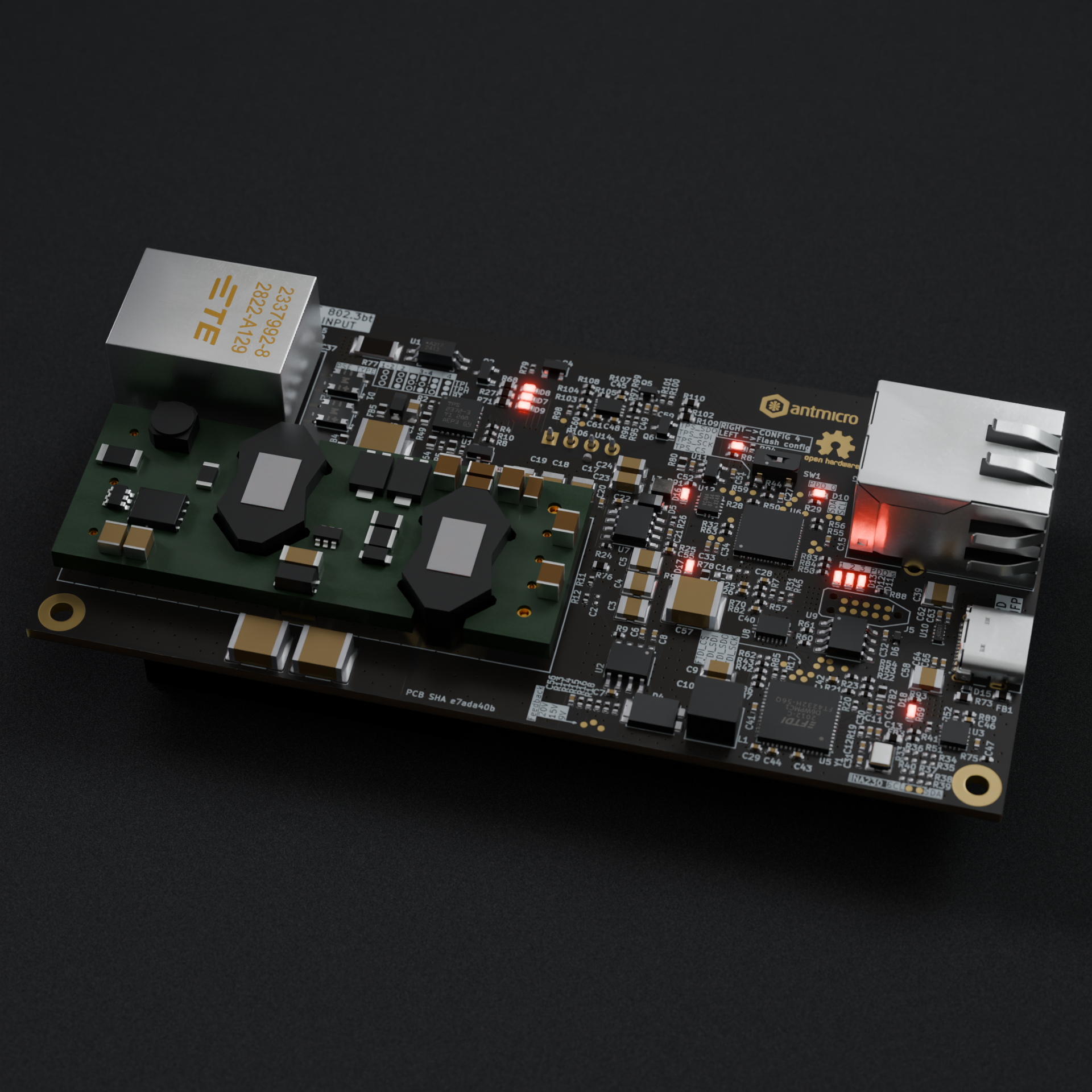

PCB design which converts Power over Ethernet (PoE) into USB-C Power Delivery (PD)
This project contains open hardware PCB design files for an adapter that splits a Power-over-Ethernet (PoE) capable RJ45 interface port into a USB-C Power Delivery (PD) port and an Ethernet RJ45 port. It negotiates power from PoE Power Sourcing Equipment (PSE) such as a PoE switch or a PoE injector. For the USB-C connection, the board serves as an Upstream Facing Port (UFP) power source. The USB-C port can be used for reading current and voltage negotiated for the PD.
Main components on the Poe usb c pd converter
Poe usb c pd converter bill of materials (BOM)
199 components, 77 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS2372-3RGWR Texas Instruments | VQFN-20_5x5x1mm_P0.65mm | U1 |
| 2 | LV14540DDAR Texas Instruments | SOIC-8-1EP_3.9x4.9x1.75mm_P1.27mm | U2, U7 |
| 1 | INA230AIRGTR Texas Instruments | VQFN-16-1EP_3x3mm_P0.5mm_EP1.68x1.68mm | U3 |
| 1 | IEA48003A280V-001-R TDK | IEA48003A280V-001-R | U4 |
| 1 | FT4232H-56Q-REEL FT4232H_VQFN FTDI Chip | QFN-56-1EP_8x8mm_P0.5mm | U5 |
| 1 | TPS65987DDHRSHR Texas Instruments | IC_TPS65987DDHRSHR | U6 |
| 1 | 74CBTLV3257BQ,115 74CBTLV3257_VQFN Nexperia | DHVQFN-16-1EP_2.5x3.5mm_P0.5mm | U8 |
| 1 | W25Q80DVSNIG W25Q80DV_SOIC-8 Winbond | SOIC-8_3.9x4.9x1.75mm_P1.27mm | U9 |
| 1 | TPD4E05U06QDQARQ1 Texas Instruments | USON-10_2.5x1mm_P0.5mm | U10 |
| 1 | AP7366-33W5-7 Diodes Incorporated | SOT-23-5 | U11 |
| 1 | 74LVC06ABQ Nexperia | DHVQFN-14-1EP_2.5x3mm | U12 |
| 1 | ACPL-217-500E Broadcom | SOIC-4_4.55x2.6mm_P1.27mm | U13 |
| 1 | MAX31740ATA+T Analog Devices | TDFN-8-1EP_2x3x0.75mm_P0.5mm_EP1.75x1.63mm | U14 |
| 4 | BSS123 ON Semiconductor | SOT-23-3 | Q1, Q2, Q3, Q4 |
| 1 | ABM8G-12.000MHZ-18-D2Y-T Resonator_12MHz_ABM8G Abracon | Resonator_SMD_Abracon_ABM8G_3.2x2.5mm | Y1 |
| 1 | 5-2337992-8 Bus_RJ45_5-2337992-8 TE Connectivity | RJ45_X-2337992-8_Horizontal | J1 |
| 1 | 7499111121A Bus_RJ45_7499111121A Würth Elektronik | RJ45_7499111121A_Horizontal | J2 |
| 1 | USB4105-GF-A USB-C_GCT_USB4105-GF-A GCT | USB-C_Receptacle_GCT_USB4105-GF-A | J3 |
| 1 | 0470531000 Molex_KK_1x4_0470531000 Molex | Conn_Molex_KK_1x4_0470531000 | J4 |
| 1 | FK 250 08 LF PAK Heatsink_Fischer_FK250_08_LF_PAK_15x8mm Fischer Elektronik | Heatsink_Fischer_FK250_08_LF_PAK_15x8mm | H1 |
Show 57 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SK 447 37,5 SA Heatsink_Fischer_SK_447_37_5_SA Fischer Elektronik | Heatsink_Fischer_SK_447_37_5_SA | H2 |
| 1 | NCP15XH103F03RC RT_NTC_10k_0603 Murata | R_0603_1608Metric | RT1 |
| 1 | CAS-120TA Nidec Components | Switch_Slide_CAS-120TA | SW1 |
| 2 | CD-MMBL110S Bourns | DFN3538 | D1, D2 |
| 1 | PTVS58VS1UR,115 Nexperia | D_SOD-123F | D3 |
| 1 | PDS760-13 PDS760 Diodes Incorporated | PowerDI5 | D4 |
| 1 | 1N5819HW-7-F Diodes Incorporated | D_SOD-123 | D5 |
| 1 | RB521S30T1G ON Semiconductor | SOD-523 | D6 |
| 12 | KP-1608EC LED_R_0603_KP-1608EC Kingbright | LED_0603_1608Metric_R | D7, D8, D9, D10, D11, D12, D13, D14 +4 |
| 1 | DF2S30FS DF2S30FS_SOD Toshiba | SOD-923 | D15 |
| 3 | BLM18AG601SN1D FB_600Z_0.5A_Murata-BLM18AG_0603 Murata | FB_0603_1608Metric | FB1, FB2, FB3 |
| 2 | BLM18EG121SH1D FB_120Z_2A_Murata-BLM18E_0603 Murata | FB_0603_1608Metric | FB4, FB5 |
| 1 | MPL-AL5050-6R8 L_6u8_6.1A_MPS-MPL-AL5050 Monolithic Power Systems | L_MPS-MPL-AL5050 | L1 |
| 1 | SRP2512A-4R7M L_4u7_1.55A_Bourns-SRP2512A Bourns | L_Bourns-SRP2512A | L3 |
| 1 | CL21B104KCFNNNE C_100n_100V_0805 Samsung Electro-Mechanics | C_0805_2012Metric | C1 |
| 8 | CGA6M3X7S2A475K200AB C_4u7_1210_100V TDK | C_1210_3225Metric | C3, C4, C5, C17, C18, C19, C39, C58 |
| 19 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C6, C8, C14, C20, C22, C26, C30, C32 +11 |
| 2 | C0402C332K5RAC C_3n3_0402 KEMET | C_0402_1005Metric | C7, C21 |
| 4 | C3216X5R1E476M160AC C_47u_25V_1206 TDK | C_1206_3216Metric | C9, C10, C23, C24 |
| 5 | GRM155C61E475ME15J C_4u7_25V_0402 Murata | C_0402_1005Metric | C11, C13, C15, C29, C33 |
| 2 | CL05C180JB51PNC C_18p_0402 Samsung Electro-Mechanics | C_0402_1005Metric | C12, C31 |
| 2 | GRM155R61E105KE11J C_1u_25V_0402 Murata | C_0402_1005Metric | C16, C61 |
| 5 | GRM155R61A106ME11D C_10u_10V_0402 Murata | C_0402_1005Metric | C25, C27, C28, C51, C52 |
| 5 | C0402C103J5RAC C_10n_50V_X7R_0402 KEMET | C_0402_1005Metric | C37, C62, C63, C64, C65 |
| 1 | CC0402JRX7R9BB391 C_390p_50V_0402 YAGEO | C_0402_1005Metric | C48 |
| 4 | C5750X7S2A226M280KB C_22u_100V_2220 TDK | C_2220_5650Metric | C50, C53, C54, C57 |
| 2 | C0402C470J5GACTU C_47p_0402 KEMET | C_0402_1005Metric | C55, C56 |
| 1 | CR0603-FX-1301ELF R_1k3_0603 Bourns | R_0603_1608Metric | R1 |
| 1 | CR0402-FX-2492GLF R_24k9_0402 Bourns | R_0402_1005Metric | R2 |
| 4 | CR0402-FX-1002GLF R_10k_0402 Bourns | R_0402_1005Metric | R4, R7, R32, R69 |
| 1 | CR0402-FX-4992GLF R_49k9_0402 Bourns | R_0402_1005Metric | R5 |
| 28 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R6, R17, R21, R35, R39, R41, R42, R44 +20 |
| 2 | CR0402-FX-4703GLF R_470k_0402 Bourns | R_0402_1005Metric | R8, R82 |
| 3 | CR0402-FX-2702GLF R_27k_0402 Bourns | R_0402_1005Metric | R9, R24, R90 |
| 4 | CR0402-FX-1003GLF R_100k_0402 Bourns | R_0402_1005Metric | R10, R31, R66, R79 |
| 2 | CR0402-FX-2003GLF R_200k_0402 Bourns | R_0402_1005Metric | R13, R25 |
| 1 | CR0402-FX-7681GLF R_7k68_0402 Bourns | R_0402_1005Metric | R14 |
| 1 | CR0402-FX-2701GLF R_2k7_0402 Bourns | R_0402_1005Metric | R15 |
| 1 | CR0402-FX-7501GLF R_7k5_0402 Bourns | R_0402_1005Metric | R16 |
| 1 | CR0402-FX-1742GLF R_17k4_0402 Bourns | R_0402_1005Metric | R18 |
| 1 | CR0402-FX-1202GLF R_12k_0402 Bourns | R_0402_1005Metric | R19 |
| 7 | CR0402-FX-1001GLF R_1k_0402 Bourns | R_0402_1005Metric | R20, R29, R58, R59, R62, R83, R84 |
| 3 | CR0402-FX-4701GLF R_4k7_0402 Bourns | R_0402_1005Metric | R22, R23, R28 |
| 1 | CR0402-FX-3302GLF R_33k_0402 Bourns | R_0402_1005Metric | R26 |
| 3 | CR0603-FX-5102ELF R_51k_0603 Bourns | R_0603_1608Metric | R27, R68, R71 |
| 4 | CR0402-FX-2700GLF R_270R_0402 Bourns | R_0402_1005Metric | R30, R46, R48, R65 |
| 1 | CR0603-FX-63R4ELF R_63R4_0603 Bourns | R_0603_1608Metric | R49 |
| 2 | CR0402-FX-10R0GLF R_10R_0402 Bourns | R_0402_1005Metric | R52, R89 |
| 1 | CR0603-FX-90R9ELF R_90R9_0603 Bourns | R_0603_1608Metric | R64 |
| 1 | CR0402-FX-1503GLF R_150k_0402 Bourns | R_0402_1005Metric | R67 |
| 1 | CR0402-FX-2703GLF R_270k_0402 Bourns | R_0402_1005Metric | R70 |
| 1 | CFN0603AFZ-R010ELF R_0R01_0603 Bourns | R_0603_1608Metric | R73 |
| 4 | PMR03EZPJ000 R_0R_22.4A_0603 ROHM Semiconductor | R_0603_1608Metric | R76, R78, R80, R110 |
| 1 | CR2010-FX-1202ELF R_12k_2010 Bourns | R_2010_5025Metric | R77 |
| 3 | CR0402-FX-3301GLF R_3k3_0402 Bourns | R_0402_1005Metric | R91, R92, R94 |
| 1 | CR0402-FX-6801GLF R_6k8_0402 Bourns | R_0402_1005Metric | R93 |
| 1 | CR0402-FX-5601GLF R_5k6_0402 Bourns | R_0402_1005Metric | R98 |
Poe usb c pd converter design files
The KiCad project lives in the antmicro/poe-usb-c-pd-converter repository on GitHub; these links point at the commit this page was built from.
Poe usb c pd converter: common questions
How big is the Poe usb c pd converter PCB?
The Poe usb c pd converter measures 112 × 56 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Poe usb c pd converter?
199 components, from 77 distinct parts. The full bill of materials is listed on this page.
Where can I download the Poe usb c pd converter design files?
From the antmicro/poe-usb-c-pd-converter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Poe usb c pd converter design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
