Stm32h7-renode reference platform
About the Stm32h7-renode reference platform PCB
Stm32h7-renode reference platform is an open source STM32 PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 100 × 60 mm, with 380 components from 79 distinct parts.
Its main chip is the STM32H753XIH6TR, from the STM32 family. Other key parts include the TXU0304BQAR, IIS2MDCTR, LSM6DSO32TR, TMP108AIYFFR and LPS25HBTR. By type, the board carries 179 resistors, 120 capacitors, 27 ICs, 26 diodes, 7 connectors and 6 switches.
It belongs with the sensors designs in this gallery.
From the project

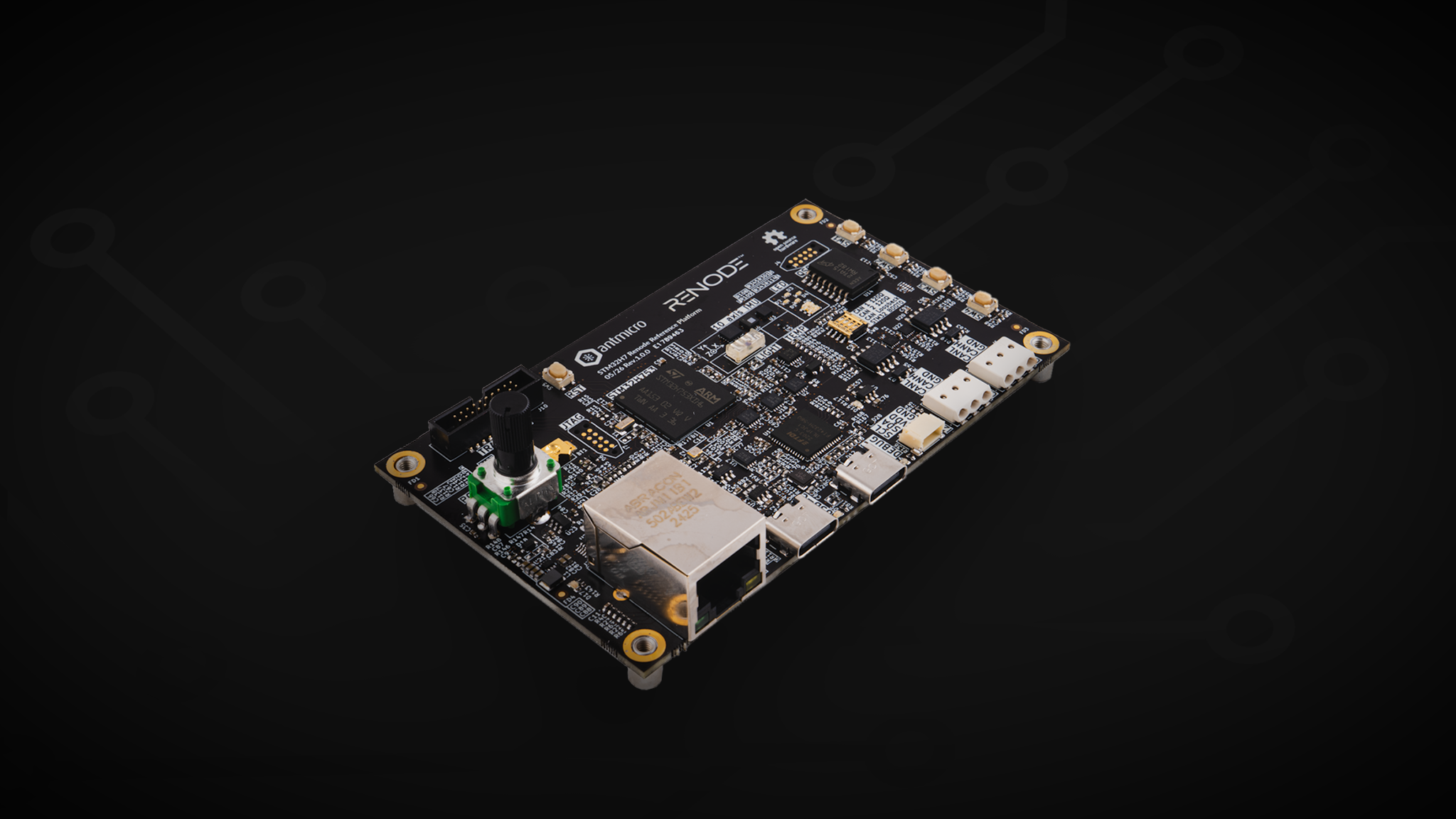

This project contains open hardware design files for an STM32H753 Renode Reference Platform. The board includes a high-performance 32-bit STM32H753 MCU and a group of sensors integrated into a development kit form factor. A digital twin of the board is represented in the Renode s
This project contains open hardware design files for an STM32H753 Renode Reference Platform. The board includes a high-performance 32-bit STM32H753 MCU and a group of sensors integrated into a development kit form factor. A digital twin of the board is represented in the Renode simulation framework, allowing users to experiment and learn how to integrate Renode into the development process.
Main components on the Stm32h7-renode reference platform
Stm32h7-renode reference platform bill of materials (BOM)
380 components, 79 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32H753XIH6TR STM32H753XIH6 STMicroelectronics | TFBGA-289-265_14x14mm_Layout17x17_P0.8mm | U1 |
| 4 | TXU0304BQAR TXU0204BQAR Texas Instruments | DHVQFN-14-1EP_2.5x3mm | U2, U16, U18, U27 |
| 1 | IIS2MDCTR STMicroelectronics | LGA-12_2x2mm_P0.5mm | U3 |
| 1 | LSM6DSO32TR STMicroelectronics | LGA-14L_3x2.5mm_P0.5mm | U4 |
| 1 | TMP108AIYFFR Texas Instruments | Texas_DSBGA-6_1.2x0.8mm_Layout2x3_P0.4mm | U5 |
| 1 | LPS25HBTR STMicroelectronics | HLGA-10L_2.5x2.5mm_P0.6mm | U6 |
| 1 | NCP718BSN330T1G ON Semiconductor | SOT-23-5 | U7 |
| 2 | TS3A4751RUCR TS3A4751_X2QFN Texas Instruments | Texas_X2QFN-14_2x2mm_P0.4mm | U8, U22 |
| 1 | TPD4E05U06QDQARQ1 Texas Instruments | USON-10_2.5x1mm_P0.5mm | U9 |
| 1 | LAN8742A-CZ-TR Microchip Technology | VQFN-24-1EP_4x4x0.9mm_P0.5mm_EP2.6x2.6mm | U10 |
| 1 | VEML7700-TT VEML7700 Vishay | VEML7700 | U11 |
| 1 | FUSB303B Onsemi | Texas_X2QFN-12_1.6x1.6mm_P0.4mm | U12 |
| 1 | AP22615BWU-7 AP22615B_TSOT26 Diodes Incorporated | TSOT23-6 | U13 |
| 1 | IS25LP01GJ-RMLE-TY IS25LP01GJ-RMLE ISSI | SOP2-16_7.5x10.3mm | U14 |
| 1 | FT4232H-56Q-REEL FT4232H_VQFN FTDI Chip | QFN-56-1EP_8x8mm_P0.5mm | U15 |
| 1 | 93LC66BT-I/MC 93LC66BT_DFN Microchip Technology | DFN-8-1EP_3x2mm_P0.5mm_EP1.36x1.46mm | U17 |
| 2 | TCAN3414DR Texas Instruments | SOIC-8_3.9x4.9x1.75mm_P1.27mm | U19, U20 |
| 1 | TPS62A06DRLR Texas Instruments | SOT-563 | U21 |
| 1 | INA187A2IDBVR Texas Instruments | SOT-23-6 | U23 |
| 1 | INA228AQDGSRQ1 Texas Instruments | VSSOP-10_3x3mm_P0.5mm | U24 |
Show 59 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LVC06ABQ Nexperia | DHVQFN-14-1EP_2.5x3mm | U25 |
| 1 | AT24CS01-ST AT24CS01_SOT23 Atmel | SOT-23-5 | U26 |
| 2 | BSS138PW,115 Nexperia | SC70-3 | Q1, Q4 |
| 1 | ECS-.327-12.5-34B-TR Resonator_32.768kHz_ECX-31B ECS Inc. International | Resonator_SMD_ECS_ECX-31B_3.2x1.5x0.9mm | Y1 |
| 2 | ECS-2016MV-250-CN-TR Oscillator_25MHz_ESC_2016MV ECS Inc. International | Oscillator_SMD_ECS_2016MV_2x1.6x0.85mm | Y2, Y3 |
| 1 | ABM8G-12.000MHZ-18-D2Y-T Resonator_12MHz_ABM8G Abracon | Resonator_SMD_Abracon_ABM8G_3.2x2.5mm | Y4 |
| 2 | USB4105-GF-A USB-C_GCT_USB4105-GF-A GCT | USB-C_Receptacle_GCT_USB4105-GF-A | J1, J2 |
| 1 | ARJM11B1-502-AB-EW2 RJ45_Abracon_ARJM11B1-502-AB-EW2 Abracon | RJ45_ARJM11B1-502-AB-EW2_Horizontal | J3 |
| 2 | 2059-303/998-403 Wago_2059_1x3_2059-303/998-403 WAGO | WAGO_2059_1x3_2059-303-998-403 | J5, J6 |
| 1 | SM04B-SRSS-TB(LF)(SN) JST_SH_1x4_SM04B-SRSS-TB-LF-SN JST Automotive Connectors | Conn_JST_SH_1x4_SM04B-SRSS-TB-LF-SN | J8 |
| 1 | 62732020621 PinHeader_2x10_P1.27mm_SMD_Shrouded Würth Elektronik | PinHeader_2x10_P1.27mm_SMD_Shrouded | J10 |
| 1 | 2998TR Battery_Holder_2998TR Keystone Electronics | Battery_Holder_2998TR | BT1 |
| 4 | 9774050151R Spacer_Drill3.7mm_H5mm_9774050151R Würth Elektronik | Spacer_Drill3.7mm_H5mm_9774050151R | H1, H2, H3, H4 |
| 1 | RV09AF-40-20K-B100K POT_100k_RV09AF-40-20K-B100K Bourns | POT_RV09AF-40 | POT1 |
| 5 | SKRPABE010 SW_SKRPABE010 Alps Alpine | SW_SKRPABE010_SMD | SW1, SW2, SW3, SW4, SW5 |
| 1 | CVS-04B Nidec Components | SW_DIP_SPSTx04_Slide_Copal_CVS-04xB_W5.9mm_P1mm | SW8 |
| 8 | LG L29K-G2J1-24-Z LED_G_0603_LG_L29K-G2J1-24-Z OSRAM | LED_0603_1608Metric_G | D1, D2, D3, D4, D9, D15, D16, D17 |
| 1 | LTRBRASF_6B6C-0112-0 LED_RGB_2525_LTRBRASF_6B6C-0112-0 OSRAM | LED_RGB_2525Metric_LTRBRASF | D5 |
| 5 | UCLAMP3301H.TCT Semtech | SOD-523 | D6, D21, D23, D24, D25 |
| 2 | ESD2CAN24DBZRQ1 Texas Instruments | SC70-3 | D7, D19 |
| 4 | TPD2E009DRTR TPD2E009_SOT-9X3 Texas Instruments | SOT-723 | D8, D11, D12, D28 |
| 2 | PESD5Z5.0F PESD5Z5_0F Nexperia | SOD-523 | D10, D14 |
| 3 | RB521S30T1G ON Semiconductor | SOD-523 | D13, D20, D22 |
| 1 | MM3Z3V3C ON Semiconductor | D_SOD-323F | D18 |
| 2 | BLM18HE152SN1D FB_1k5Z_0.5A_Murata-BLM18HE_0603 Murata | FB_0603_1608Metric | FB1, FB2 |
| 1 | SRP2510TMA-R22M L_220n_5.9A_1008 Bourns | L_1008_2520Metric | L1 |
| 66 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C1, C2, C3, C4, C5, C6, C7, C8 +58 |
| 9 | GRM155R61A475MEAAD C_4u7_0402 Murata | C_0402_1005Metric | C12, C13, C43, C66, C67, C92, C95, C98 +1 |
| 25 | C1005X6S1A105K050BC C_1u_0402 TDK | C_0402_1005Metric | C14, C16, C18, C30, C36, C56, C57, C58 +17 |
| 2 | C1005X5R1A225K050BC C_2u2_0402 TDK | C_0402_1005Metric | C20, C21 |
| 2 | CL05C180JB51PNC C_18p_0402 Samsung Electro-Mechanics | C_0402_1005Metric | C22, C23 |
| 9 | CC0402MRX5R5BB106 C_10u_0402 YAGEO | C_0402_1005Metric | C28, C47, C76, C81, C82, C88, C89, C90 +1 |
| 1 | 0402B471K250CT C_470p_0402 Walsin | C_0402_1005Metric | C29 |
| 1 | CC0402KRX5R6BB224 C_220n_0402 YAGEO | C_0402_1005Metric | C49 |
| 2 | 04025A330FAT2A C_33p_0402 KYOCERA AVX | C_0402_1005Metric | C68, C70 |
| 1 | C0402C121J5GACTU C_120p_100V_0402 KEMET | C_0402_1005Metric | C87 |
| 2 | CGA2B3X7S2A472K050BB C_4n7_0402 TDK | C_0402_1005Metric | C94, C97 |
| 73 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R1, R2, R3, R4, R5, R6, R7, R8 +65 |
| 38 | CR0402-FX-1002GLF R_10k_0402 Bourns | R_0402_1005Metric | R11, R12, R24, R31, R32, R33, R34, R36 +30 |
| 6 | CR0402-FX-1501GLF R_1k5_0402 Bourns | R_0402_1005Metric | R14, R35, R52, R53, R55, R57 |
| 2 | CR0402-FX-1004GLF R_1M_0402 Bourns | R_0402_1005Metric | R16, R135 |
| 2 | CR0402-FX-2700GLF R_270R_0402 Bourns | R_0402_1005Metric | R22, R23 |
| 2 | CR0402-FX-1212GLF R_12k1_0402 Bourns | R_0402_1005Metric | R26, R82 |
| 4 | CR0402-FX-49R9GLF R_49R9_0402 Bourns | R_0402_1005Metric | R27, R28, R29, R30 |
| 11 | CR0402-FX-33R0GLF R_33R_0402 Bourns | R_0402_1005Metric | R37, R38, R39, R60, R71, R112, R113, R114 +3 |
| 5 | CR0402-FX-5101GLF R_5k1_0402 Bourns | R_0402_1005Metric | R61, R73, R76, R116, R118 |
| 4 | CR0402-FX-1001GLF R_1k_0402 Bourns | R_0402_1005Metric | R62, R81, R136, R143 |
| 5 | CR0402-FX-4700GLF R_470R_0402 Bourns | R_0402_1005Metric | R64, R67, R70, R80, R117 |
| 1 | CR0402-FX-1000GLF R_100R_0402 Bourns | R_0402_1005Metric | R68 |
| 10 | ERJ-2RKF8873X R_887k_0402 Panasonic | R_0402_1005Metric | R84, R85, R86, R87, R88, R89, R95, R96 +2 |
| 1 | CR0402-FX-3302GLF R_33k_0402 Bourns | R_0402_1005Metric | R102 |
| 1 | CR0402-FX-8202GLF R_82k_0402 Bourns | R_0402_1005Metric | R103 |
| 1 | CR0402-FX-2001GLF R_2k_0402 Bourns | R_0402_1005Metric | R127 |
| 1 | CR0805-FX-0R10ELF R_0R1_0805 Bourns | R_0805_2012Metric | R144 |
| 1 | CR0402-FX-4533GLF R_453k_0402 Bourns | R_0402_1005Metric | R146 |
| 1 | RC0402BR-07100KL R_100k_0.1%_0402 YAGEO | R_0402_1005Metric | R147 |
| 1 | CR0402-FX-1202GLF R_12k_0402 Bourns | R_0402_1005Metric | R149 |
| 5 | CR0402-FX-2201GLF R_2k2_0402 Bourns | R_0402_1005Metric | R151, R165, R167, R168, R175 |
| 4 | CR0402-FX-60R4GLF R_60R4_0402 Bourns | R_0402_1005Metric | R156, R157, R161, R162 |
Stm32h7-renode reference platform design files
The KiCad project lives in the antmicro/stm32h7-renode-reference-platform repository on GitHub; these links point at the commit this page was built from.
Stm32h7-renode reference platform: common questions
What microcontroller does the Stm32h7-renode reference platform use?
The Stm32h7-renode reference platform is built around the STM32H753XIH6TR, from the STM32 family.
How big is the Stm32h7-renode reference platform PCB?
The Stm32h7-renode reference platform measures 100 × 60 mm, has 6 copper layers and is 1.63 mm thick.
How many components are on the Stm32h7-renode reference platform?
380 components, from 79 distinct parts. The full bill of materials is listed on this page.
Where can I download the Stm32h7-renode reference platform design files?
From the antmicro/stm32h7-renode-reference-platform repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Stm32h7-renode reference platform design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
Can I test firmware for the Stm32h7-renode reference platform without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
