Invaders PCB layout, top view — open source AVR/Arduino board by anyahelene

About the Invaders PCB

Invaders is an open source AVR/Arduino PCB design by anyahelene, published on GitHub. It is a 2-layer board measuring 127 × 88.9 mm, with 53 components from 40 distinct parts.

Its main chip is the ATmega328P-PU, from the AVR/Arduino family. Other key parts include the LTC3525-5 and 74LVC1G04. By type, the board carries 14 capacitors, 10 switches, 9 resistors, 5 diodes, 3 ICs and 3 connectors.

It belongs with the displays & leds and retro computing designs in this gallery.

From the project

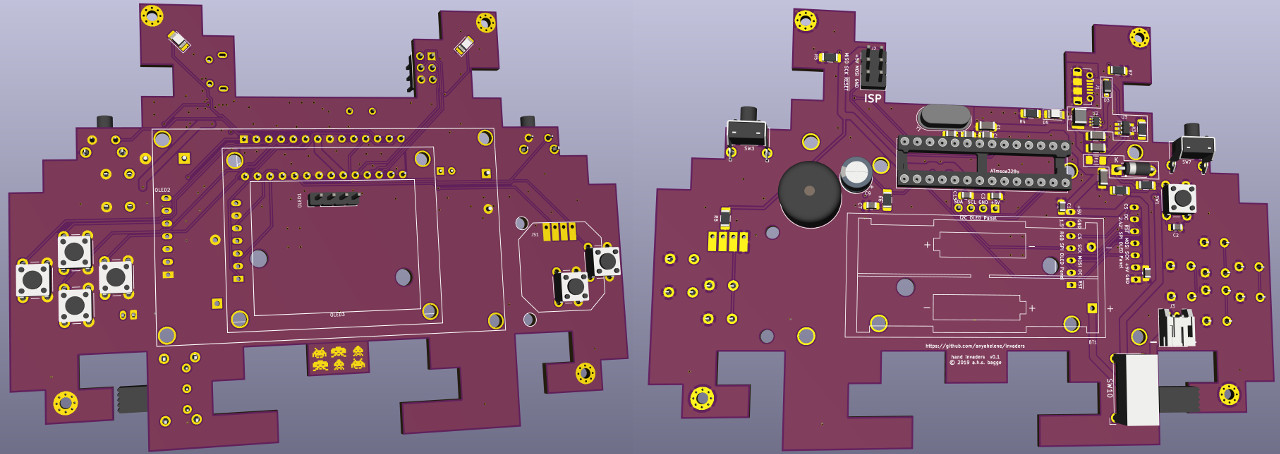

A hand-held retro console

Invaders, from the project README
From the project README

Main components on the Invaders

ATmega328P-PULTC3525-574LVC1G04

Invaders bill of materials (BOM)

53 components, 40 distinct parts.

QtyPartRefs
1
ATmega328P-PU
U1
1
LTC3525-5
U2
1
74LVC1G04
U3
1
16 MHz
Y1
1
USB_B_Micro
J1
1
ISP
J2
1
Batt_In
J3
1
2xAAA
BT1
1
1206L050
F1
1
Thumbstick
JS1
1
Speaker
LS1
1
Reset
SW1
1
D_Left
SW2
1
Trig_Left
SW3
1
D_Up
SW4
1
D_Down
SW5
1
D_Right
SW6
1
Trig_Right
SW7
1
A
SW8
1
B
SW9
Show 20 more
QtyPartRefs
1
SW_SPDT
SW10
1
OLED_1in3
OLED1
1
OLED_2in42
OLED2
1
OLED_1in5_RGB
OLED3
1
0.35V
D3
1
5.1V
D4
3
LED
D5, D6, D7
1
10µH
L1
1
1.0µF
C1
3
0.1µF
C2, C4, C13
3
.1µF
C3, C12, C14
2
1µF
C5, C8
1
22µF
C6
1
0.1 µ
C7
1
100µF
C9
2
22pF
C10, C11
3
10k
R1, R3, R9
1
1k
R2
4
330
R4, R5, R7, R8
1
150R
R6

Invaders design files

The KiCad project lives in the anyahelene/invaders repository on GitHub; these links point at the commit this page was built from.

Invaders: common questions

What microcontroller does the Invaders use?

The Invaders is built around the ATmega328P-PU, from the AVR/Arduino family.

How big is the Invaders PCB?

The Invaders measures 127 × 88.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Invaders?

53 components, from 40 distinct parts. The full bill of materials is listed on this page.

Where can I download the Invaders design files?

From the anyahelene/invaders repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Invaders design in my own project?

The repository has no license, so all rights stay with anyahelene. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Invaders without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
