6-channel nrf24l01-transmitter

Aritra607·6-channel-nrf24l01-transmitter

6-channel nrf24l01-transmitter PCB layout, top view — open source AVR/Arduino board by Aritra607

About the 6-channel nrf24l01-transmitter PCB

6-channel nrf24l01-transmitter is an open source AVR/Arduino PCB design by Aritra607, published on GitHub. It is a 2-layer board measuring 124.3 × 39.5 mm, with 11 components from 8 distinct parts.

Its main chip is the Arduino_Nano_ESP32, from the AVR/Arduino family. Other key parts include the NRF24L01_Breakout, COM-09032 and AMS1117. By type, the board carries 4 ICs, 2 switches, 2 capacitors, 1 module, 1 diode and 1 resistor.

It belongs with the rf & radio, robotics & motion and iot & wireless designs in this gallery.

From the project

A professional 6-channel wireless RC transmitter using Arduino Nano and nRF24L01+ RF module for remote control of drones, robots, and RC vehicles.

A professional 6-channel wireless RC transmitter using Arduino Nano and nRF24L01+ RF module for remote control of drones, robots, and RC vehicles.

The system provides precision analog control with reliable 2.4 GHz wireless communication.

The transmitter is built around the Arduino Nano platform with nRF24L01+ RF module for robust wireless communication.

6-Channel Control: Full 6-axis control for complex RC applications 2.4 GHz Communication: nRF24L01+ module with 100+ meter range (with antenna) Low Latency: 250 kbps data rate for responsive control Precision Input: 8-bit resolution (0-255)…

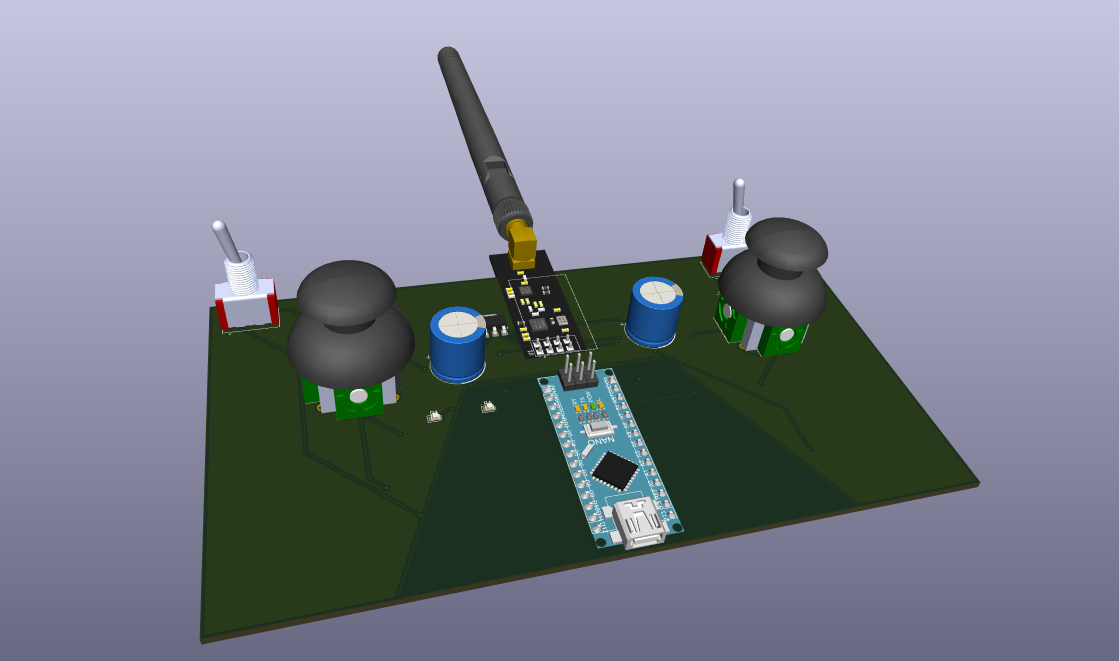

6-channel nrf24l01-transmitter, from the project README
From the project README

Main components on the 6-channel nrf24l01-transmitter

NRF24L01_BreakoutCOM-09032AMS1117Arduino_Nano_ESP32

6-channel nrf24l01-transmitter bill of materials (BOM)

11 components, 8 distinct parts.

QtyPartRefs
1
NRF24L01_Breakout
U1
2
COM-09032
U2, U3
1
AMS1117
U4
1
Arduino_Nano_ESP32
A1
2
100SP1T1B1M1QEH
S1, S2
1
LED
D1
2
C_Polarized
C1, C2
1
330
R1

6-channel nrf24l01-transmitter design files

The KiCad project lives in the Aritra607/6-channel-nrf24l01-transmitter repository on GitHub; these links point at the commit this page was built from.

6-channel nrf24l01-transmitter: common questions

What microcontroller does the 6-channel nrf24l01-transmitter use?

The 6-channel nrf24l01-transmitter is built around the Arduino_Nano_ESP32, from the AVR/Arduino family.

How big is the 6-channel nrf24l01-transmitter PCB?

The 6-channel nrf24l01-transmitter measures 124.3 × 39.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 6-channel nrf24l01-transmitter?

11 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the 6-channel nrf24l01-transmitter design files?

From the Aritra607/6-channel-nrf24l01-transmitter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 6-channel nrf24l01-transmitter design in my own project?

The repository has no license, so all rights stay with Aritra607. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 6-channel nrf24l01-transmitter without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
