Quiver PDB 01
About the Quiver PDB 01 PCB
Quiver PDB 01 is an open source PCB design by Arrow-air, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 240 × 120 mm, with 33 components from 25 distinct parts.
Other key parts include the CPC1002NTR and 178.6165.0002. By type, the board carries 21 connectors, 7 resistors, 4 ICs and 1 relay.
It belongs with the robotics & motion designs in this gallery.
From the project
Project Quiver documentation, designs, and project artifacts.

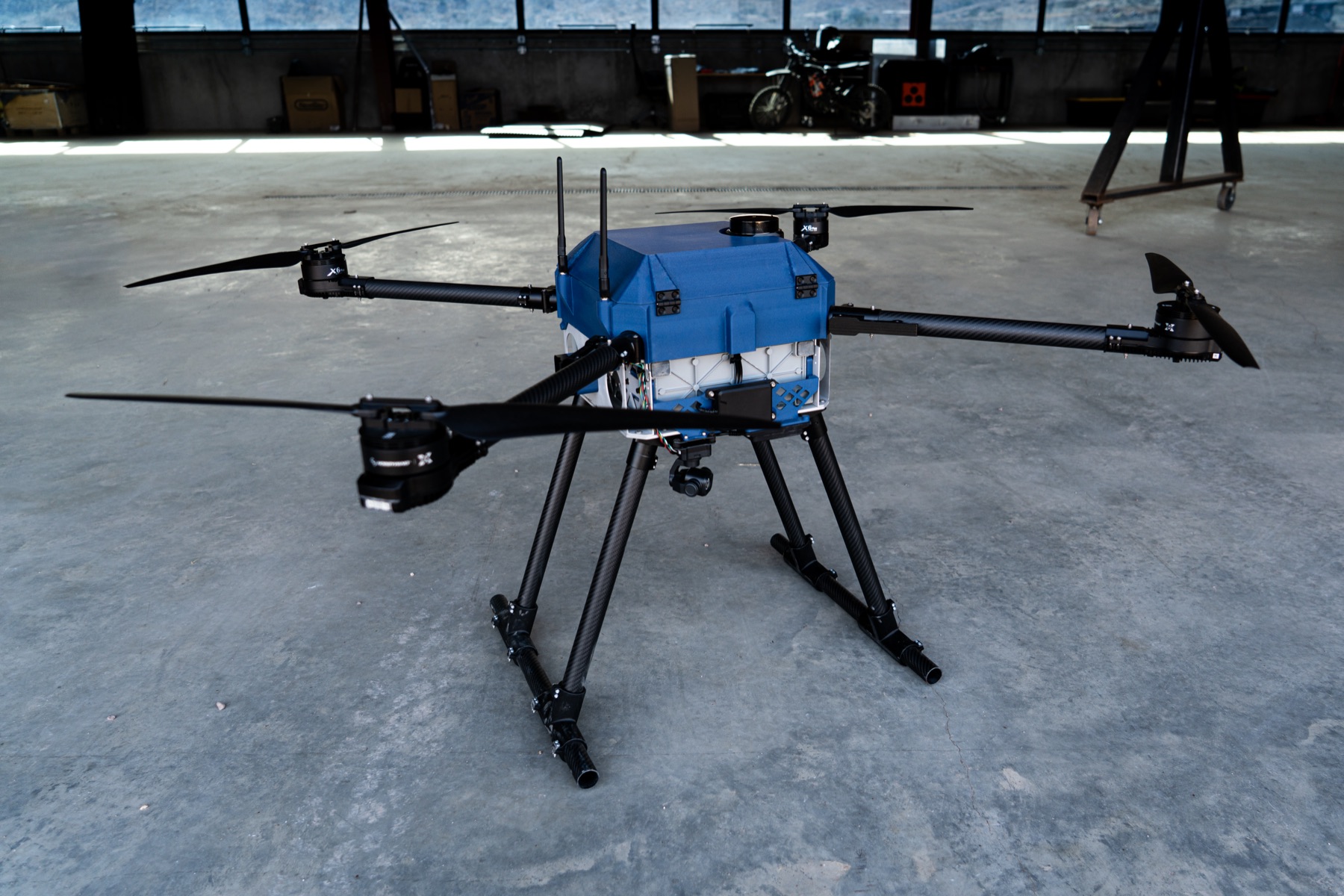

An open-source, modular quadcopter platform for developers and operators.
Project Quiver is a 25 kg MTOW drone with 5-8 kg payload capacity, three hot-swappable attachment interfaces, and a distributed electronics architecture. Built for reliability, field serviceability, and customization.
Developed by Arrow Air and released under the CERN Open Hardware Licence.
Main components on the Quiver PDB 01
Quiver PDB 01 bill of materials (BOM)
33 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CPC1002NTR | SOP254P610X216-4N | IC1 |
| 2 | 178.6165.0002 | 17861650002 | U1, U2 |
| 1 | 178.6165.0002 PRE_F | 17861650002 | U3 |
| 1 | RPI_5_WITH_SSQ-120-01-F-D XT30PW-F | XT30PW-F_AMASS_XT30PW-F | J1 |
| 4 | 39512-1002 | SHDRRA2W80P0X381_1X2_901X920X730P | J2, J7, J9, J11 |
| 2 | 39512-1004 | SHDRRA4W80P0X381_1X4_1663X920X730P | J3, J8 |
| 1 | 39512-1005 39512-1006 | 395121006 | J4 |
| 1 | 39512-1005 39512-1010 | 395121010 | J5 |
| 1 | 39512-1005 39512-1007 | 395121007 | J6 |
| 2 | 7460408 | 7460408 | J10, J12 |
| 1 | SSQ-120-01-F-D FCPDB | PDB_2 | J13 |
| 1 | XT30PW-F XT60PW-M | XT60PW-M_AMASS_XT60PW-M | J14 |
| 1 | SM04B-GHS-TB_LF__SN_ XT60PW-M | XT60PW-M_AMASS_XT60PW-M | J15 |
| 1 | 1778719 XT60PW-M | XT60PW-M_AMASS_XT60PW-M | J16 |
| 1 | XT60PW-M | XT60PW-M_AMASS_XT60PW-M | J17 |
| 1 | 39512-1005 39512-1005_M1 | 395121005 | J18 |
| 1 | 39512-1005 39512-1005_M2 | 395121005 | J19 |
| 1 | 39512-1005 39512-1005_M3 | 395121005 | J20 |
| 1 | 39512-1005 39512-1005_M4 | 395121005 | J21 |
| 1 | CPC1114N | SOP254P610X218-4N | K1 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1K5 1R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 1 | 100K 1R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
| 1 | 100R 12K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
| 3 | PWR163S-25-50R0F 150R | PWR163S2550R0F | R4, R5, R6 |
| 1 | 10K 12K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7 |
Quiver PDB 01 design files
The KiCad project lives in the Arrow-air/project-quiver repository on GitHub; these links point at the commit this page was built from.
Quiver PDB 01: common questions
How big is the Quiver PDB 01 PCB?
The Quiver PDB 01 measures 240 × 120 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Quiver PDB 01?
33 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Quiver PDB 01 design files?
From the Arrow-air/project-quiver repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Quiver PDB 01 design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which Arrow-air chose for the repository.
