Practica1ArturoBuganza
About the Practica1ArturoBuganza PCB
Practica1ArturoBuganza is an open source PCB design by ArturoBuganza, published on GitHub. It is a board, with 63 components from 15 distinct parts.
Other key parts include the MCP9700A and MAX232. By type, the board carries 25 resistors, 10 jumpers, 9 diodes, 8 switches, 5 capacitors and 2 ICs.
It belongs with the sensors designs in this gallery.
From the project
Primera practica laboratorio de microcontroladores.

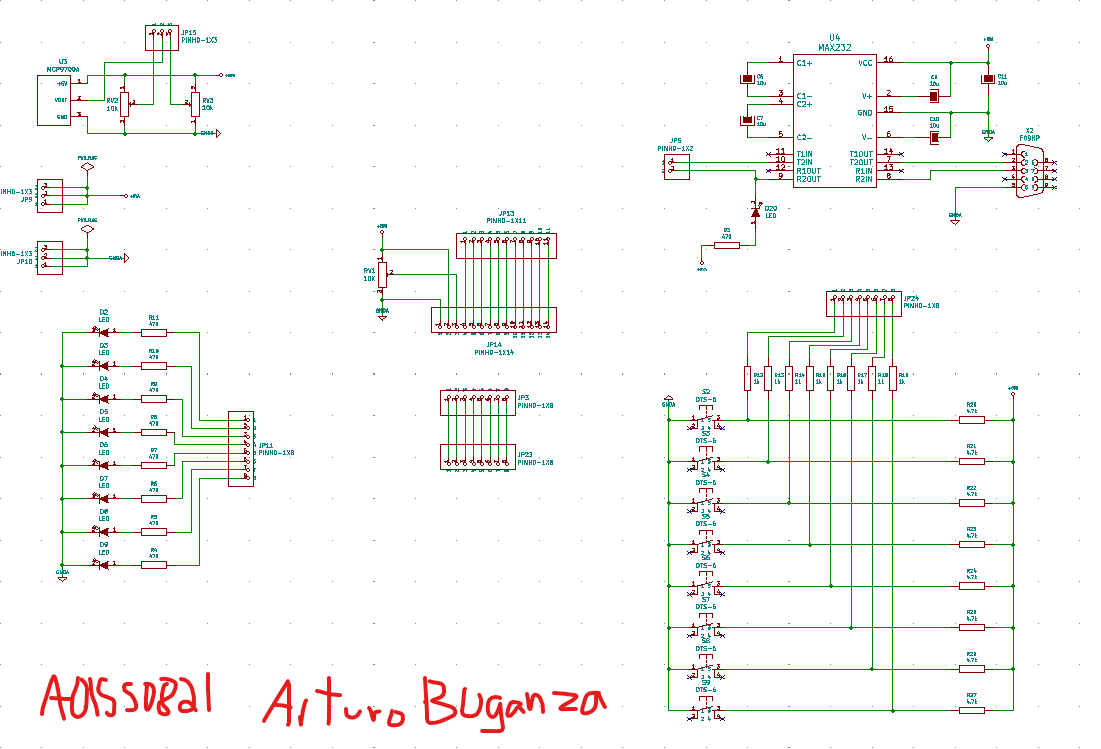

The student will make the schematic design of a minimum card system, which he/she will work with throughout the semester. The minimum system contains following elements: potentiometer and thermistor ICs, serial port, power connector, LCD , push buttons, LEDs, and keyboard connections. The students will use the design software ‘Kicad’ for the entire design (schematic and layout.)
Main components on the Practica1ArturoBuganza
Practica1ArturoBuganza bill of materials (BOM)
63 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP9700A | U3 | |
| 1 | MAX232 | U4 | |
| 1 | F09HP | con-subd-F09HP | X2 |
| 4 | PINHD-1X8 | pinhead-1X08 | JP3, JP11, JP23, JP24 |
| 1 | PINHD-1X2 | pinhead-1X02 | JP5 |
| 3 | PINHD-1X3 | pinhead-1X03 | JP9, JP10, JP15 |
| 1 | PINHD-1X11 | pinhead-1X11 | JP13 |
| 1 | PINHD-1X14 | pinhead-1X14 | JP14 |
| 3 | 10k | RV1, RV2, RV3 | |
| 8 | DTS-6 | switch-tact-DTS-6 | S2, S3, S4, S5, S6, S7, S8, S9 |
| 9 | LED | D2, D3, D4, D5, D6, D7, D8, D9 +1 | |
| 5 | 10u | C6, C7, C9, C10, C11 | |
| 9 | 470 | R3, R4, R5, R6, R7, R8, R9, R10 +1 | |
| 8 | 1k | R12, R13, R14, R15, R16, R17, R18, R19 | |
| 8 | 4.7k | R20, R21, R22, R23, R24, R25, R26, R27 |
Practica1ArturoBuganza design files
The KiCad project lives in the ArturoBuganza/Practica1ArturoBuganza repository on GitHub; these links point at the commit this page was built from.
- SchematicP1Arturo.sch
- NetlistP1Arturo.net
Practica1ArturoBuganza: common questions
How many components are on the Practica1ArturoBuganza?
63 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Practica1ArturoBuganza design files?
From the ArturoBuganza/Practica1ArturoBuganza repository on GitHub, which has the schematic and a netlist; the links under Design files point to each one.
Can I use the Practica1ArturoBuganza design in my own project?
The repository has no license, so all rights stay with ArturoBuganza. Use it as a reference, and ask the author before reusing the design.
