AZ80 CPU

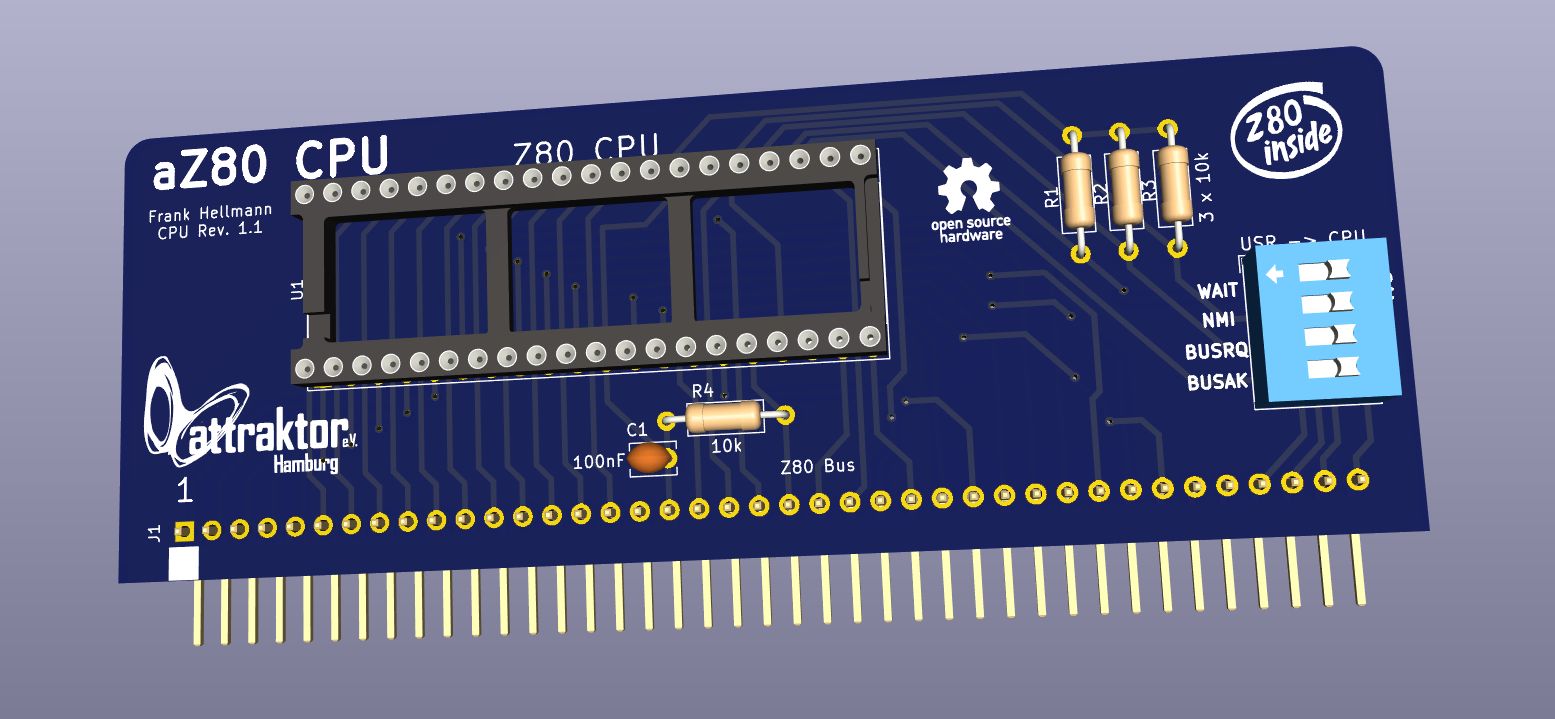

About the AZ80 CPU PCB
AZ80 CPU is an open source PCB design by attraktorhh, published on GitHub under the MIT license. It is a 2-layer board measuring 110.3 × 40 mm, with 7 components from 7 distinct parts.
Other key parts include the Z80CPU. By type, the board carries 4 resistors, 1 IC, 1 connector and 1 capacitor.
From the project
Die CPU Platine ist das Hirn des aZ80 Retro Computers und verarbeitet die Daten.
Die CPU Platine ist das Hirn des aZ80 Retro Computers und verarbeitet die Daten.
Der Switch ist normalerweise in allen Positionen auf Off gestellt und erlaubt in Zukunft weiteren Karten die Steuerung der CPU.
- 1 - WAIT - 2 - NMI - 3 - BUSRQ - 4 - BUSAK
Das WAIT Signal hält die CPU an und wird aktuell nur beim Betrieb der SN76489 Soundkarte genutzt. Diese ist so langsam, dass sie die CPU anhalten muss, bis der nächste Befehl gesendet werden darf.
Main components on the AZ80 CPU
AZ80 CPU bill of materials (BOM)
7 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Z80CPU | DIP-40_W15.24mm_Socket_LongPads | U1 |
| 1 | Z80 Bus | PinHeader_1x40_P2.54mm_Horizontal | J1 |
| 1 | 10UF 100nF | C_Disc_D3.8mm_W2.6mm_P2.50mm | C1 |
| 1 | 10K 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 1 | 22K 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
| 1 | 3 x 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
AZ80 CPU design files
The KiCad project lives in the attraktorhh/aZ80_Computer repository on GitHub; these links point at the commit this page was built from.
AZ80 CPU: common questions
How big is the AZ80 CPU PCB?
The AZ80 CPU measures 110.3 × 40 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AZ80 CPU?
7 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the AZ80 CPU design files?
From the attraktorhh/aZ80_Computer repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the AZ80 CPU design in my own project?
Yes, under the terms of its MIT license, which attraktorhh chose for the repository.
