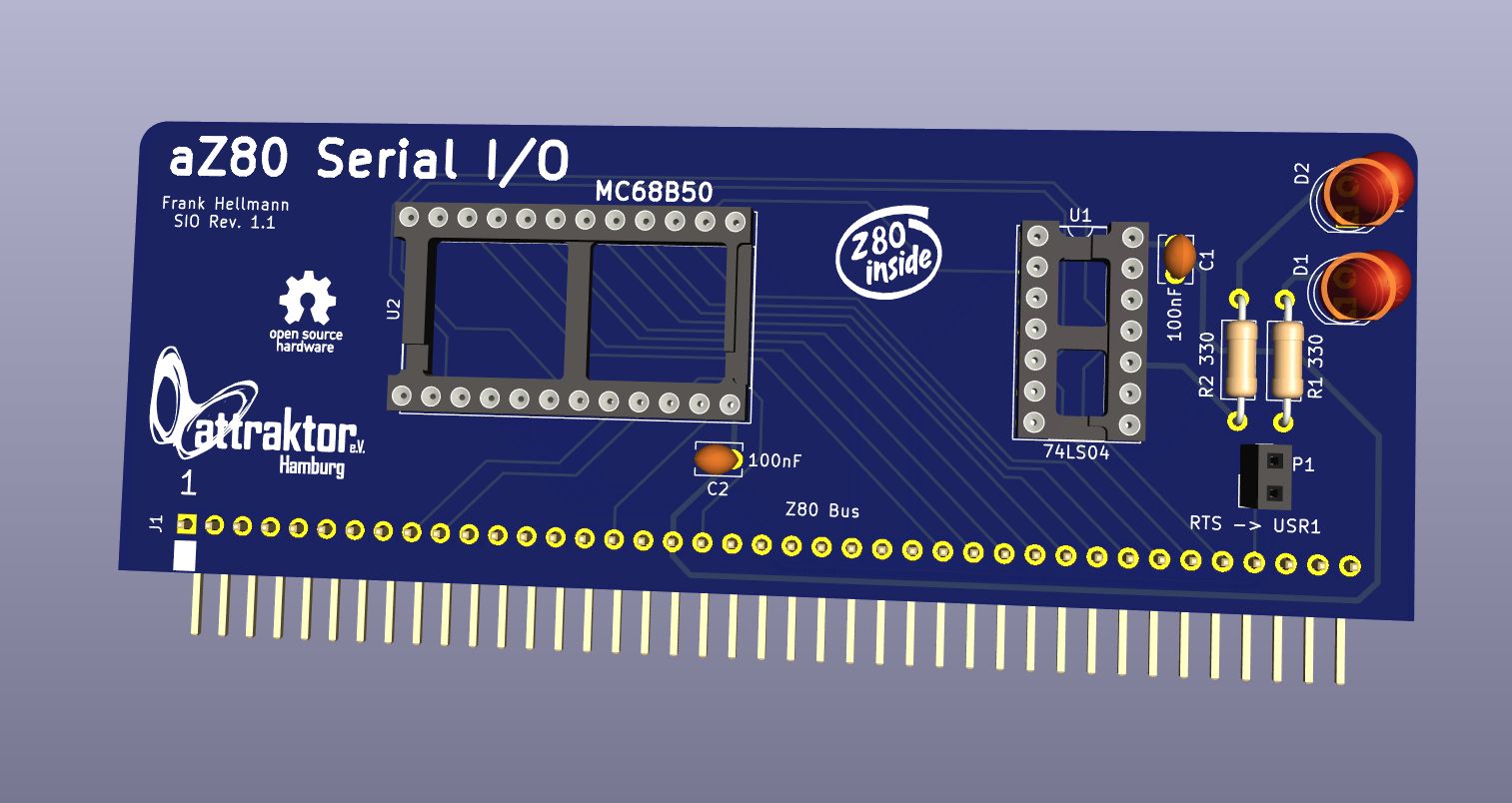

AZ80 SIO
About the AZ80 SIO PCB
AZ80 SIO is an open source PCB design by attraktorhh, published on GitHub under the MIT license. It is a 2-layer board measuring 110.3 × 40 mm, with 10 components from 10 distinct parts.
Other key parts include the 74LS04 and MC68B50. By type, the board carries 2 ICs, 2 diodes, 2 capacitors, 2 resistors, 1 connector and 1 jumper.
From the project
Die serielle Platine stellt über eine serielle Schnittstelle die Verbindung zur Aussenwelt her. Diese Schnittstelle wird über die Busplatine an deren Anschluß J1 zur Verfügung gestellt. Dort kann man dann ein seriell zu USB Wandlerkabel anschließen und mit einem Computer als Term
Die serielle Platine stellt über eine serielle Schnittstelle die Verbindung zur Aussenwelt her. Diese Schnittstelle wird über die Busplatine an deren Anschluß J1 zur Verfügung gestellt. Dort kann man dann ein seriell zu USB Wandlerkabel anschließen und mit einem Computer als Terminal Ersatz verbinden. Hierbei ist auf die Pinbelegung zu achten, da diese nicht wirklich genormt ist.
Main components on the AZ80 SIO
AZ80 SIO bill of materials (BOM)
10 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS04 | DIP-14_W7.62mm_Socket_LongPads | U1 |
| 1 | MC68B50 | DIP-24_W15.24mm_Socket_LongPads | U2 |
| 1 | Z80 Bus | PinHeader_1x40_P2.54mm_Horizontal | J1 |
| 1 | RTS -> USR1 | PinSocket_1x02_P2.54mm_Vertical | JP1 |
| 1 | SS14 TX | LED_D5.0mm | D1 |
| 1 | RX | LED_D5.0mm | D2 |
| 1 | 10UF 100nF | C_Disc_D3.8mm_W2.6mm_P2.50mm | C1 |
| 1 | 100nF | C_Disc_D3.8mm_W2.6mm_P2.50mm | C2 |
| 1 | 10K 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 1 | 22K 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
AZ80 SIO design files
The KiCad project lives in the attraktorhh/aZ80_Computer repository on GitHub; these links point at the commit this page was built from.
AZ80 SIO: common questions
How big is the AZ80 SIO PCB?
The AZ80 SIO measures 110.3 × 40 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AZ80 SIO?
10 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the AZ80 SIO design files?
From the attraktorhh/aZ80_Computer repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the AZ80 SIO design in my own project?
Yes, under the terms of its MIT license, which attraktorhh chose for the repository.
