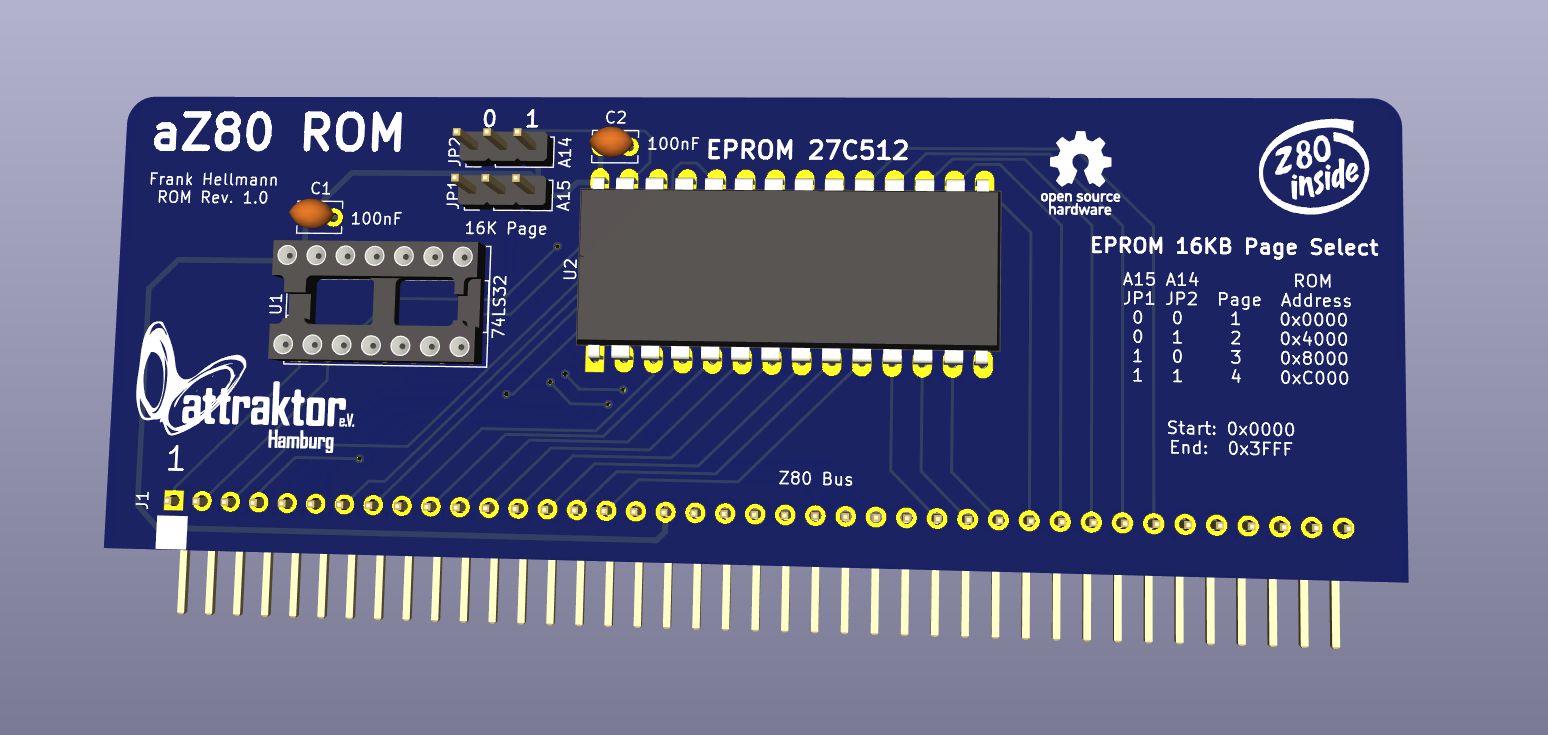

AZ80 ROM
About the AZ80 ROM PCB
AZ80 ROM is an open source PCB design by attraktorhh, published on GitHub under the MIT license. It is a 2-layer board measuring 110.3 × 40 mm, with 7 components from 7 distinct parts.
Other key parts include the 74LS32 and EPROM 27C512. By type, the board carries 2 ICs, 2 jumpers, 2 capacitors and 1 connector.
From the project
Die ROM Platine stellt dem aZ80 Retro System den nichtflüchtigen Speicher zur Verfügung.
Die ROM Platine stellt dem aZ80 Retro System den nichtflüchtigen Speicher zur Verfügung.
Der 32KB große Speicherbaustein (EEPROM) ist in 4 8KB große Teile (Bänke/Pages) aufgeteilt.
Das ROM wird im ersten Speicherbereich eingeblendet ($0000 - $3FFF) und enthält auch die Interrupt Vectoren.
Über die Jumper JP1 und JP2 kann der 8KB Teil des ROMs eingestellt werden, der dem aZ80 zur Verfügung gestellt werden soll.
Main components on the AZ80 ROM
AZ80 ROM bill of materials (BOM)
7 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS32 | DIP-14_W7.62mm_Socket_LongPads | U1 |
| 1 | EPROM 27C512 | DIP-28_W15.24mm_LongPads | U2 |
| 1 | Z80 Bus | PinHeader_1x40_P2.54mm_Horizontal | J1 |
| 1 | A15 | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | A14 | PinHeader_1x03_P2.54mm_Vertical | JP2 |
| 1 | 10UF 100nF | C_Disc_D3.8mm_W2.6mm_P2.50mm | C1 |
| 1 | 100nF | C_Disc_D3.8mm_W2.6mm_P2.50mm | C2 |
AZ80 ROM design files
The KiCad project lives in the attraktorhh/aZ80_Computer repository on GitHub; these links point at the commit this page was built from.
AZ80 ROM: common questions
How big is the AZ80 ROM PCB?
The AZ80 ROM measures 110.3 × 40 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AZ80 ROM?
7 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the AZ80 ROM design files?
From the attraktorhh/aZ80_Computer repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the AZ80 ROM design in my own project?
Yes, under the terms of its MIT license, which attraktorhh chose for the repository.
