About the AZ80 DIO PCB
AZ80 DIO is an open source PCB design by attraktorhh, published on GitHub under the MIT license. It is a 2-layer board measuring 110.3 × 58.3 mm, with 49 components from 20 distinct parts.
Other key parts include the 74LS374, 74LS245 and 74LS138. By type, the board carries 17 resistors, 14 diodes, 8 switches, 4 connectors, 3 ICs and 3 capacitors.
From the project

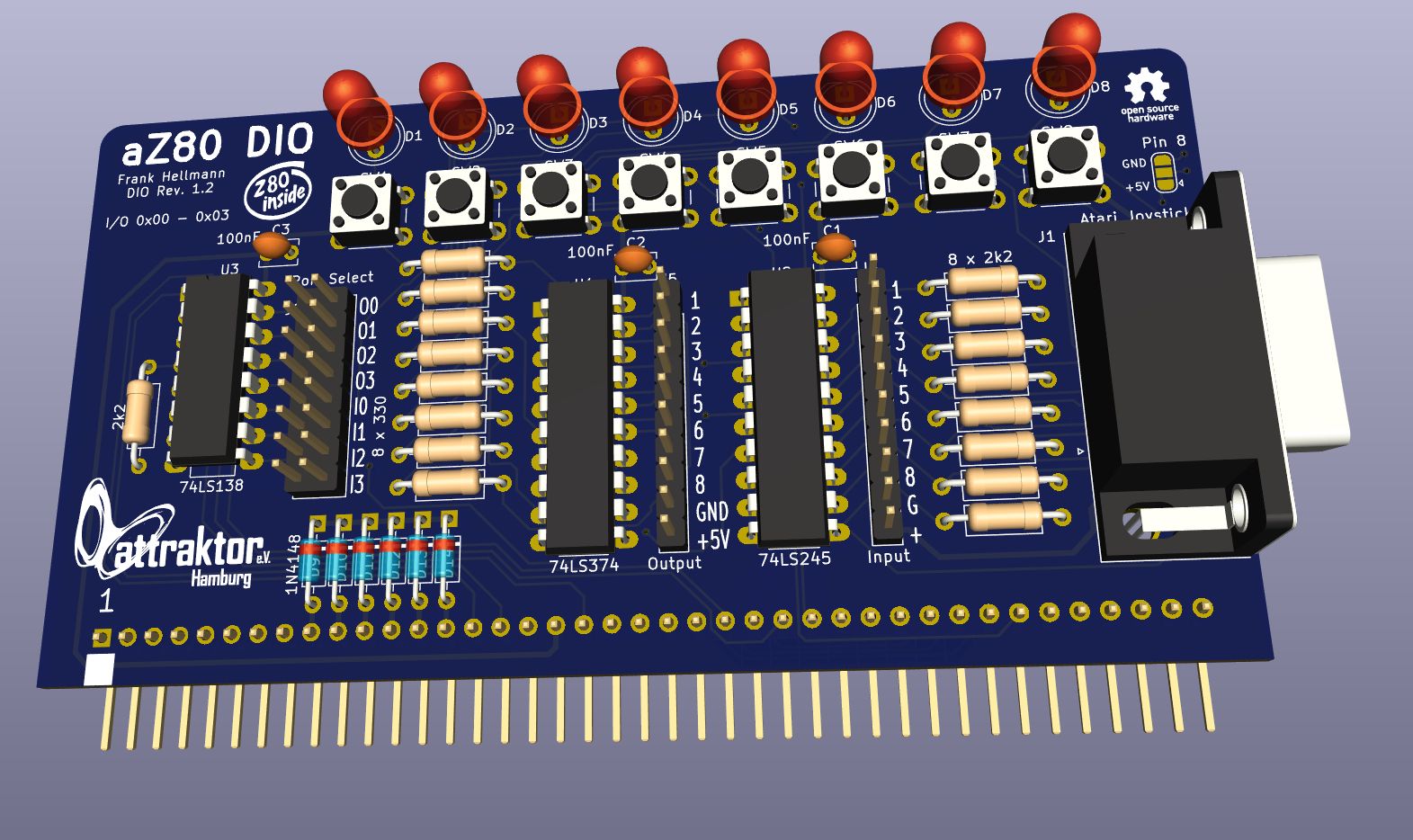

Die DIO (Digital I/O) Platine stellt über Taster, Joystick Anschluss und LEDs eine Verbindung zur Aussenwelt her.
Die DIO (Digital I/O) Platine stellt über Taster, Joystick Anschluss und LEDs eine Verbindung zur Aussenwelt her.
Über den Jumperblock JP1 kann die Adresse (Port) eingestellt werden, auf den die DIO Platine reagieren soll. Normalerweise ist dort O0 und I0 gesteckt, was bedeutet, dass die DIO Platine auf Addresse 0 beim Lesen und Schreiben reagiert. Damit können auch mehrere Karten in einem aZ80 System genutzt werden, wenn alle Karten unterschiedliche Addressen bekommen.
Main components on the AZ80 DIO
AZ80 DIO bill of materials (BOM)
49 components, 20 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS374 | DIP-20_W7.62mm_LongPads | U1 |
| 1 | 74LS245 | DIP-20_W7.62mm_LongPads | U2 |
| 1 | 74LS138 | DIP-16_W7.62mm_LongPads | U3 |
| 1 | C22750565 Port Select | PinHeader_2x08_P2.54mm_Vertical | J2 |
| 1 | Z80 Bus | PinHeader_1x40_P2.54mm_Horizontal | J4 |
| 1 | Output | PinHeader_1x10_P2.54mm_Vertical | J5 |
| 1 | Input | PinHeader_1x10_P2.54mm_Vertical | J6 |
| 1 | C221872 SW_Push | SW_PUSH_6mm | SW1 |
| 1 | C226259 SW_Push | SW_PUSH_6mm | SW2 |
| 6 | SW_Push | SW_PUSH_6mm | SW3, SW4, SW5, SW6, SW7, SW8 |
| 1 | SS14 LED_Small | LED_D5.0mm | D1 |
| 7 | LED_Small | LED_D5.0mm | D2, D3, D4, D5, D6, D7, D8 |
| 6 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D9, D10, D11, D12, D13, D14 |
| 1 | 10UF 100nF | C_Disc_D3.8mm_W2.6mm_P2.50mm | C1 |
| 2 | 100nF | C_Disc_D3.8mm_W2.6mm_P2.50mm | C2, C3 |
| 1 | 10K 8 x 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 1 | 22K 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
| 6 | 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3, R4, R5, R6, R7, R8 |
| 1 | 8 x 2k2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R9 |
| 8 | 2k2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R10, R11, R12, R13, R14, R15, R16, R17 |
