Notemplate PCB layout, top view — open source AVR/Arduino board by au-ts

About the Notemplate PCB

Notemplate is an open source AVR/Arduino PCB design by au-ts, published on GitHub. It is a 2-layer board measuring 27.6 × 13.8 mm, with 64 components from 53 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the TPS54202DDC, PC847, TPS563200DDCR and ACS71240LLCBTR-030B3. By type, the board carries 13 connectors, 13 capacitors, 11 resistors, 6 diodes, 5 ICs and 3 fuses.

It belongs with the robotics & motion, power & battery and sensors designs in this gallery.

From the project

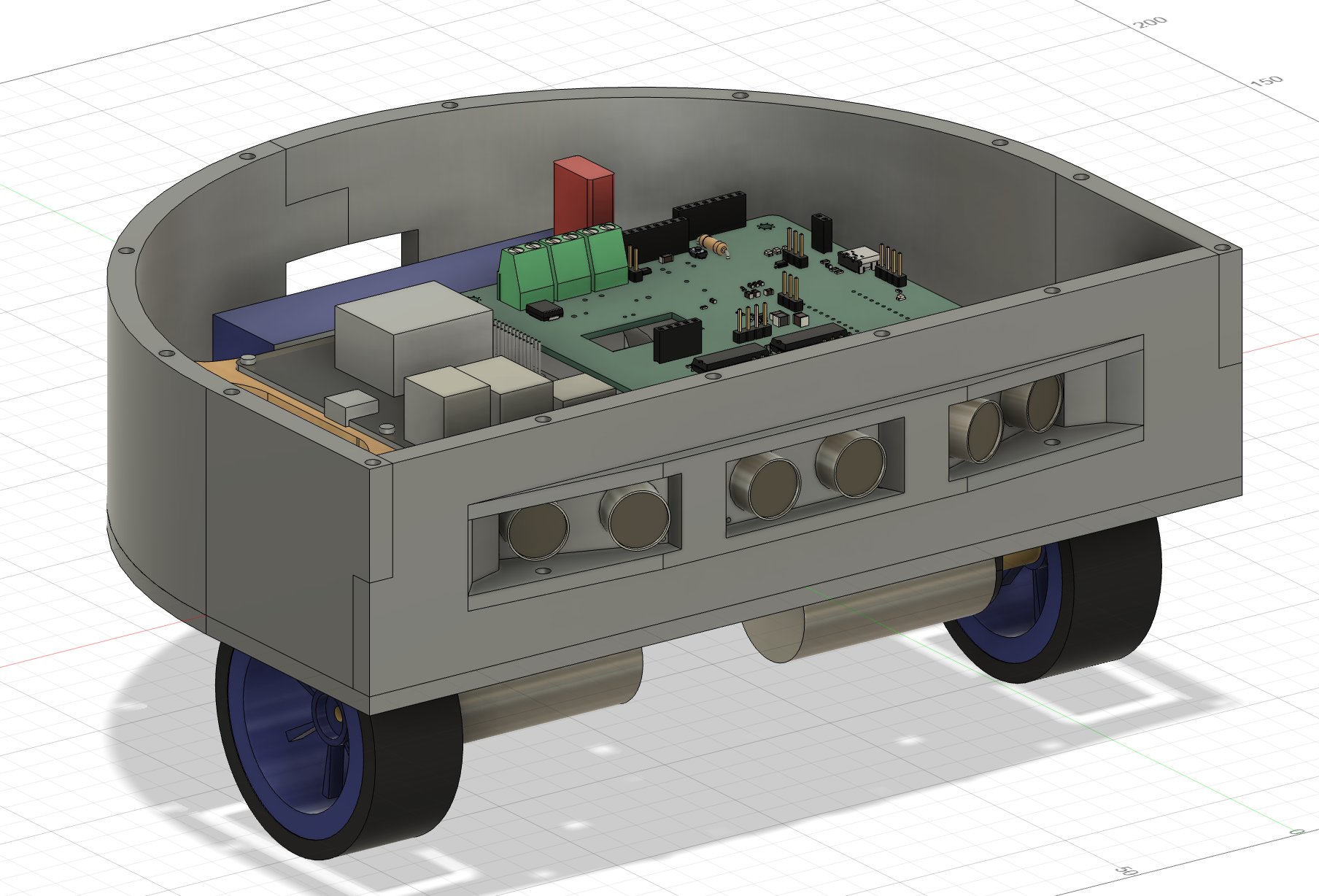

Robot for testing real-time features for LionsOS. CAD+EDA.

This repository contains the CAD for the LionsOS robot, that is: 1. The KiCad v7 files for the power PCB, including the production files such as gerbers, pick and place files and the bill of materials (BoM). 2. A freeze of the Fusion360 CAD files for the chassis..

IF YOU ARE ASSEMBLING A BOARD make sure you check the errata. Some minor changes are required for rev 2.0.

Notemplate, from the project README
From the project README

Main components on the Notemplate

TPS54202DDCPC847TPS563200DDCRACS71240LLCBTR-030B3Arduino_Nano_v3.x

Notemplate bill of materials (BOM)

64 components, 53 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS54202DDC
U1
2
PC847
U2, U3
1
TPS563200DDCR
U4
1
ACS71240LLCBTR-030B3
U5
1
Arduino_Nano_v3.x
A1
1
Motor control
J1
1
Balance
J2
1
SBC power 5V pins
J3
1
SafetyBuzzer_Alarm
J4
1
Power control
J5
1
SPI debug
J7
1
MCU UART
J8
1
Motor driver
J9
1
C2927039
Connector, USB-TYPE-C-16P
J10
1
Bat_in
J11
1
Motor PWR 1
J12
1
Motor PWR 2
J13
1
Power test
J15
1
0031.8201
F1
1
2016L300/16MR
F2
Show 33 more
QtyPartRefs
1
C163516
3A
F4
1
DSP1A-L2-DC5V
K2
7
3.6kΩ
UNI-ROYAL(Uniroyal Elec)
RL1, RL2, RL3, RL4, RL5, RL6, RL7
1
471005264152
S1
1
C720477
Safety reset
XUNPU
S2
1
1N4001W
hongjiacheng
D1
1
S10JC
hongjiacheng
D2
1
C2296
Yellow
Hubei KENTO Elec
D3
1
C2297
Green
Hubei KENTO Elec
D4
1
C2286
Red
Hubei KENTO Elec
D5
1
C84256
Red
Foshan NationStar Optoelectronics
D7
1
VLS6045EX-2R2N
L1
1
C3002561
4.7u
L2
1
100UF
100uF
Samsung Electro-Mechanics
C1
1
10UF
10uF
Samsung Electro-Mechanics
C2
3
22UF
22uF
Samsung Electro-Mechanics
C3, C4, C5
1
56P
56p
C6
1
47U
47u
C7
1
100NF
100nF
YAGEO
C8
2
10UF
10uF
Samsung Electro-Mechanics
C9, C10
1
100NF
100nF
YAGEO
C11
1
100NF
100nF
Samsung Electro-Mechanics
C12
1
22UF
22uF
Samsung Electro-Mechanics
C13
1
10Ω
UNI-ROYAL(Uniroyal Elec)
R1
2
10kΩ
UNI-ROYAL(Uniroyal Elec)
R2, R3
1
10kΩ
UNI-ROYAL(Uniroyal Elec)
R4
1
470
R6
1
510kΩ
UNI-ROYAL(Uniroyal Elec)
R7
1
100kΩ
UNI-ROYAL(Uniroyal Elec)
R8
1
22kΩ
UNI-ROYAL(Uniroyal Elec)
R9
1
68kΩ
UNI-ROYAL(Uniroyal Elec)
R10
1
10kΩ
UNI-ROYAL(Uniroyal Elec)
R11
1
33kΩ
UNI-ROYAL(Uniroyal Elec)
R12
