Cam Hat Case Study layout, top view — open source Microchip SAM board by auxren

About the Cam Hat Case Study

Cam Hat Case Study is an open source Microchip SAM PCB design by auxren, published on GitHub under the MIT license. It is a 2-layer board measuring 65 × 30 mm, with 42 components from 27 distinct parts.

Its main chip is the ATSAMD11D14A-MUT, from the Microchip SAM family. Other key parts include the TPS22969DNYT, TLV62568ADRL, 90131-0780, VCNL4200 and TPD4E05U06DQA. By type, the board carries 16 resistors, 13 capacitors, 6 ICs, 3 inductors, 2 connectors and 1 transistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This was from a 72hr design challenge / case study for an interview for a Senior Electrical Engineering Role.

This was from a 72hr design challenge / case study for an interview for a Senior Electrical Engineering Role.

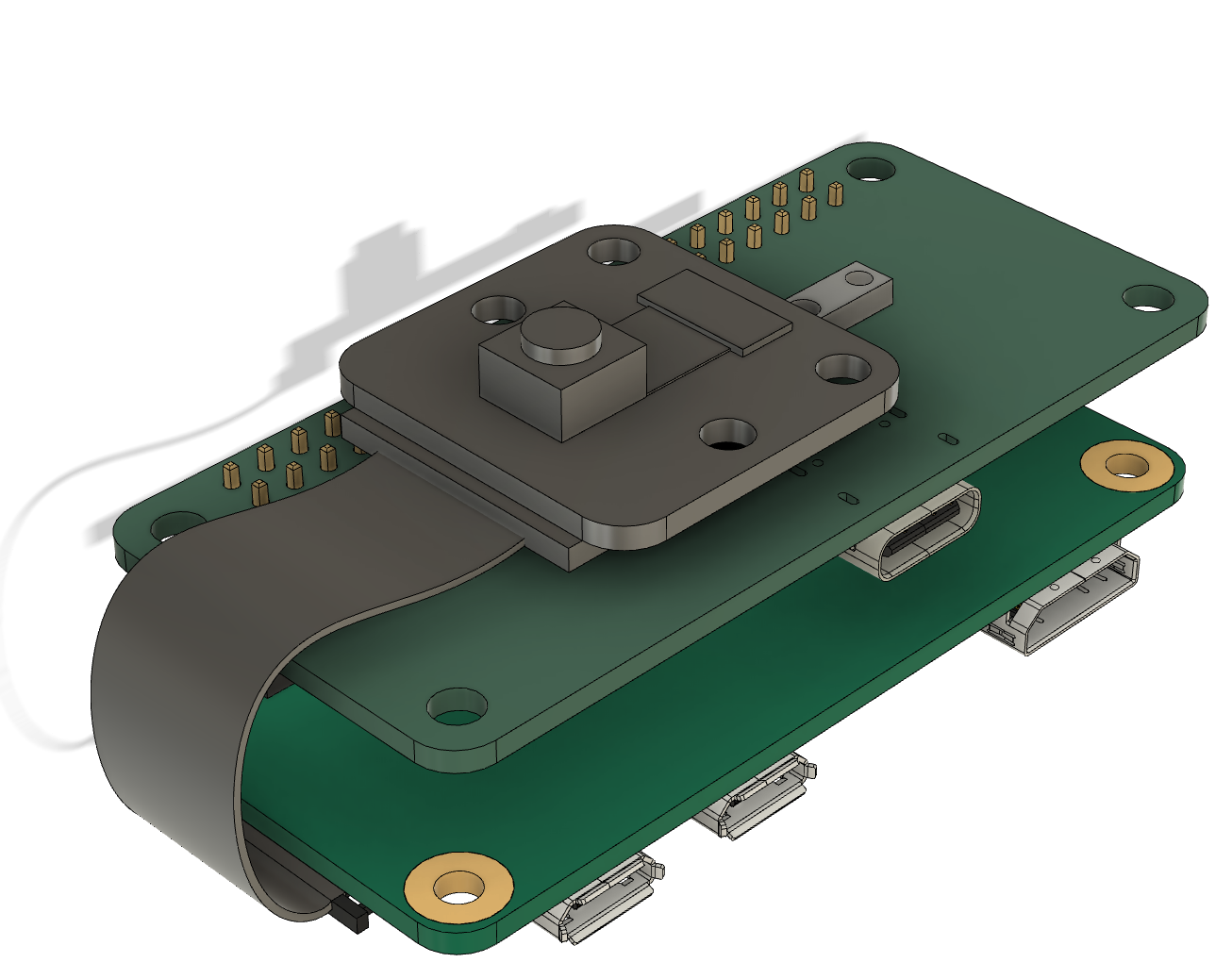

- Camera Module: Integrate the IMX219 camera module (IQL-IMX219/FF). = Motion Detection: Integrate a suitable PIR motion sensor to detect motion to trigger the camera. - Lighting Adjustment: Integrate a suitable ambient light sensor that will be later used to adjust camera settings based on lighting conditions. - Power Supply: Design a power supply circuit to ensure stable operation. Choose and justify the power management components used. Use at least one switching regulator in your…

Cam Hat Case Study, from the project README
From the project README

Main components on the Cam Hat Case Study

TPS22969DNYTATSAMD11D14A-MUTTLV62568ADRL90131-0780VCNL4200TPD4E05U06DQA

Cam Hat Case Study bill of materials (BOM)

42 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS22969DNYT
IC201
1
ATSAMD11D14A-MUT
IC601
1
TLV62568ADRL
U301
1
90131-0780
Raspberry Pi Zero 2 W
U401
1
VCNL4200
U501
1
TPD4E05U06DQA
U601
1
SI2319CDS
Si2319CDS
Q501
1
UJ32-C-H-G-SMT-6-P24
USB_C_Receptacle_USB2.0_14P
J601
1
Conn_ARM_JTAG_SWD_10
J602
1
PESD5V0S1UL
D601
2
MPZ1005S330HT000
FerriteBead
FB601, FB602
1
LQM2HPN1R0MG0
1uH
L301
2
GRM158R61A226ME15J
22uF
C201, C303
1
04023D105KAT2A
1uF
C202
3
0402YD475MAT2A
4.7uF
C301, C601, C603
1
08056D107MAT2A
100uF
C401
1
0603YD106MAT2A
10uF
C402
2
0402X7R104KT7AT
0.1uF
C403, C501
1
0402ZD225MAT2A
2.2uF
C502
2
0402X7R104KT7AT
100nF
C602, C604
Show 7 more
QtyPartRefs
8
CRCW04020000Z0EDC
0
R302, R310, R312, R314, R319, R402, R403, R405
1
CRCW0402453KFKTD
453k
R304
1
ERJ-S02J104X
100k
R305
2
RC0402FR-7D3K3L
3.3k
R401, R404
1
ERA-2ARC272X
2.7k
R501
1
RNCE0402BTE1K00
1k
R502
2
RMC1/16SK5111FTH
5.1 k
R601, R602

Cam Hat Case Study design files

The KiCad project lives in the auxren/Cam_Hat_Case_Study repository on GitHub; these links point at the commit this page was built from.

Cam Hat Case Study: common questions

What microcontroller does the Cam Hat Case Study use?

The Cam Hat Case Study is built around the ATSAMD11D14A-MUT, from the Microchip SAM family.

How big is the Cam Hat Case Study?

The Cam Hat Case Study measures 65 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Cam Hat Case Study?

42 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Cam Hat Case Study design files?

From the auxren/Cam_Hat_Case_Study repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Cam Hat Case Study design in my own project?

Yes, under the terms of its MIT license, which auxren chose for the repository.

Can I test firmware for the Cam Hat Case Study without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Microchip SAM firmware against it before you order a PCB.
