DMGC-PWR-01 2-3
About the DMGC-PWR-01 2-3 PCB
DMGC-PWR-01 2-3 is an open source PCB design by awhit003, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 65 × 15 mm, with 41 components from 22 distinct parts.
Other key parts include the TPS3840, TPS63070RNMR and TPS3702. By type, the board carries 15 resistors, 10 capacitors, 6 transistors, 3 ICs, 1 fuse and 1 jumper.
It belongs with the power & battery designs in this gallery.
From the project

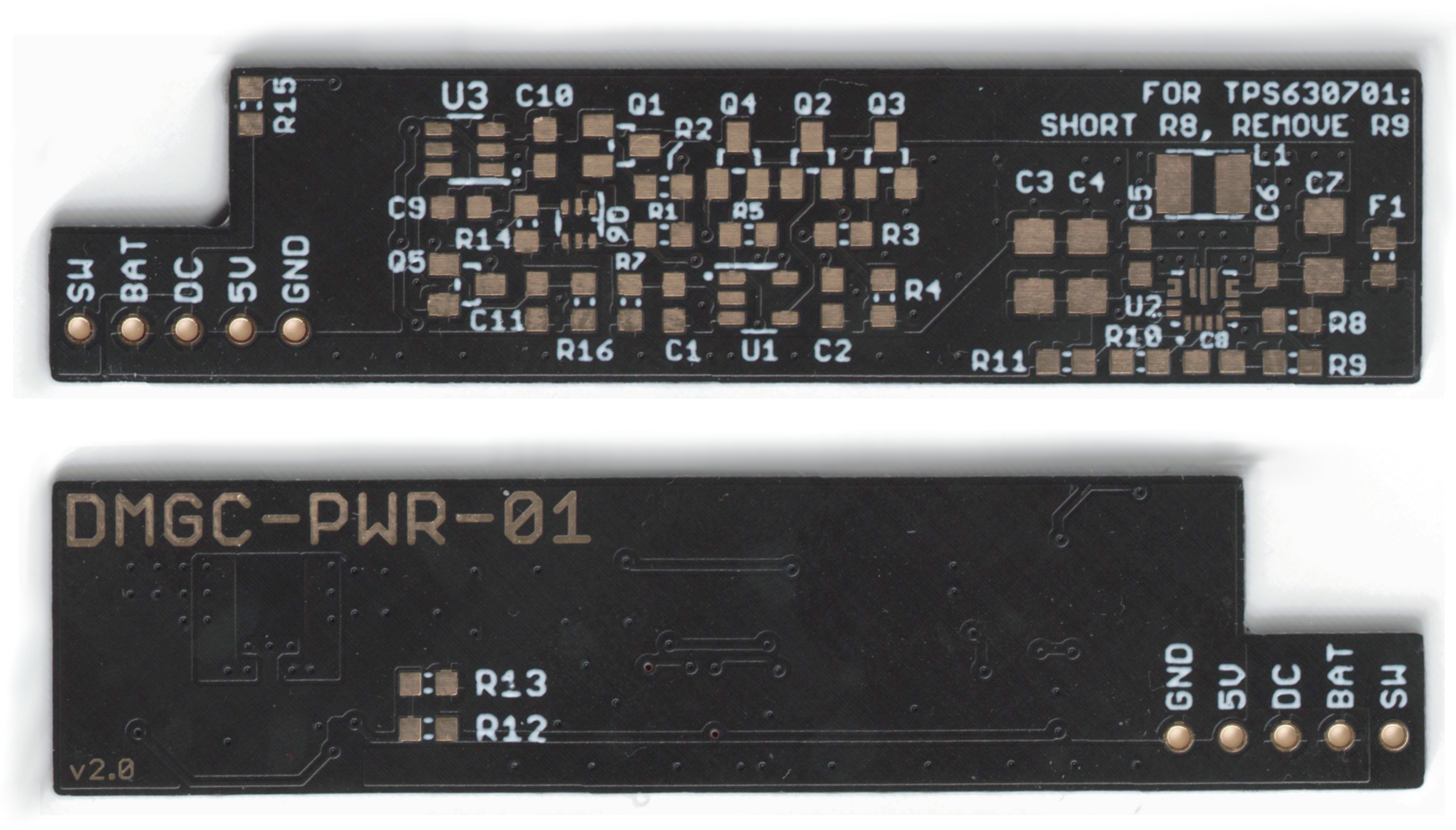

Note: This image shows v2.0. There is minimal difference between this and v2.3.
Note: This image shows v2.0. There is minimal difference between this and v2.3.
The PWR board has gone through a few iterations. Because the system will run with 4x AA batteries or the DC jack input, the range of input voltages is relatively wide - anywhere between ~4 V up to ~8 V, plus margin. The output voltage must be maintained at 5 V. The logical choice would be a buck-boost converter. Thus, the DMGC-PWR-01 utilizes the TPS630702 (or TPS63070 or TPS630701) – a buck-boost converter with only a few external parts required for operation, that accepts anywhere between 2 V and 16 V to…
Main components on the DMGC-PWR-01 2-3
DMGC-PWR-01 2-3 bill of materials (BOM)
41 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS3840 | SOT-23-5 | U1 |
| 1 | TPS63070RNMR | VREG_TPS63070RNMR | U2 |
| 1 | TPS3702 | SOT-23-6 | U3 |
| 1 | MMBT3906LT1SMD | SOT23-BEC | Q1 |
| 3 | 2N7002 | SOT23 | Q2, Q4, Q5 |
| 1 | 3904 | SOT23-BEC | Q3 |
| 1 | SI1401EDH | SOT363_INFINEON | Q6 |
| 1 | 1A | R0603 | F1 |
| 3 | PTR1B1,27 | B1,27 | GND0, UNK5V0, VCC0 |
| 1 | — | JP5 | JP1 |
| 1 | PTR1B1,27 | B1,27 | SW0 |
| 1 | 1.5uH | 1212 | L1 |
| 3 | 10uF | C0603 | C1, C5, C6 |
| 2 | 22uF | C1206 | C3, C4 |
| 1 | 47uF | C1206 | C7 |
| 3 | 100nF | C0603 | C8, C9, C11 |
| 1 | 10nF | C0603 | C10 |
| 7 | 100k | R0603 | R1, R4, R7, R9, R10, R11, R16 |
| 5 | 10k | R0603 | R2, R3, R5, R13, R14 |
| 1 | 523k | R0603 | R8 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 20k | R0603 | R12 |
| 1 | 1k | R0603 | R15 |
DMGC-PWR-01 2-3 design files
The KiCad project lives in the awhit003/DMG-007 repository on GitHub; these links point at the commit this page was built from.
DMGC-PWR-01 2-3: common questions
How big is the DMGC-PWR-01 2-3 PCB?
The DMGC-PWR-01 2-3 measures 65 × 15 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DMGC-PWR-01 2-3?
41 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the DMGC-PWR-01 2-3 design files?
From the awhit003/DMG-007 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the DMGC-PWR-01 2-3 design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which awhit003 chose for the repository.
