Grove - Vision AI Module V2
About the Grove - Vision AI Module V2
Grove - Vision AI Module V2 is an open source PCB design by ayaangrover, published on GitHub. It is a 4-layer board measuring 40 × 20 mm, with 112 components from 38 distinct parts.
Other key parts include the HX6538, CH343P, WR0331-18FF4R, SY80004DQD and W25Q128JWSIQ. By type, the board carries 40 resistors, 36 capacitors, 8 diodes, 6 ICs, 5 transistors and 4 connectors.
It belongs with the keyboards designs in this gallery.
From the project
A hotswappable mechanical keyboard PCB

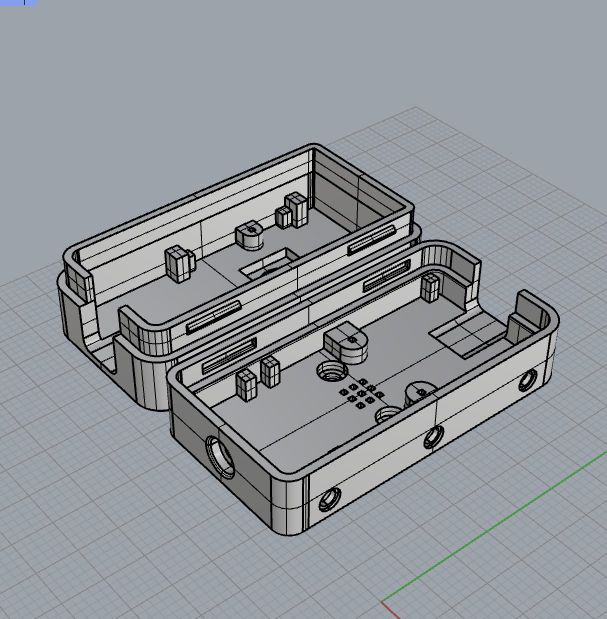

This is the library for Grove Vision AI V2 and its case.
- The case for Grove Vision AI V2 - Himax - Preparatory Work: KiCad Download and Library Download - How to add and use Seeed OPL Footprint Libraries(Grove Vision AI V2) - How to add and use Seeed OPL Symbol Libraries(Grove Vision AI V2) - Scale up Your Creation With Seeed Studio Fusion - Co-Create with Seeed Studio - Resoureces
Main components on the Grove - Vision AI Module V2
Grove - Vision AI Module V2 bill of materials (BOM)
112 components, 38 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | HX6538 | WLCSP65_5.6x2.3x0.56mm | U1 |
| 1 | CH343P | QFN-16-EP_3x3mm_P0.5mm_EP1x1mm | U2 |
| 1 | WR0331-18FF4R | X2SON-4 | U3 |
| 2 | SY80004DQD SILERGY | DFN6-0.5-1.5X1.5X0.65MM | U4, U6 |
| 1 | W25Q128JWSIQ | SOIC-8_5.23x5.23mm_P1.27mm | U5 |
| 1 | XIAO Connector/DNP | XIAO_Socket | M1 |
| 5 | CJ1012 | SOT523 | Q1, Q2, Q3, Q4, Q5 |
| 1 | 24MHz | 4P2016 | X1 |
| 1 | USB_C_Receptacle_USB2.0 | USB2.0-TYPE-C | J1 |
| 1 | Conn_01x15_MountingPin | FPC_DNC_15P_1.0mm | J2 |
| 1 | Conn_01x04_MountingPin | 4P-SMD-2.0mm-RIGHT | J3 |
| 1 | SD-TF-MR267 ST-TF-MR267 商祺电子 | SD-TF-MR267 | J5 |
| 2 | SW_Push | SW_Push_1P1T_NO_Vertical_Wuerth_434133025816 | BOOT1, RST1 |
| 1 | MSM261D3526H1CPM | MIC6P-3.5X2.65X0.94MM | MIC1 |
| 3 | Test Point | TP-D35MIL | TP1, TP2, TP3 |
| 1 | Yellow | LED0402 | LED1 |
| 1 | Green | LED0402 | LED2 |
| 4 | B5819WS | D0805_SOD323 | D1, D2, D3, D4 |
| 4 | DF2S6.8FS DNP | R0402 | D5, D6, D7, D8 |
| 1 | VLS201610HBX-4R7M-1 | L0806 | L1 |
Show 18 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 470nH | L0603 | L2, L3 |
| 5 | 1uF | C0402 | C1, C2, C17, C18, C19 |
| 1 | 10nF | C0402 | C3 |
| 7 | 4.7uF | C0402 | C4, C6, C7, C9, C10, C28, C34 |
| 18 | 100nF | C0402 | C5, C8, C13, C20, C21, C22, C23, C24 +10 |
| 2 | 10uF | C0402 | C11, C37 |
| 2 | 12pF | C0402 | C14, C15 |
| 1 | 220nF | C0402 | C16 |
| 10 | 2.2k | R0402 | R1, R4, R13, R14, R15, R19, R20, R21 +2 |
| 3 | 5.1k | R0402 | R2, R3, R36 |
| 4 | 10k | R0402 | R5, R7, R23, R24 |
| 4 | RC0402JR-074K7L 100K YAGEO | R0402 | R6, R16, R32, R33 |
| 3 | RC0402JR-074K7L 10K YAGEO | R0402 | R8, R31, R38 |
| 7 | DNP | R0402 | R9, R12, R17, R18, R25, R27, R28 |
| 3 | 100k | R0402 | R10, R11, R37 |
| 2 | RC0402JR-074K7L 22K YAGEO | R0402 | R26, R34 |
| 3 | 0R | R0402 | R29, R30, R39 |
| 1 | 510k | R0402 | R35 |
Grove - Vision AI Module V2 design files
The KiCad project lives in the ayaangrover/obsidian-one repository on GitHub; these links point at the commit this page was built from.
Grove - Vision AI Module V2: common questions
How big is the Grove - Vision AI Module V2?
The Grove - Vision AI Module V2 measures 40 × 20 mm, has 4 copper layers and is 1.1962 mm thick.
How many components are on the Grove - Vision AI Module V2?
112 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Grove - Vision AI Module V2 design files?
From the ayaangrover/obsidian-one repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Grove - Vision AI Module V2 design in my own project?
The repository has no license, so all rights stay with ayaangrover. Use it as a reference, and ask the author before reusing the design.
