Hackpad PCB layout, top view — open source RP2040/RP2350 board by AYUSH-pro-grammer

About the Hackpad PCB

Hackpad is an open source RP2040/RP2350 PCB design by AYUSH-pro-grammer, published on GitHub. It is a 2-layer board measuring 95 × 75 mm, with 20 components from 4 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. Other key parts include the DM-OLED096-636. By type, the board carries 9 switches, 9 diodes and 2 ICs.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Hi there! Here is my personal Hack Club macropad.

Hi there! Here is my personal Hack Club macropad.

It is a compact 3x3 keyboard meant for shortcuts, programming and gaming. The keyboard consists of a Seeed XIAO RP2040 microcontroller, OLED screen, and mechanical switches.

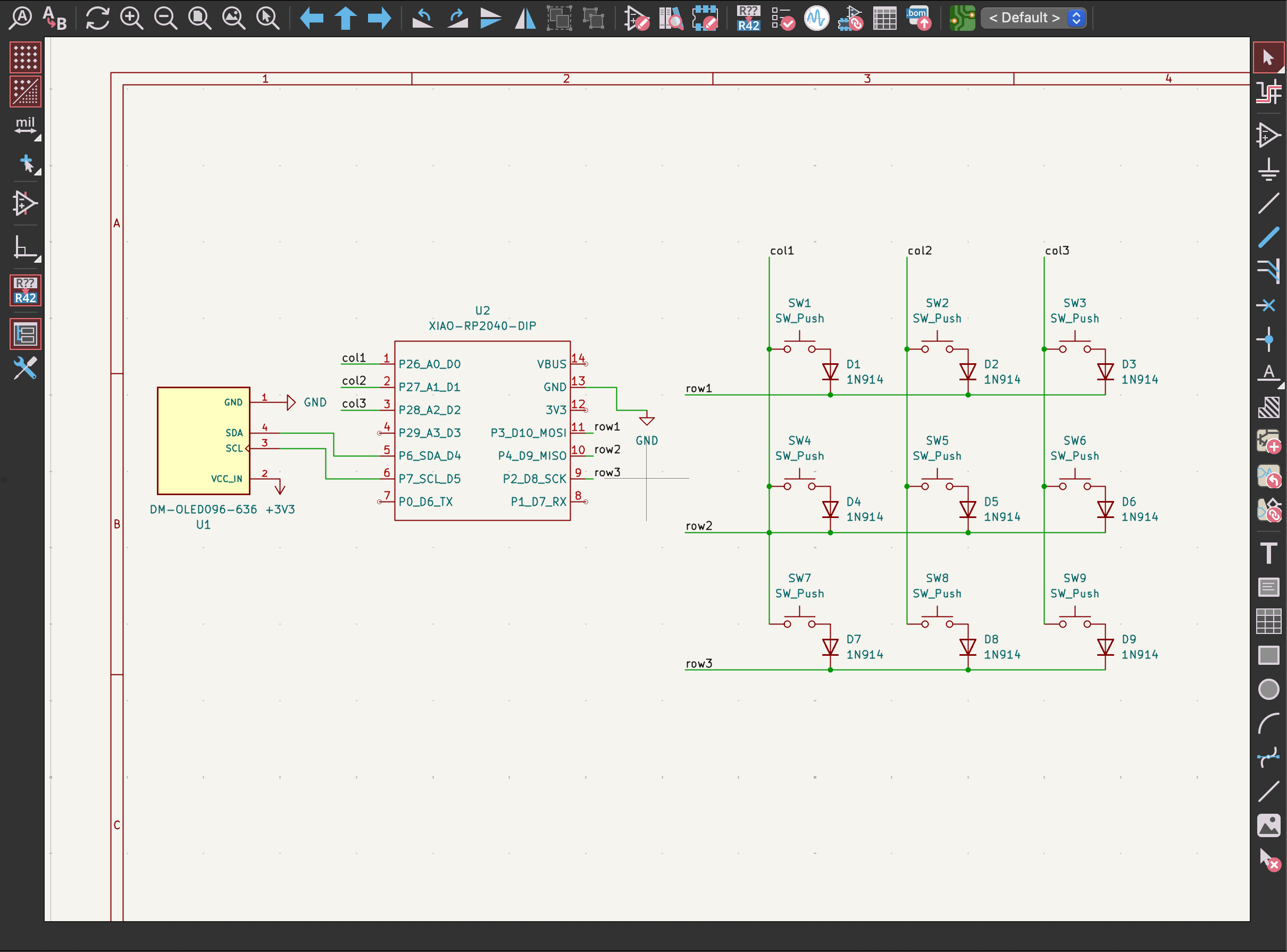

Hackpad, from the project README
From the project README

Main components on the Hackpad

DM-OLED096-636XIAO-RP2040-DIP

Hackpad bill of materials (BOM)

20 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
DM-OLED096-636
U1
1
XIAO-RP2040-DIP
U2
9
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1
9
1N914
D1, D2, D3, D4, D5, D6, D7, D8 +1

Hackpad design files

The KiCad project lives in the AYUSH-pro-grammer/hackpad repository on GitHub; these links point at the commit this page was built from.

Hackpad: common questions

What microcontroller does the Hackpad use?

The Hackpad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Hackpad PCB?

The Hackpad measures 95 × 75 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpad?

20 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hackpad design files?

From the AYUSH-pro-grammer/hackpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hackpad design in my own project?

The repository has no license, so all rights stay with AYUSH-pro-grammer. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Hackpad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
