Split keyboard PCB layout, top view — open source RP2040/RP2350 board by AYUSH-pro-grammer
Simulate this board

About the Split keyboard PCB

Split keyboard is an open source RP2040/RP2350 PCB design by AYUSH-pro-grammer, published on GitHub. It is a 2-layer board measuring 230.5 × 167.5 mm, with 94 components from 5 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the DM-OLED096-636. By type, the board carries 46 switches, 44 diodes, 2 ICs and 2 modules.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

This is a split keyboard. It is divided into 2 parts. I designed it to gain some experience in pcb design, cad modeling and firmware development. It has 22 keys per side, oled display, and rotary encoder.

This is a split keyboard. It is divided into 2 parts. I designed it to gain some experience in pcb design, cad modeling and firmware development. It has 22 keys per side, oled display, and rotary encoder.

I want to design my own keyboard to gain experience in hardware project. I got a lot of useful information about creating schematics, pcb routing, footprints, cad case modeling and file structure on github.

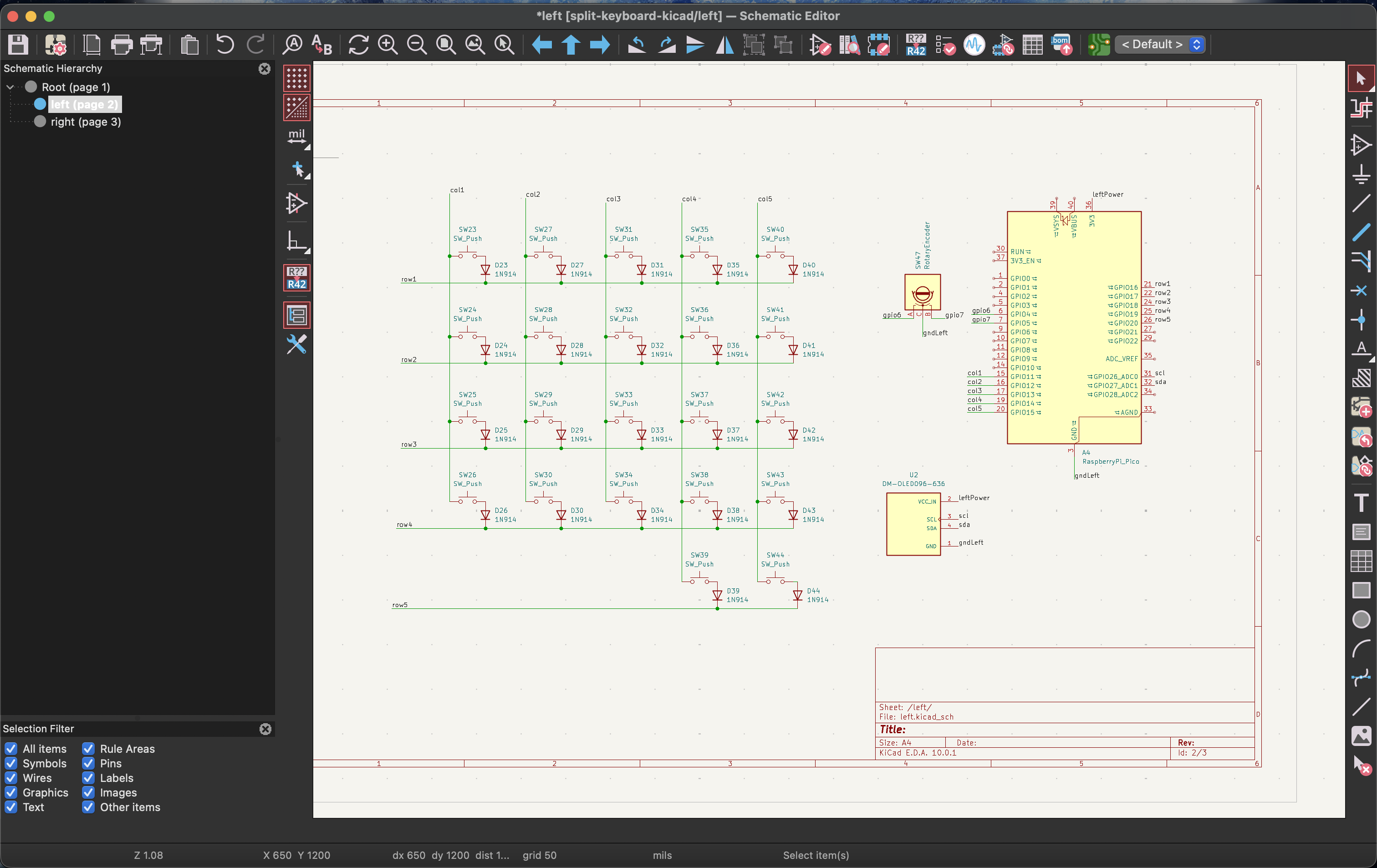

Split keyboard, from the project README
From the project README

Main components on the Split keyboard

DM-OLED096-636RaspberryPi_Pico

Split keyboard bill of materials (BOM)

94 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
DM-OLED096-636
U1, U2
2
RaspberryPi_Pico
A3, A4
44
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +36
2
RotaryEncoder
SW46, SW47
44
1N914
D1, D2, D3, D4, D5, D6, D7, D8 +36

Split keyboard design files

The KiCad project lives in the AYUSH-pro-grammer/split-keyboard repository on GitHub; these links point at the commit this page was built from.

Split keyboard: common questions

What microcontroller does the Split keyboard use?

The Split keyboard is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Split keyboard PCB?

The Split keyboard measures 230.5 × 167.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Split keyboard?

94 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Split keyboard design files?

From the AYUSH-pro-grammer/split-keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Split keyboard design in my own project?

The repository has no license, so all rights stay with AYUSH-pro-grammer. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Split keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
