PCPI AppliCard
About the PCPI AppliCard PCB
PCPI AppliCard is an open source PCB design by baldengineer, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 271.8 × 78.7 mm, with 76 components from 33 distinct parts.
Other key parts include the MK4164-12, SN74LS158N, Z84C0006PEG, 2764 and Z84C3006PEG. By type, the board carries 32 ICs, 30 capacitors, 9 resistors, 2 connectors, 1 transistor and 1 crystal.
It belongs with the retro computing designs in this gallery.
From the project
Project for capturing vintage, classic, aka old computer schematics in KiCad.
This is a clone of the PCPI AppliCard, a Z80 coprocessor card for the Apple II. I've previously captured the Microsoft Softcard, a simpler Z80 board that uses the Apple II's memory. This board has its own 64K (expandable to 192K) connected directly to the Z80 and running at the same speed.

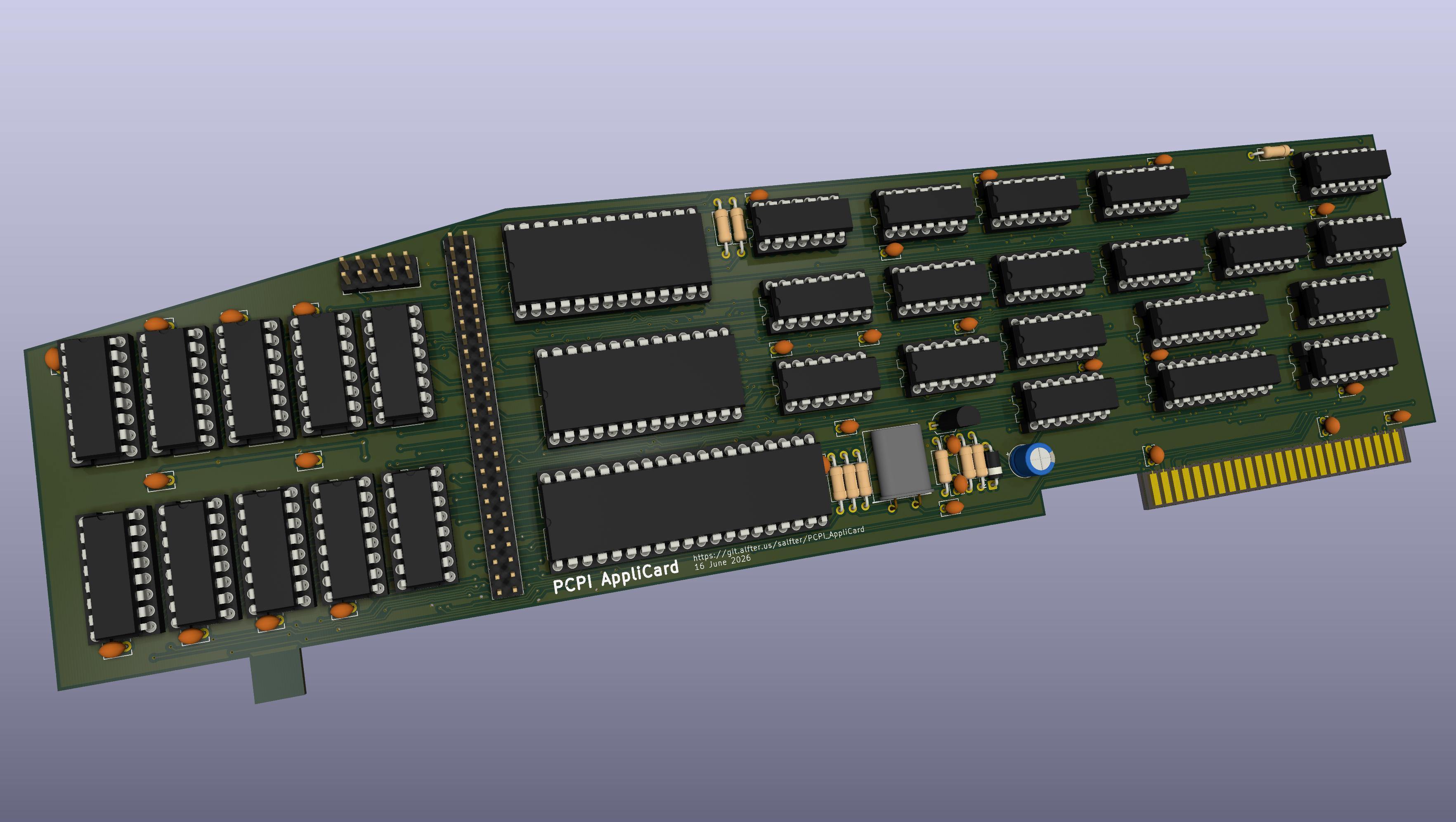

The schematic was captured from published sources. The PCB layout is based on the component layout shown in a photo of the original board, but the connections between components are my own work. The new PCB, like the original, is a 2-layer design.
Main components on the PCPI AppliCard
PCPI AppliCard bill of materials (BOM)
76 components, 33 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | MK4164-12 MK4164 Mostek | DIP-16_W7.62mm | U1, U2, U3, U4, U5, U6, U7, U8 |
| 2 | SN74LS158N Texas Instruments | DIP-16_W7.62mm | U9, U10 |
| 1 | Z84C0006PEG Zilog | DIP-40_W15.24mm | U11 |
| 1 | 2764 | DIP-28_W15.24mm | U12 |
| 1 | Z84C3006PEG Zilog | DIP-28_W15.24mm | U13 |
| 2 | SN74LS04N Texas Instruments | DIP-14_W7.62mm | U14, U19 |
| 2 | SN74LS138N Texas Instruments | DIP-16_W7.62mm | U15, U29 |
| 2 | SN74LS32N Texas Instruments | DIP-14_W7.62mm | U16, U28 |
| 4 | SN74LS74AN Texas Instruments | DIP-14_W7.62mm | U17, U22, U27, U30 |
| 1 | SN74LS00N Texas Instruments | DIP-14_W7.62mm | U18 |
| 1 | SN74121N Texas Instruments | DIP-14_W7.62mm | U20 |
| 1 | SN74LS132N Texas Instruments | DIP-14_W7.62mm | U21 |
| 1 | SN74LS11N Texas Instruments | DIP-14_W7.62mm | U23 |
| 2 | SN74LS374N Texas Instruments | DIP-20_W7.62mm | U24, U25 |
| 1 | SN74LS393N Texas Instruments | DIP-14_W7.62mm | U26 |
| 1 | SN74LS125AN Texas Instruments | DIP-14_W7.62mm | U31 |
| 1 | SN74LS08N Texas Instruments | DIP-14_W7.62mm | U32 |
| 1 | 2N2907A Diotec Semiconductor | TO-92L_Inline_Wide | Q1 |
| 1 | ATS120 12 MHz CTS-Frequency Controls | Crystal_HC49-U_Horizontal | Y1 |
| 1 | PRPC025DAAN-RC Conn_02x25_Counter_Clockwise Sullins Connector Solutions | PinHeader_2x25_P2.54mm_Vertical_Counterclockwise | P2 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PRPC005DAAN-RC Conn_02x05_Counter_Clockwise Sullins Connector Solutions | PinHeader_2x05_P2.54mm_Vertical_Counterclockwise | P3 |
| 1 | 1N4148 onsemi | D_A-405_P7.62mm_Horizontal | CR1 |
| 24 | C315C104M5U5TA7303 0.1 µF KEMET | C_Disc_D3.8mm_W2.6mm_P2.50mm | C1, C2, C3, C4, C5, C6, C7, C8 +16 |
| 1 | C315C103M5U5TA7303 0.01 µF KEMET | C_Disc_D3.8mm_W2.6mm_P2.50mm | C12 |
| 1 | C315C102J1G5TA7301 1000 pF KEMET | C_Disc_D3.8mm_W2.6mm_P2.50mm | C16 |
| 2 | C315C330J1G5TA7303 33 pF KEMET | C_Disc_D3.8mm_W2.6mm_P2.50mm | C17, C31 |
| 1 | ESS107M016AE2EA 100 µF KEMET | CP_Radial_D6.3mm_P2.50mm | C20 |
| 1 | C315C470J1G5TA7301 47 pF KEMET | C_Disc_D3.8mm_W2.6mm_P2.50mm | C25 |
| 3 | MFR-25FRF52-4K7 4.7 kΩ YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3 |
| 1 | MFR-25FRF52-82K 82 kΩ YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
| 2 | MFR-25FRF52-1K 1 kΩ YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R5, R6 |
| 1 | MFR-25FRF52-27R 27 Ω YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R7 |
| 2 | MFR-25FRF52-10K 10 kΩ YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R8, R9 |
PCPI AppliCard design files
The KiCad project lives in the baldengineer/bit-preserve repository on GitHub; these links point at the commit this page was built from.
PCPI AppliCard: common questions
How big is the PCPI AppliCard PCB?
The PCPI AppliCard measures 271.8 × 78.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCPI AppliCard?
76 components, from 33 distinct parts. The full bill of materials is listed on this page.
Where can I download the PCPI AppliCard design files?
From the baldengineer/bit-preserve repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PCPI AppliCard design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which baldengineer chose for the repository.
