About the QO100 RX PCB

QO100 RX is an open source RP2040/RP2350 PCB design by barisdinc, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 97 × 97 mm, with 162 components from 63 distinct parts.

Its main chip is the RP2040_PICO, from the RP2040/RP2350 family. Other key parts include the LM386, LM4562, LM1117-5.0, LM1117-3.3 and MXD8015LL. By type, the board carries 85 capacitors, 36 resistors, 16 inductors, 11 ICs, 7 connectors and 1 crystal.

It belongs with the rf & radio designs in this gallery.

From the project

V/U/SHF and QO-100 SDR Transceiver Project

This project is a SDR receiver transceiver project initiated to have a portable QO-100 Satellite ground station which can receiver on 739 MHz (direct output of a standard TV LNB) and transmit on 2.4 GHz QO-100 uplink frequency. The basic idea of the SDR is based on Arjante Marvelde's implementation of Guido's uSDX implementation on raspberry pi pico (https://github.com/ArjanteMarvelde/uSDR-pico/).

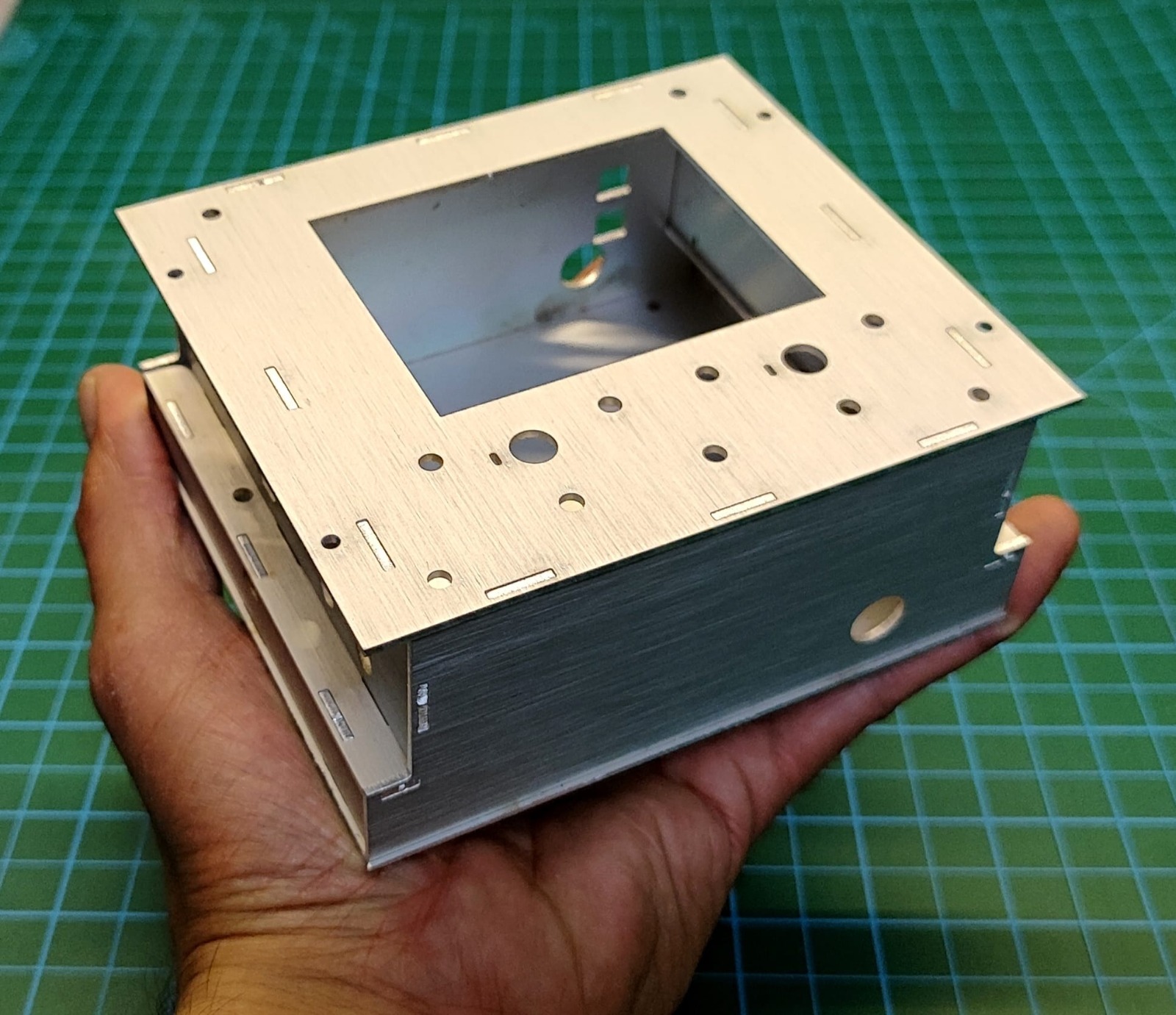

QO100 RX, from the project README
From the project README

Main components on the QO100 RX

RP2040_PICOLM386LM4562LM1117-5.0LM1117-3.3MXD8015LLADF4360-0BCPAD8348ARUZ

QO100 RX bill of materials (BOM)

162 components, 63 distinct parts.

QtyPartRefs
1
RP2040_PICO
U1
1
LM386
U2
3
LM4562
U3, U9, U10
2
LM1117-5.0
U4, U5
1
LM1117-3.3
U6
1
MXD8015LL
U7
1
ADF4360-0BCP
U8
1
AD8348ARUZ
U11
1
10Mhz
Y1
1
PATCH01
J1
1
PATCH02
J2
1
HEADPHONE
J3
1
LNA
J4
1
SMA RF Input
J5
1
SPEAKER
J6
1
ADF4360
J7
1
SF2126E
FL1
3
5k
RV1, RV2, RV3
1
RESET
SW1
1
SS34
D1
Show 43 more
QtyPartRefs
7
100uH
L1, L2, L4, L5, L10, L11, L12
1
33nH
L3
2
100nH
L6, L7
2
8.7nH
L8, L9
2
680nH
L13, L14
2
1.2uH
L15, L16
25
100nF
C1, C2, C3, C5, C6, C8, C9, C18 +17
1
4.7nF
C4
3
4.7uF/16V
C7, C10, C33
8
10nF
C11, C24, C26, C40, C44, C48, C61, C65
2
10uF
C12, C31
2
100pF
C13, C36
11
1nF
C14, C29, C35, C37, C39, C41, C42, C47 +3
3
100uF/16V
C15, C28, C50
5
10uF/16V
C16, C23, C49, C54, C64
3
220pF
C17, C81, C84
5
47nF
C25, C67, C80, C82, C83
1
220uF/16V
C30
1
470pF
C38
1
1.5nF
C43
4
4.7pF
C45, C46, C75, C76
2
1uF
C68, C85
2
820pF
C69, C70
2
82pF
C71, C73
2
150pF
C74, C79
2
8.2pF
C77, C78
3
4.7k
R1, R23, R36
2
12k
R2, R3
2
100k
R4, R5
2
10R
R6, R10
2
1k
R7, R8
1
10k
R9
1
50R
R11
3
200R
R12, R13, R18
1
4k7
R14
3
3.9k
R15, R19, R20
2
2k
R16, R17
4
3.3k
R21, R22, R24, R35
1
57.6R
R25
1
174R
R26
3
100
R27, R28, R30
1
200
R29
4
2
R31, R32, R33, R34

QO100 RX design files

The KiCad project lives in the barisdinc/N3B_SDR_Transceiver_HW repository on GitHub; these links point at the commit this page was built from.

QO100 RX: common questions

What microcontroller does the QO100 RX use?

The QO100 RX is built around the RP2040_PICO, from the RP2040/RP2350 family.

How big is the QO100 RX PCB?

The QO100 RX measures 97 × 97 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the QO100 RX?

162 components, from 63 distinct parts. The full bill of materials is listed on this page.

Where can I download the QO100 RX design files?

From the barisdinc/N3B_SDR_Transceiver_HW repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the QO100 RX design in my own project?

Yes, under the terms of its GPL-3.0 license, which barisdinc chose for the repository.

Can I test firmware for the QO100 RX without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
