UCB board layout, top view — open source STM32 board by bartkepl

About the UCB board

UCB board is an open source STM32 PCB design by bartkepl, published on GitHub under the MIT license. It is a 4-layer board measuring 56.8 × 100 mm, with 148 components from 42 distinct parts.

Its main chip is the STM32H563VIT6, from the STM32 family. Other key parts include the SN65HVD75DR, W5500, LM4040DBZ-3, USBLC6-2SC6 and FM24C64B. By type, the board carries 60 capacitors, 35 diodes, 33 resistors, 8 ICs, 6 inductors and 4 fuses.

From the project

Control board for testing concepts with SCPI, UART, USB, RS485 and ETHERNET in pseudo 3U eurocard format

- Schematic and PCB layout done (4-layer, 56.8 × 100 mm), production files generated. - Design review completed; DRC/ERC clean (remaining items reviewed and excluded as by-design). - W5500 clock is sourced from the MCU (MCO1) by default — R80 fitted, R23 (Si5351C CLK0) DNP. - Firmware: STM32CubeMX skeleton only.

Production outputs: schematic PDF · PCB PDF · interactive BOM · gerbers

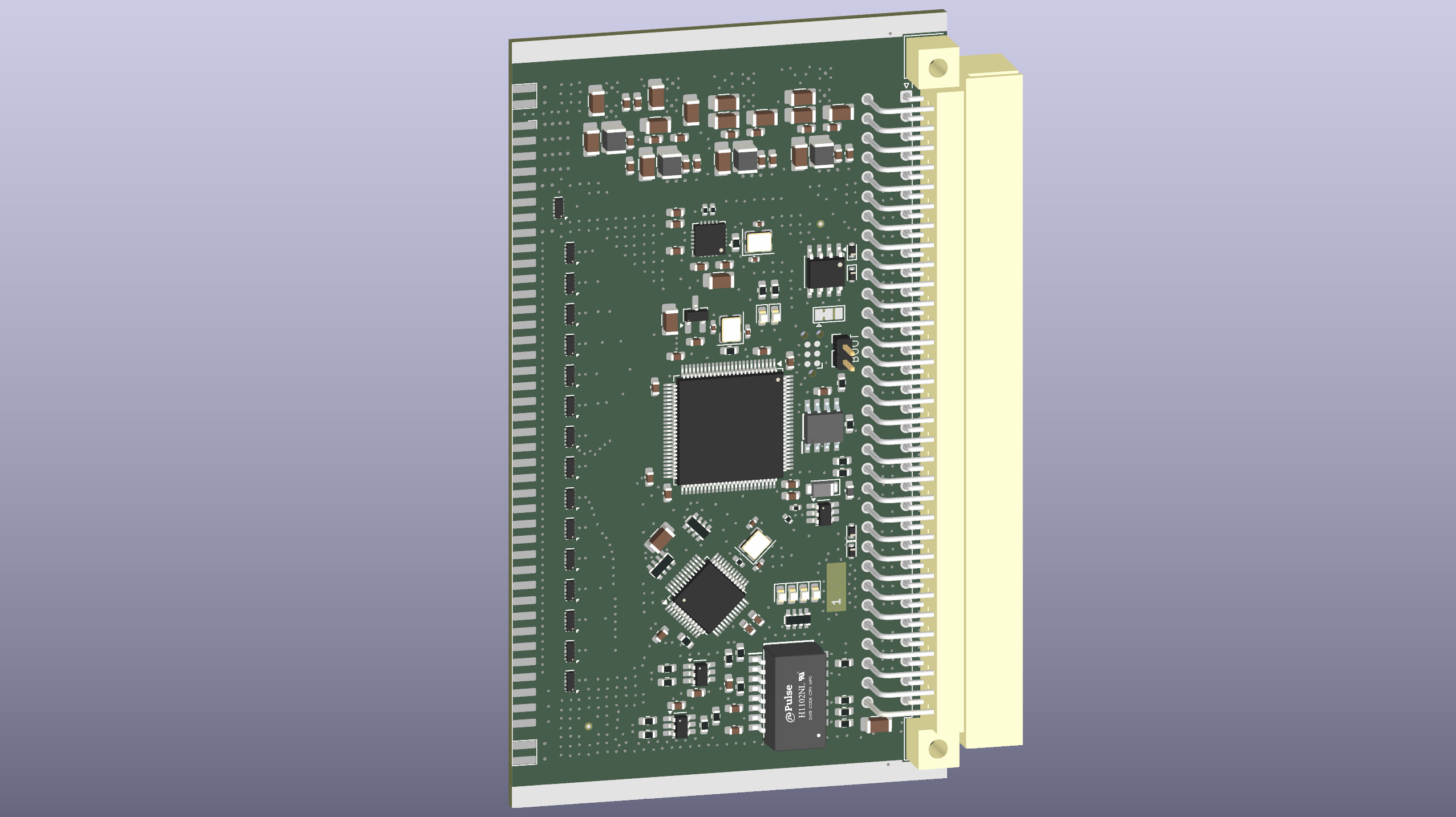

UCB board, from the project README
From the project README

Main components on the UCB board

SN65HVD75DRW5500LM4040DBZ-3USBLC6-2SC6FM24C64BSTM32H563VIT6

UCB board bill of materials (BOM)

148 components, 42 distinct parts.

QtyPartRefs
1
SN65HVD75DR
IC1
1
W5500
U1
1
LM4040DBZ-3
U2
3
USBLC6-2SC6
U3, U4, U5
1
FM24C64B
U6
1
STM32H563VIT6
STM32H563VITx
U7
1
3225-25M-SR
Y2
4
SN020-30
Polyfuse
F1, F2, F3, F4
1
H1102NL
T1
6
FYLS-1206PGC
D1, D2, D4, D6, D13, D14
5
ESD5Z3.3T1G
D3, D5, D10, D16, D17
2
SMF5.0CA
D7, D12
2
TGL34-15CA
D8, D18
2
BZD27C12P-E3-08
D9, D19
1
TGL34-6.8CA
D11
1
CDSOT23-SM712
D15
16
UT8413A
D20, D21, D22, D23, D24, D25, D26, D27 +8
2
WLBD1608HCU101TL
100 @ 100MHz
FB1, FB2
4
LQH32PN101MN0L
L1, L2, L3, L4
35
GRM188R71H104KA93D
100n
C1, C2, C11, C12, C13, C14, C15, C16 +27
Show 22 more
QtyPartRefs
2
1206B102K202
1nF/2kV
C3, C5
4
GRM1885C1H103JA01J
10n
C4, C7, C10, C27
2
18p
C6, C8
3
0603X475K100CT
4.7u
C9, C56, C57
12
CL31B106KBHNNNE
10u
C18, C21, C22, C30, C31, C34, C36, C43 +4
2
6.8n
C73, C74
2
0402WGJ0220TCE
22
R1, R2
6
CRCW060310K0FKTABC
10k
R3, R21, R84, R85, R90, R91
1
RC0603FR-0715KL
15k
R4
3
10
R5, R88, R89
2
0603SAJ0750T5E
75
R6, R7
2
RC0603JR-0782RL
82
R8, R9
2
CRCW060349R9FKTABC
49.9
R10, R11
2
1-2176339-5
150
R12, R13
4
WF06P330JTL
33
R14, R15, R16, R17
1
1M
R18
1
ERA3AEB1242V
12.4k
R19
1
0603SAF1004T5E
1M
R20
1
CRCW04020000Z0TDBC
0R
R80
2
0603SAF1200T5E
120
R86, R87
1
4D03WGJ0471T5E
4x470R
RN1
2
4D03WGJ0103T5E
4x10k
RN2, RN3

UCB board design files

The KiCad project lives in the bartkepl/UCB_board repository on GitHub; these links point at the commit this page was built from.

UCB board: common questions

What microcontroller does the UCB board use?

The UCB board is built around the STM32H563VIT6, from the STM32 family.

How big is the UCB board?

The UCB board measures 56.8 × 100 mm, has 4 copper layers and is 1.5862 mm thick.

How many components are on the UCB board?

148 components, from 42 distinct parts. The full bill of materials is listed on this page.

Where can I download the UCB board design files?

From the bartkepl/UCB_board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the UCB board design in my own project?

Yes, under the terms of its MIT license, which bartkepl chose for the repository.

Can I test firmware for the UCB board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
