Beagleconnect freedom
About the Beagleconnect freedom PCB
Beagleconnect freedom is an open source TI MSP430/CC PCB design by beagleboard, published on GitHub under the CC-BY-4.0 license. It is a 4-layer board measuring 35.8 × 58 mm, with 176 components from 96 distinct parts.
Its main chip is the MSP430F5503, from the TI MSP430/CC family. Other key parts include the BQ21040, TPS62821, CC1352P-LeashPCB, TS5A23157 and MSP430F5529IPNR. By type, the board carries 61 resistors, 55 capacitors, 15 inductors, 13 diodes, 11 ICs and 6 connectors.
It belongs with the power & battery, sensors and iot & wireless designs in this gallery.
From the project

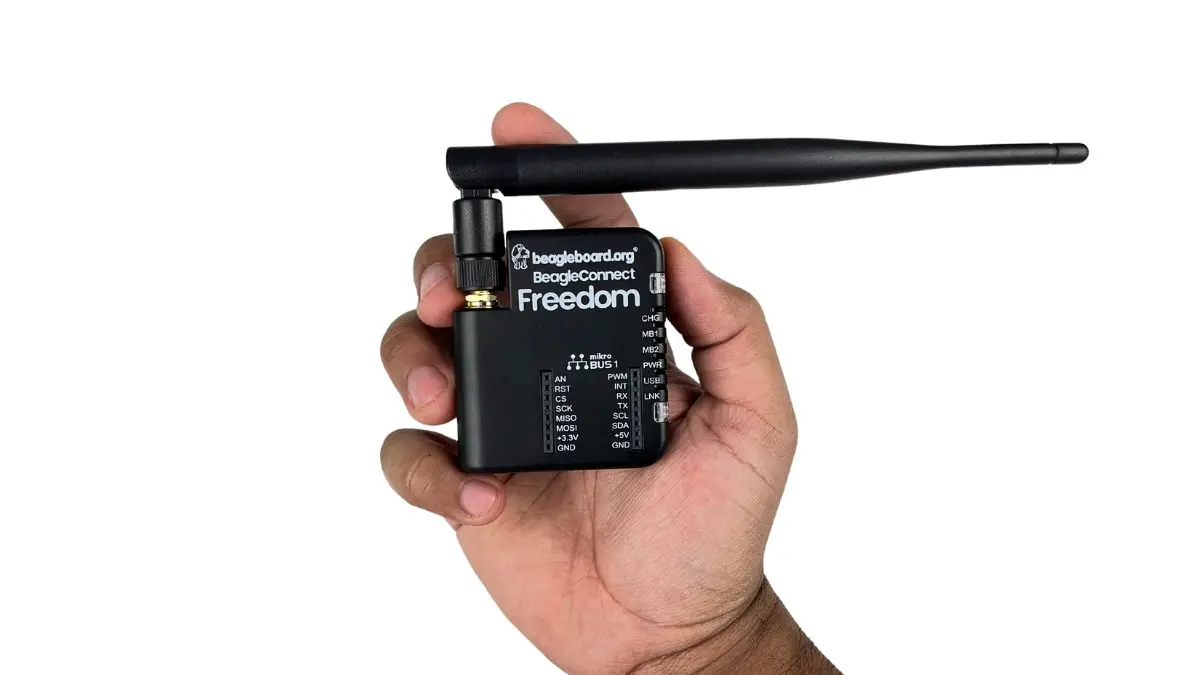

BeagleConnect™ Freedom is an open-hardware wireless hardware platform developed by BeagleBoard.org and built around the TI CC1352P7 microcontroller, which supports both 2.4-GHz and long-range, low-power Sub-1 GHz wireless protocols. Rapidly prototyping of IoT applications is acce
BeagleConnect™ Freedom is an open-hardware wireless hardware platform developed by BeagleBoard.org and built around the TI CC1352P7 microcontroller, which supports both 2.4-GHz and long-range, low-power Sub-1 GHz wireless protocols. Rapidly prototyping of IoT applications is accelerated by hardware compatibility with over 1,000 mikroBUS add-on sensors, acutators, indicators and additional connectivity and storage options, and backed with software support utilizing the Zephyr scalable and modular real-time operating system, allowing developers to tailor the solution to their specific needs.…
Main components on the Beagleconnect freedom
Beagleconnect freedom bill of materials (BOM)
176 components, 96 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MSP430F5503 | Texas_S-PVQFN-N48_EP5.15x5.15mm | U1 |
| 1 | BQ21040 | SOT-23-6 | U2 |
| 1 | TPS62821 | TPS62821DLC | U3 |
| 1 | CC1352P-LeashPCB | QFN-48-1EP_7x7mm_P0.5mm_EP5.15x5.15mm | U4 |
| 1 | TS5A23157 | QFN10_0.6_2X1.5X0.5MM | U5 |
| 1 | MSP430F5529IPNR GD25Q16CEIGR TI | MX25R8035FZUIL0 | U6 |
| 1 | OPT3001 | USON6 | U7 |
| 1 | HDC2010 | HDC2010 | U8 |
| 1 | LIS2DE12 | LGA-12_2x2mm_P0.5mm | U9 |
| 1 | TS5A2066YZPR | TS5A2066YZPR | U10 |
| 1 | SKY13317-373LF | SKY13317-373LF | U11 |
| 1 | CJ2305 | SOT-23 | Q1 |
| 1 | MS3V-T1R 2N7002PW Microcrystal | SOT-323_SC-70 | Q2 |
| 1 | BC856S | SOT-363_SC-70-6 | Q3 |
| 1 | CSTCR4M00G15L99 CJ2305 Murata | SOT-23 | Q4 |
| 1 | 24MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | 32.768KHz | Crystal_SMD_2012-2Pin_2.0x1.2mm | Y2 |
| 1 | 48MHz | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y3 |
| 1 | ST-FH-254-0144-02 | PinSocket_1x02_P2.54mm_Vertical_SMD_Pin1Right | J1 |
| 2 | TAG-CONNECT-10 | Tag-Connect-10 | J2, J3 |
Show 76 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | mikroBUS | MikroBus-SMD | J4, J5 |
| 1 | UFL | A-1JB | J8 |
| 1 | Antenna_Dipole | RFECA3216060A1T | AE1 |
| 1 | 0900PC15A0036E | 0900PC15A0036 | B1 |
| 1 | Buzzer | BUZZER3-5.5X5X2MM | BZ1 |
| 1 | 3A | R_1812_4532Metric | F1 |
| 1 | Shield | SHIELDING_27.5x15.5x0.2mm | SH1 |
| 2 | TS23M-BN-PT-PF | TS23M-BN-PT-PF | SW1, SW2 |
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_Palconn_UTC16-G | USB1 |
| 6 | LED | LED_0402_1005Metric | D2, D3, D4, D5, D6, D7 |
| 3 | ESDPSA0402V05 | D_0402_1005Metric | D8, D10, D11 |
| 1 | PMEG6020ER,115 | D_SOD-123 | D9 |
| 2 | BAT54XV2 | D_SOD-523 | D12, D13 |
| 1 | 1N4148WS | D_SOD-323 | D100 |
| 2 | 120R-1.3A | L_0402_1005Metric | L1, L3 |
| 1 | 0.47U | L2X1.6X1MM | L2 |
| 1 | 6.8 uH | L_0805_2012Metric | L4 |
| 1 | 2.0pF | L_0201_0603Metric | L5 |
| 2 | 0 | L_0201_0603Metric | L6, L15 |
| 1 | 27nH | L_0201_0603Metric | L7 |
| 1 | 2.5nH | L_0201_0603Metric | L8 |
| 1 | 4.7nH | L_0201_0603Metric | L9 |
| 2 | 1nH | L_0201_0603Metric | L10, L11 |
| 2 | 12nH | L_0201_0603Metric | L12, L13 |
| 1 | 3.9nH | L_0201_0603Metric | L14 |
| 10 | 0.1U | C_0402_1005Metric | C1, C5, C7, C22, C38, C39, C40, C41 +2 |
| 1 | 1N | C_0402_1005Metric | C2 |
| 2 | 18P | C_0402_1005Metric | C3, C4 |
| 4 | 10U | C_0402_1005Metric | C6, C10, C11, C45 |
| 2 | 220N | C_0402_1005Metric | C8, C44 |
| 1 | 0.47U | C_0402_1005Metric | C9 |
| 1 | 10U | C_0603_1608Metric | C12 |
| 1 | 100P | C_0402_1005Metric | C13 |
| 1 | 100N 10U Standard | C_0402_1005Metric | C14 |
| 2 | 220N 8P Standard | C_0402_1005Metric | C15, C16 |
| 1 | 1U Standard | C_0402_1005Metric | C17 |
| 1 | 470N 0.1U Standard | C_0402_1005Metric | C18 |
| 3 | 100N 0.1U Standard | C_0402_1005Metric | C19, C20, C21 |
| 1 | 10P 0.1U Standard | C_0402_1005Metric | C23 |
| 1 | 10P 22U Standard | C_0603_1608Metric | C24 |
| 2 | 12P 0.1U Standard | C_0402_1005Metric | C25, C26 |
| 1 | 4U7 100pF Standard | C_0201_0603Metric | C27 |
| 1 | 100N 2.4pF Standard | C_0201_0603Metric | C28 |
| 1 | 100N DNP Standard | C_0201_0603Metric | C29 |
| 1 | 10U DNP Standard | C_0201_0603Metric | C30 |
| 1 | 100N 0.5pF Standard | C_0201_0603Metric | C31 |
| 2 | DNP | C_0201_0603Metric | C32, C43 |
| 1 | 3.9pF | C_0201_0603Metric | C33 |
| 1 | 0R | C_0201_0603Metric | C34 |
| 1 | 47pF | C_0201_0603Metric | C36 |
| 1 | 1nF | C_0402_1005Metric | C37 |
| 1 | 2.4pF | C_0201_0603Metric | C46 |
| 2 | 7P | C_0402_1005Metric | C47, C48 |
| 1 | 3pF | C_0201_0603Metric | C49 |
| 3 | 100pF | C_0201_0603Metric | C50, C53, C54 |
| 1 | 4.7pF | C_0201_0603Metric | C52 |
| 1 | 10nF | C_0201_0603Metric | C55 |
| 1 | 0.7pF | C_0201_0603Metric | C56 |
| 7 | 1K | R_0402_1005Metric | R1, R2, R3, R4, R5, R6, R11 |
| 12 | 2.21K | R_0402_1005Metric | R7, R41, R42, R43, R44, R53, R55, R56 +4 |
| 6 | 100K | R_0402_1005Metric | R8, R9, R12, R35, R46, R47 |
| 1 | 470 | R_0402_1005Metric | R10 |
| 1 | 100R | R_0402_1005Metric | R13 |
| 1 | 100R 1M Standard | R_0402_1005Metric | R14 |
| 1 | 1K4 33 Standard | R_0402_1005Metric | R15 |
| 20 | 0 | R_0402_1005Metric | R16, R23, R24, R25, R26, R28, R33, R36 +12 |
| 1 | 47K | R_0402_1005Metric | R17 |
| 2 | 5.1K | R_0402_1005Metric | R18, R19 |
| 2 | 10R0 | R_0402_1005Metric | R20, R21 |
| 1 | 1M | R_0402_1005Metric | R22 |
| 1 | 47K 0 Standard | R_0402_1005Metric | R27 |
| 1 | 470R 0 Standard | R_0402_1005Metric | R29 |
| 1 | 470R 1.5K Standard | R_0402_1005Metric | R30 |
| 1 | 27R 1.2K Standard | R_0402_1005Metric | R31 |
| 1 | 27R 47K Standard | R_0402_1005Metric | R32 |
| 1 | 453K | R_0402_1005Metric | R34 |
Beagleconnect freedom design files
The KiCad project lives in the beagleboard/beagleconnect-freedom repository on GitHub; these links point at the commit this page was built from.
Beagleconnect freedom: common questions
What microcontroller does the Beagleconnect freedom use?
The Beagleconnect freedom is built around the MSP430F5503, from the TI MSP430/CC family.
How big is the Beagleconnect freedom PCB?
The Beagleconnect freedom measures 35.8 × 58 mm, has 4 copper layers and is 0.8 mm thick.
How many components are on the Beagleconnect freedom?
176 components, from 96 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Beagleconnect freedom design files?
From the beagleboard/beagleconnect-freedom repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Beagleconnect freedom design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which beagleboard chose for the repository.
Can I test firmware for the Beagleconnect freedom without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug TI MSP430/CC firmware against it before you order a PCB.
