ETH1CLCR2 PCB layout, top view — open source STM32 board by BehrensG

About the ETH1CLCR2 PCB

ETH1CLCR2 is an open source STM32 PCB design by BehrensG, published on GitHub. It is a 6-layer board measuring 160 × 100 mm, with 591 components from 157 distinct parts.

Its main chip is the STM32H743ZI, from the STM32 family. Other key parts include the LC03-3.3, LAN8742A, 74AC125, TXB0104PW and ADuM5402. By type, the board carries 215 capacitors, 207 resistors, 78 ICs, 34 diodes, 24 transistors and 13 inductors.

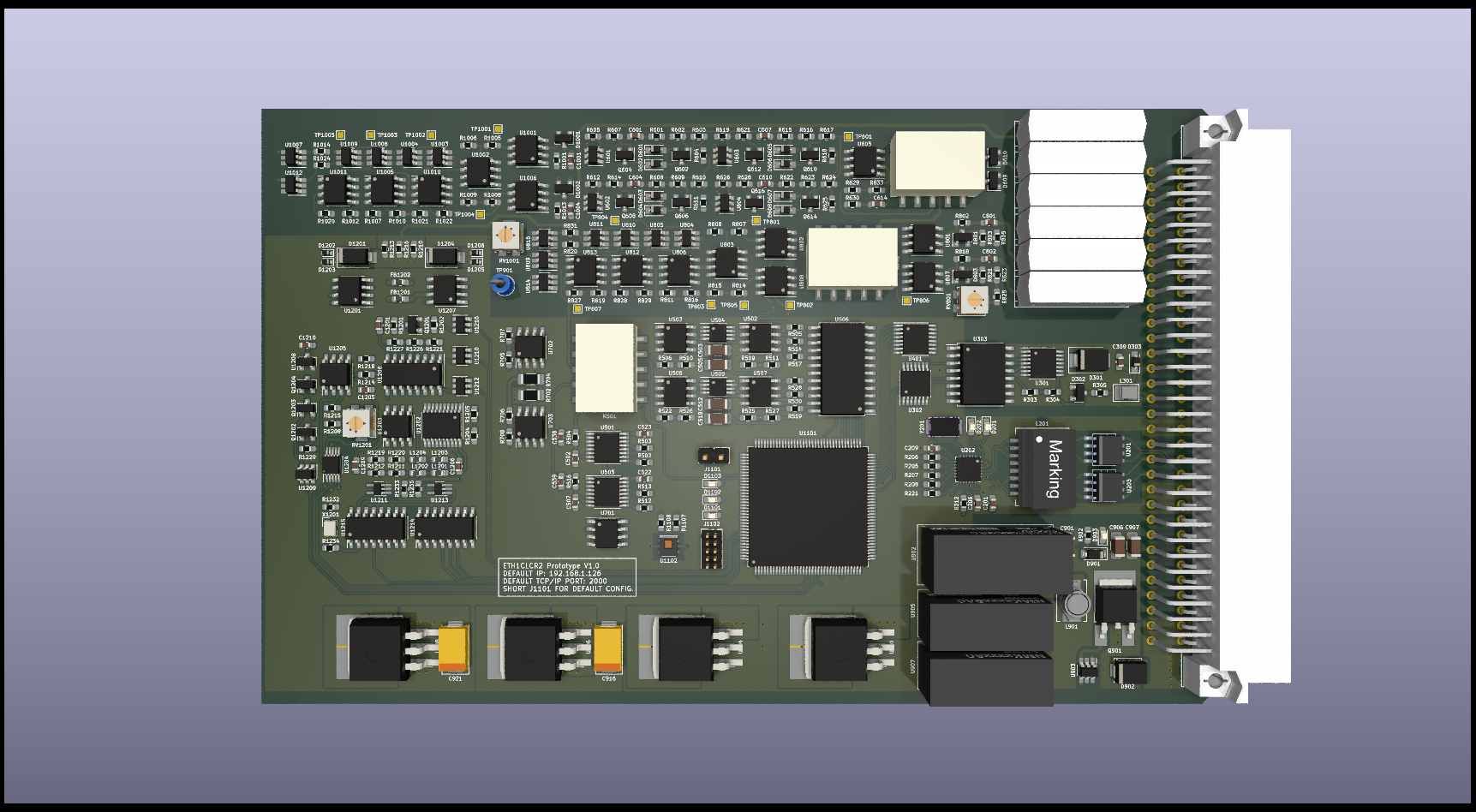

ETH1CLCR2, from the project README
From the project README

Main components on the ETH1CLCR2

LC03-3.3LAN8742A74AC125TXB0104PWADuM5402ULN2003AADS8681IPWRAD8656OP1177ARAD8476_MSOPCS5361SN74LVC1T45DBVADA4817-1ARDZREF5040IDTL431BCDE4MCP661-E/SNMCP6L91T-E/SNSN74LVC1G3157DBVRLM1117SX-3.3/NOPBNCS3S1205SCMAX5902LM1117SX-5.0/NOPBNMK2409SACNMK2409SC

ETH1CLCR2 bill of materials (BOM)

591 components, 157 distinct parts.

QtyPartRefs
2
LC03-3.3
U201, U203
1
LAN8742A
U202
1
74AC125
U301
1
TXB0104PW
U302
1
ADuM5402
U303
1
ULN2003A
U401
2
ADS8681IPWR
U501, U505
2
AD8656
U502, U507
2
OP1177AR
U503, U508
2
AD8476_MSOP
U504, U509
1
CS5361
U506
8
SN74LVC1T45DBV
U601, U602, U603, U604, U1209, U1210, U1212, U1216
1
ADA4817-1ARDZ
U605
1
REF5040ID
U701
1
TL431BCDE4
U702
9
MCP661-E/SN
U703, U802, U803, U806, U808, U812, U1002, U1005 +1
6
MCP6L91T-E/SN
U801, U807, U813, U1001, U1006, U1011
8
SN74LVC1G3157DBVR
U804, U805, U810, U811, U1003, U1004, U1008, U1009
5
SN74LVC1T45DBV
U809, U814, U815, U1007, U1012
1
LM1117SX-3.3/NOPB
U901
Show 137 more
QtyPartRefs
1
NCS3S1205SC
U902
1
MAX5902
U903
2
LM1117SX-5.0/NOPB
U904, U906
1
NMK2409SAC
U905
1
NMK2409SC
U907
1
LM2990SX-5.0
U908
1
STM32H743ZI
U1101
1
HDC1080
U1102
1
24LC08B-E/MS
U1103
2
LMH6639MA
U1201, U1207
1
AD9834
U1202
2
AD8038ARZ
U1203, U1205
1
DAC7811
U1204
1
DG409DY
U1206
1
TL431DBZ
U1208
1
74AHC1G14
U1211
1
74AUP1G79
U1213
2
74AC161
U1214, U1215
7
BC847
Q501, Q603, Q607, Q611, Q615, Q617, Q801
8
MMBFJ309LT1G
Q601, Q602, Q605, Q606, Q609, Q610, Q613, Q614
4
BC857
Q604, Q608, Q612, Q616
1
IRFR5410
Q901
1
FDV301N
Q1201
1
2SC3326B
Q1202
1
DTA144E
Q1203
1
DTC114E
Q1204
1
830208220601
X1201
1
NX5032GA-25.000M-LN-CD-1
Y201
1
NX3225GD-8MHZ
Y1101
1
C64AC
J401
1
Conn_02x01
J1101
1
20021111-00010T4LF
J1102
1
MF-LSMF185/33X
F901
6
HE3621A0510
K401, K402, K403, K404, K405, K406
3
TQ2SA-5V
K501, K601, K801
2
3314J-1-203E
RV801, RV1001
1
3314J-1-104E
RV1201
1
TestPoint
TP901
1
YELLOW
D201
2
GREEN
D202, D1101
1
SMBJ5.0A
D301
1
BAV99
D302
1
SD36C-01FTG
D303
3
1N4148W
D501, D611, D802
8
BAS16J
D601, D602, D603, D604, D605, D606, D607, D608
6
BAV199
D609, D610, D801, D803, D1001, D1002
1
MMSZ5249B
D901
1
SM6T30AY
D902
2
RED
D903, D1102
1
BLUE
D1103
2
BYG20J
D1201, D1204
4
BZX584C5V6
D1202, D1203, D1205, D1206
2
742792031
FB201, FB1101
2
BLM18TG102TN1D
FB801, FB1001
2
BLM18SP601SZ1D
FB1201, FB1202
1
749010012A
L201
1
CW252016-R33G
L301
1
PM1608S-100M-RC
L901
4
CBMF1608T100K
L1201, L1202, L1203, L1204
116
100n
C201, C202, C204, C205, C206, C207, C210, C301 +108
27
1u
C203, C209, C302, C305, C307, C401, C510, C514 +19
2
470p
C208, C614
2
1n/1kV
C211, C212
4
8p
C213, C214, C1101, C1102
1
47p
C309
4
470p/COG
C501, C506, C508, C519
2
330p
C502, C507
12
10u
C503, C505, C512, C518, C902, C903, C908, C909 +4
2
2700p/COG
C504, C517
3
10n
C509, C537, C1201
1
47u
C511
2
22u
C513, C515
2
4n7
C601, C604
11
DNP
C602, C605, C607, C608, C610, C611, C613, C803 +3
2
10u
C702, C705
3
4u7/50V
C901, C906, C907
4
1u
C904, C910, C914, C919
4
100n
C905, C911, C915, C920
2
T521V107M016ATE050
C916, C921
2
2u2
C1103, C1104
3
4u7
C1202, C1204, C1209
1
3p3/COG
C1205
2
100p
C1206, C1208
1
68p
C1207
4
49R9
R201, R202, R203, R204
5
33
R205, R206, R208, R212, R1228
34
10k
R207, R213, R217, R218, R219, R220, R301, R502 +26
1
12k1
R209
2
75/1%
R210, R211
2
270
R214, R215
1
1M/1kV
R216
1
1k5
R221
6
1k
R302, R820, R831, R1014, R1024, R1222
1
14k7
R303
6
100
R304, R819, R1012, R1206, R1223, R1224
1
47
R305
1
51R1
R306
4
634/.1%
R501, R517, R518, R530
3
0
R504, R516, R633
4
91/.1%
R505, R514, R519, R528
9
10k/.1%
R506, R509, R510, R511, R522, R525, R526, R527 +1
2
300
R507, R523
7
100k
R508, R515, R524, R529, R901, R1201, R1208
3
0R22
R520, R521, R701
2
33/.1%
R601, R608
6
100/.1%
R602, R629, R802, R818, R1001, R1013
12
1Meg
R603, R604, R610, R611, R617, R618, R624, R625 +4
9
1k/.1%
R609, R807, R808, R814, R815, R1005, R1006, R1008 +1
7
DNP
R615, R622, R634, R801, R813, R824, R1016
5
100k/.1%
R623, R811, R828, R1007, R1021
1
47/.1%
R630
2
2/.5%
R631, R632
1
3R3/.5W
R702
1
10
R703
1
33/.5W
R704
1
220/.1%
R705
4
3k3/.1%
R706, R708, R827, R1020
1
1k1/.1%
R707
12
2k/.1%
R804, R805, R816, R822, R823, R829, R1003, R1004 +4
2
1k8/.1%
R806, R826
2
200/.1%
R809, R810
4
18k/.1%
R817, R830, R1011, R1023
2
47k/.1%
R825, R1019
2
330
R902, R1219
4
680
R1101, R1103, R1218, R1231
1
560
R1102
6
4k7
R1107, R1108, R1109, R1110, R1202, R1232
2
680/.1%
R1203, R1217
1
6k8
R1204
1
2k
R1205
1
820
R1207
2
330/.1%
R1209, R1225
3
150
R1210, R1213, R1216
5
200
R1211, R1212, R1215, R1220, R1227
2
220
R1214, R1221
4
68
R1226, R1233, R1234, R1235
1
51
R1229

ETH1CLCR2 design files

The KiCad project lives in the BehrensG/ETH1CLCR2 repository on GitHub; these links point at the commit this page was built from.

ETH1CLCR2: common questions

What microcontroller does the ETH1CLCR2 use?

The ETH1CLCR2 is built around the STM32H743ZI, from the STM32 family.

How big is the ETH1CLCR2 PCB?

The ETH1CLCR2 measures 160 × 100 mm, has 6 copper layers and is 1.5 mm thick.

How many components are on the ETH1CLCR2?

591 components, from 157 distinct parts. The full bill of materials is listed on this page.

Where can I download the ETH1CLCR2 design files?

From the BehrensG/ETH1CLCR2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ETH1CLCR2 design in my own project?

The repository has no license, so all rights stay with BehrensG. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ETH1CLCR2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
