Bakeneko-60

BenjaminJAnderson·Orthodox·Hardware/PCB/references/bakeneko-60-develop/pcb/bakeneko-60-pcb.kicad_pcb

Bakeneko-60 PCB layout, top view — open source AVR/Arduino board by BenjaminJAnderson

About the Bakeneko-60 PCB

Bakeneko-60 is an open source AVR/Arduino PCB design by BenjaminJAnderson, published on GitHub. It is a 2-layer board measuring 284.7 × 94.2 mm, with 154 components from 23 distinct parts.

Its main chip is the ATmega32U4-AU, from the AVR/Arduino family. Other key parts include the SRV05-4. By type, the board carries 73 LEDs, 63 diodes, 7 capacitors, 4 resistors, 2 ICs and 2 connectors.

It belongs with the keyboards designs in this gallery.

From the project

A simple 60% keyboard for DIYers. This project is a special homage to TGR x Singa UNIKORN 60 and OTD 356 Mini. See also the introduction video.

A simple 60% keyboard for DIYers. This project is a special homage to TGR x Singa UNIKORN 60 and OTD 356 Mini. See also the introduction video.

- Single piece tray case - O-ring gasket mount (Friction fit) - Unified Daughterboard - QMK firmware and VIA - Compatible with common 60% plates - PCB designed with KiCAD 5.1.4

- Dimensions: 295 x 110 x 30mm - Front height: 18.5mm - Home row height: 31mm(with GMK keycaps and bumpons) - Typing angle: 6 degree - Weight: - PLA Case: 370g - Aluminum Case: 700g - O-ring gasket: VMQ-50(Silicone 50 duro) AS568-262

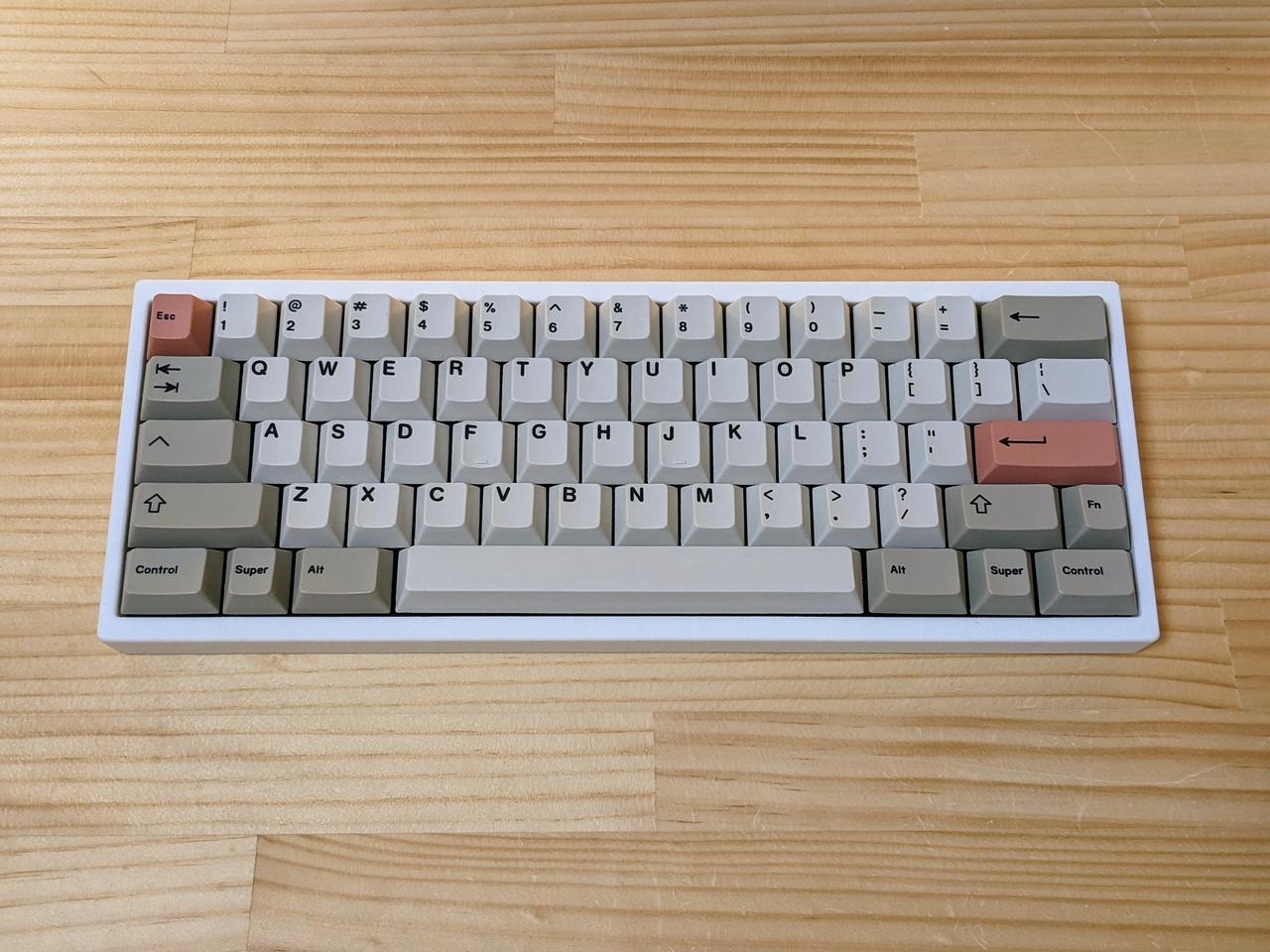

Bakeneko-60, from the project README
From the project README

Main components on the Bakeneko-60

SRV05-4ATmega32U4-AU

Bakeneko-60 bill of materials (BOM)

154 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SRV05-4
U1
1
ATmega32U4-AU
U2
1
16MHz
Y1
1
JST SH 4-pin
J1
1
AVR-ISP-6
J2
1
500mA
F1
1
Reset
SW1
51
1u
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +43
1
2u
MX16
6
1.5u
MX17, MX30, MX67, MX69, MX71, MX73
8
1.25u
MX31, MX59, MX60, MX61, MX63, MX64, MX65, MX66
2
1.75u
MX32, MX56
2
2.25u
MX44, MX45
1
2.75u
MX58
1
6.25u
MX62
1
7u
MX70
63
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +55
3
0.1u
C1, C2, C3
1
10u
C4
2
22p
C5, C7
Show 3 more
QtyPartRefs
1
1u
C6
2
22
R1, R2
2
10k
R3, R4

Bakeneko-60 design files

The KiCad project lives in the BenjaminJAnderson/Orthodox repository on GitHub; these links point at the commit this page was built from.

Bakeneko-60: common questions

What microcontroller does the Bakeneko-60 use?

The Bakeneko-60 is built around the ATmega32U4-AU, from the AVR/Arduino family.

How big is the Bakeneko-60 PCB?

The Bakeneko-60 measures 284.7 × 94.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bakeneko-60?

154 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Bakeneko-60 design files?

From the BenjaminJAnderson/Orthodox repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Bakeneko-60 design in my own project?

The repository has no license, so all rights stay with BenjaminJAnderson. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Bakeneko-60 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
