SynthCard PCB layout, top view — open source board by benjiaomodular

About the SynthCard PCB

SynthCard is an open source PCB design by benjiaomodular, published on GitHub under the MIT license. It is a 2-layer board measuring 88.9 × 50.8 mm, with 16 components from 13 distinct parts.

Other key parts include the NE555P. By type, the board carries 4 capacitors, 4 resistors, 2 ICs, 1 connector and 1 diode.

It belongs with the audio and power & battery designs in this gallery.

From the project

I designed this project with the help of PCBWay. You can get a copy of these cards through the PCBWay Shared Projects page.

I designed this project with the help of PCBWay. You can get a copy of these cards through the PCBWay Shared Projects page.

Schematics under /KiCAD. Gerber files under /Fabrication. Panel design under /Inkscape.

This module produces a pulse/square wave at 9Vpp.

There are two knobs. Knob 1 controls the frequency. Knob 2 controls the pulse width.

The module can be powered using a 9V power supply. A battery should work too.

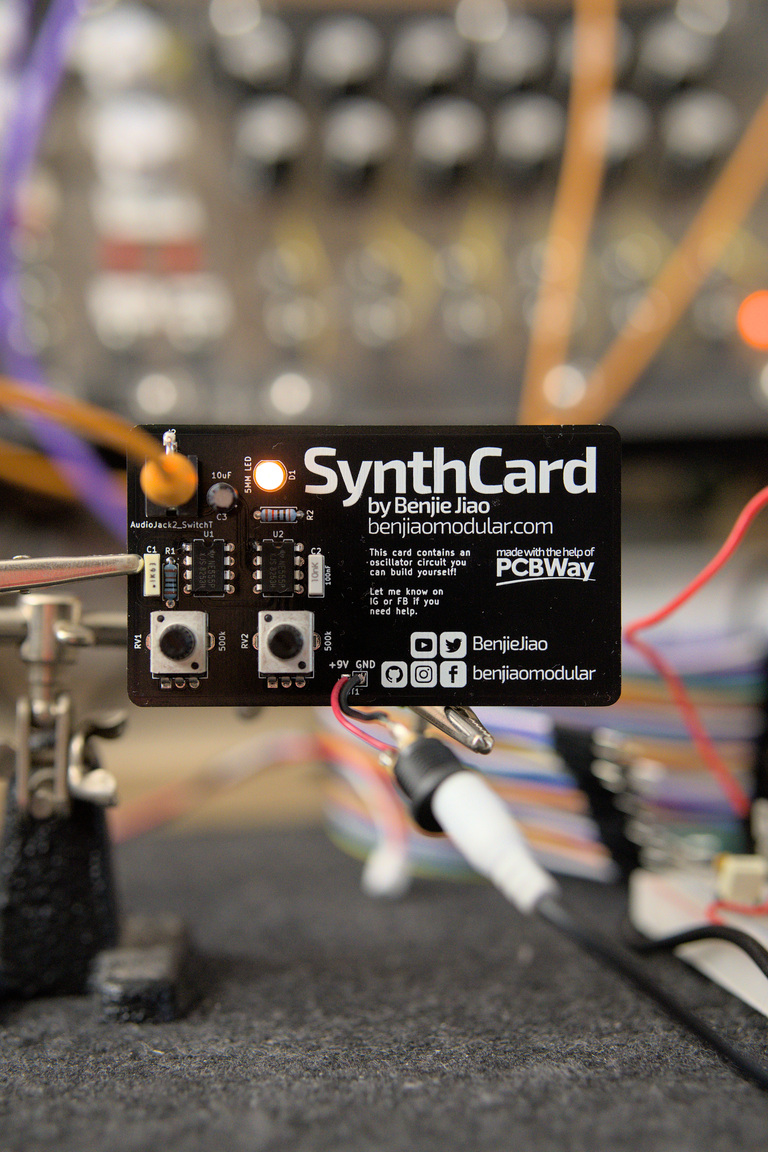

SynthCard, from the project README
From the project README

Main components on the SynthCard

NE555P

SynthCard bill of materials (BOM)

16 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
NE555P
U1, U2
1
AudioJack2_SwitchT
J2
2
Conn_01x02
PWR_IN1, PWR_THRU1
2
500K
500k
RV1, RV2
1
5MM LED
D1
1
10NF
10nF
C1
1
100NF
100nF
C2
1
10UF
10uF
C3
1
100uF
C4
1
1k
R1
1
10K
10k
R2
1
10k
R3
1
4.7k
R4

SynthCard design files

The KiCad project lives in the benjiaomodular/SynthCard repository on GitHub; these links point at the commit this page was built from.

SynthCard: common questions

How big is the SynthCard PCB?

The SynthCard measures 88.9 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SynthCard?

16 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SynthCard design files?

From the benjiaomodular/SynthCard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SynthCard design in my own project?

Yes, under the terms of its MIT license, which benjiaomodular chose for the repository.
