About the Commodore-PC10-III-Reproduction PCB

Commodore-PC10-III-Reproduction is an open source PCB design by Board-Folk, published on GitHub. It is a board, with 84 components from 47 distinct parts.

Other key parts include the 74LS04, 74LS125, PVC4, CSG 5720 and 74LS244. By type, the board carries 26 resistors, 18 capacitors, 10 inductors, 9 ICs, 3 connectors and 1 transistor.

It belongs with the retro computing designs in this gallery.

From the project

Commodore PC10-III PCB Reproduction

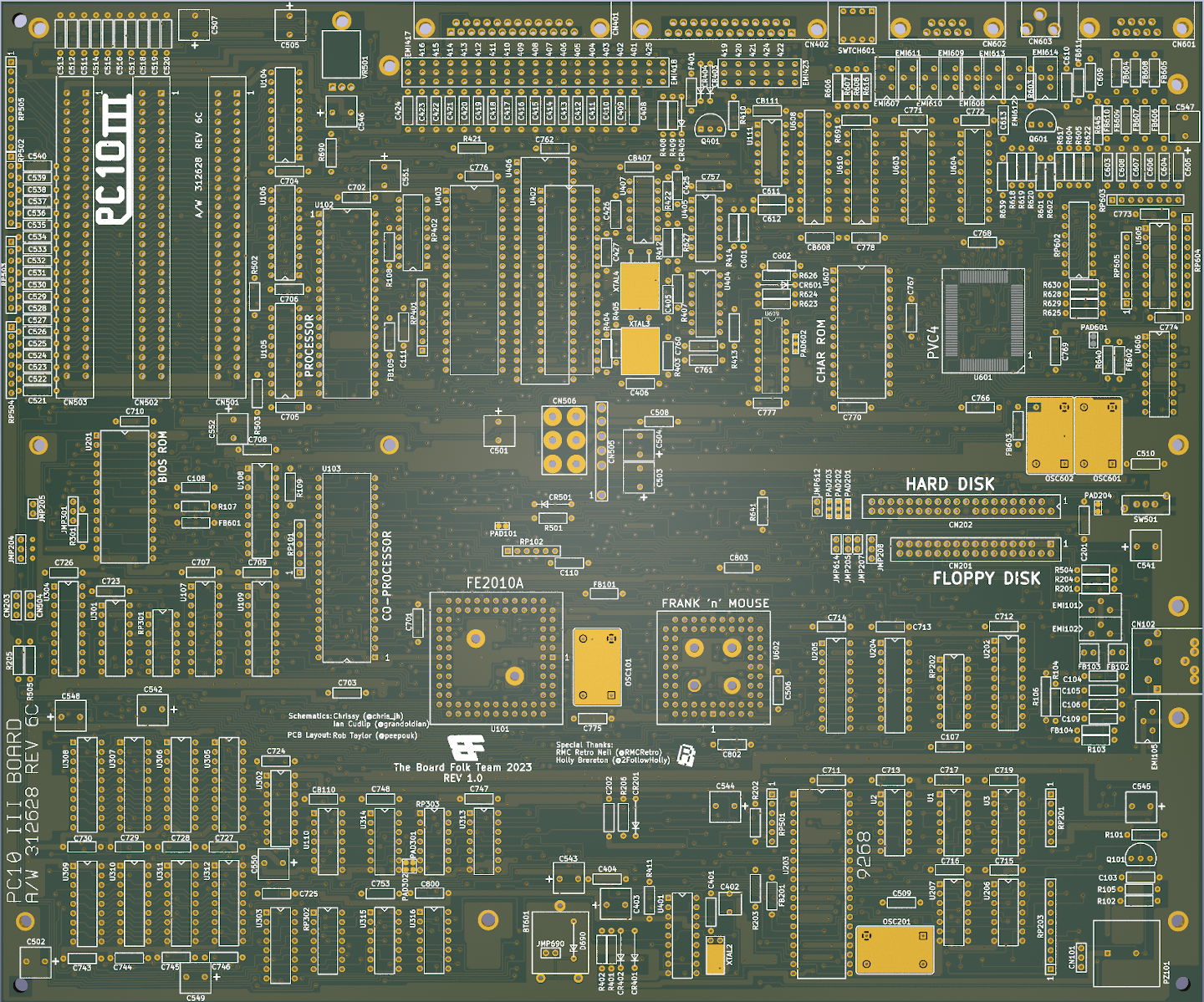

This repository contains a recreation of the main board PCB for Commodore PC10-III 312628 Revision 6c. This recreation is based on the available schematics for the Commodore PC10-III 5.7a (No 6c schematics available) and reverse engineering using scanned images of the original 6c board's copper layers, so should be a reasonably accurate reproduction.

The original board had some bodge wires and resistors. This Reproduction has them built in.

Main components on the Commodore-PC10-III-Reproduction

74LS04 74LS125 PVC4 CSG 5720 74LS244 74LS245 4464 CHAR-ROM

Commodore-PC10-III-Reproduction bill of materials (BOM)

84 components, 47 distinct parts.

Qty	Part	Footprint	Refs
1	74LS04	DIP-14_W7.62mm	U1
1	74LS125	DIP-14_W7.62mm	U111
1	PVC4	U601	U601
1	CSG 5720	PLCC-68_U602	U602
1	74LS244	DIP-20_W7.62mm	U603
1	74LS245	DIP-20_W7.62mm	U604
2	4464	DIP-18_W7.62mm	U605, U606
1	CHAR-ROM	DIP-28_W15.24mm	U607
1	2N3904	TO-92_Transistor	Q601
1	DB 9	CN601	CN601
1	DB 9	CN602	CN602
1	"RCA" Jack	CN603	CN603
1	1N914	Diode_Axial_P10.00mm	CR601
5	100pF (101)	EMI2	EMI607, EMI610, EMI611, EMI612, EMI613
3	100pF (101)	EMI2 - Extra GND	EMI608, EMI609, EMI614
2	Jumper_2_Open	PinHeader_1x02_P2.54mm	JMP612, JMP614
1	16.257MHZ	Oscillator_OSC601	OSC601
1	68	DIP-16_W7.62mm	RP602
1	4.7K	R_Array_SIP8	RP603
1	33K	R_Array_SIP10	RP604

Show 27 more

Qty	Part	Footprint	Refs
1	33K	R_Array_SIP8	RP605
1	SWITCH	SWTCH601	SWTCH601
9	FB	R_Axial_P10.00mm	FB602, FB604, FB605, FB606, FB607, FB608, FB609, FB610 +1
1	FB	R_Axial_P10.16mm_Hor	FB603
1	100PF	C_Axial_P10.00mm	C601
1	47PF	C_P10.16mm	C602
6	1000pF	C_Axial_P10.00mm	C603, C604, C605, C606, C607, C608
1	1000pF	C_P10.16mm	C609
5	.47	C_P10.16mm	C610, C766, C767, C768, C769
1	100pF	C_P10.16mm	C613
3	.1	C_P10.16mm	C770, C802, C803
1	750	R_Axial_P10.00mm	R601
2	680	R_Axial_P10.00mm	R602, R617
1	360	R_Axial_P10.00mm	R603
1	130	R_Axial_P10.00mm	R604
1	75	R_Axial_P10.00mm	R605
2	1K	R_Axial_P10.00mm	R606, R619
4	33K	R_Axial_P10.00mm	R607, R608, R622, R640
4	4.7K	R_Axial_P10.00mm	R616, R623, R624, R639
1	2K	R_Axial_P10.00mm	R618
1	3K	R_Axial_P10.00mm	R620
1	10	R_Axial_P10.00mm	R625
1	1.2K	R_Axial_P10.00mm	R626
1	360	R_Axial_P10.16mm_Hor	R627
3	68	R_Axial_P10.00mm	R628, R629, R630
1	2.2K	R_Axial_P10.00mm	R641
1	2.2	R_Axial_P12.70mm	R645
