MZ80C2N

Board-Folk·Sharp-MZ-80K·Expansions/MZ80C2N/Kicad/MZ80C2N.kicad_pcb

MZ80C2N PCB layout, top view — open source board by Board-Folk
Simulate this board

About the MZ80C2N PCB

MZ80C2N is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 52.5 × 43.3 mm, with 9 components from 9 distinct parts.

By type, the board carries 2 diodes, 2 resistors, 1 connector and 1 capacitor.

From the project

Sharp MZ-80K Replica Public

An adapter for Commodore C2N cassette players, the 1530 as an edge connector and 1531 as Mini-DIN.

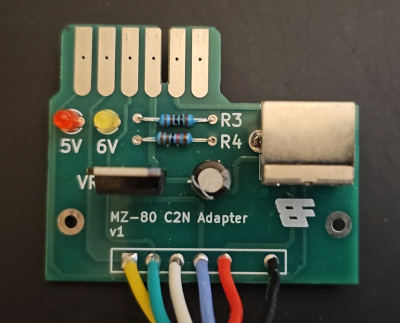

MZ80C2N, from the project README
From the project README

MZ80C2N bill of materials (BOM)

9 components, 9 distinct parts.

QtyPartRefs
1
TAPE
CN3
1
C2N OUT
CP3
1
C1531
CP4
1
LM7806
VR1
1
5V
D2
1
6V
D3
1
22uF 16V
C1
1
1K
R3
1
1K2
R4

MZ80C2N design files

The KiCad project lives in the Board-Folk/Sharp-MZ-80K repository on GitHub; these links point at the commit this page was built from.

MZ80C2N: common questions

How big is the MZ80C2N PCB?

The MZ80C2N measures 52.5 × 43.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MZ80C2N?

9 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the MZ80C2N design files?

From the Board-Folk/Sharp-MZ-80K repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MZ80C2N design in my own project?

The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.
