MZ80MROM

Board-Folk·Sharp-MZ-80K·Expansions/MZ80MROM/Kicad/MZ80MROM.kicad_pcb

MZ80MROM PCB layout, top view — open source board by Board-Folk
Simulate this board

About the MZ80MROM PCB

MZ80MROM is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 57.6 × 38.5 mm, with 7 components from 4 distinct parts.

Other key parts include the 27C512. By type, the board carries 4 resistors, 1 IC, 1 connector and 1 switch.

From the project

Sharp MZ-80K Replica Public

A multi-image ROM adapter to allow the use of a 28 pin EPROM at the M-ROM monitor position with switches to select the bank.

This will allow the use of up to a 27C512 EEPROM for up to 16 selectable banks, which is probably overkill. It's also useful just as an adapter to 28 pins.

Mounting holes were added to allow the attachment of nylon standoffs to provide stabalisation. There are no corresponding holes on the main board to screw into for these.

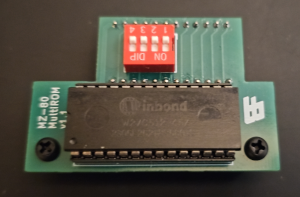

MZ80MROM, from the project README
From the project README

Main components on the MZ80MROM

27C512

MZ80MROM bill of materials (BOM)

7 components, 4 distinct parts.

QtyPartRefs
1
27C512
IC1250
1
(M-ROM)
J1
1
SEL
SW1251
4
10K
R1251, R1252, R1253, R1254

MZ80MROM design files

The KiCad project lives in the Board-Folk/Sharp-MZ-80K repository on GitHub; these links point at the commit this page was built from.

MZ80MROM: common questions

How big is the MZ80MROM PCB?

The MZ80MROM measures 57.6 × 38.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MZ80MROM?

7 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the MZ80MROM design files?

From the Board-Folk/Sharp-MZ-80K repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MZ80MROM design in my own project?

The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.
