MZ80MAX

Board-Folk·Sharp-MZ-80K·Expansions/MZ80MAX/Kicad/MZ80MAX.kicad_pcb

MZ80MAX PCB layout, top view — open source AVR/Arduino board by Board-Folk
Simulate this board

About the MZ80MAX PCB

MZ80MAX is an open source AVR/Arduino PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 100 × 55 mm, with 22 components from 21 distinct parts.

Its main chip is the ATMEGA328, from the AVR/Arduino family. Other key parts include the 74LS14. By type, the board carries 5 switches, 5 capacitors, 4 connectors, 3 resistors, 2 ICs and 1 transistor.

From the project

Sharp MZ-80K Replica Public

A simple implementation of Maxduino for the MZ-80K and now MZ-700 with buttons and OLED screen.

This needs Maxduino compiling for the ATMEGA328P. The chip can be programmed with a Minipro with the following settings.

Version 1.2 with the MZ-700 header fitted

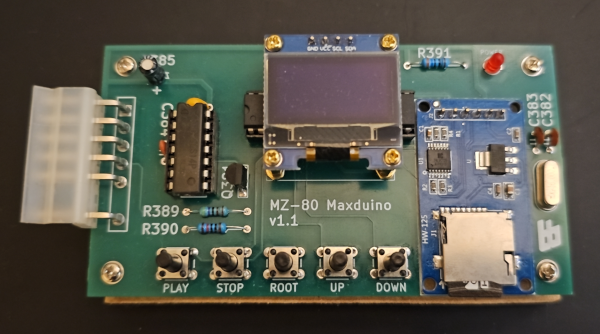

MZ80MAX, from the project README
From the project README

Main components on the MZ80MAX

ATMEGA32874LS14

MZ80MAX bill of materials (BOM)

22 components, 21 distinct parts.

QtyPartRefs
1
ATMEGA328
IC381
1
74LS14
IC382
1
BC547
Q381
1
16MHz
Y381
1
TAPE
CN3
1
MZ700
CN4
1
DISPLAY3BIG
J381
1
SD Adapter
J382
1
PLAY
SW381
1
STOP
SW382
1
ROOT
SW383
1
UP
SW384
1
DOWN
SW385
1
POWER
D381
2
20pF
C382, C383
1
1nF
C384
1
10uF
C385
1
100nF
C386
1
4K7
R389
1
10K
R390
Show 1 more
QtyPartRefs
1
330R
R391

MZ80MAX design files

The KiCad project lives in the Board-Folk/Sharp-MZ-80K repository on GitHub; these links point at the commit this page was built from.

MZ80MAX: common questions

What microcontroller does the MZ80MAX use?

The MZ80MAX is built around the ATMEGA328, from the AVR/Arduino family.

How big is the MZ80MAX PCB?

The MZ80MAX measures 100 × 55 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MZ80MAX?

22 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the MZ80MAX design files?

From the Board-Folk/Sharp-MZ-80K repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MZ80MAX design in my own project?

The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MZ80MAX without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
