MZ80AV

Board-Folk·Sharp-MZ-80K·Expansions/MZ80AV/Kicad/MZ80AV.kicad_pcb

MZ80AV PCB layout, top view — open source board by Board-Folk
Simulate this board

About the MZ80AV PCB

MZ80AV is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 119 × 63.1 mm, with 29 components from 26 distinct parts.

Other key parts include the LM386. By type, the board carries 8 capacitors, 8 resistors, 5 connectors, 1 IC, 1 transistor and 1 diode.

It belongs with the audio designs in this gallery.

From the project

Sharp MZ-80K Replica Public

A simple audio/video board which provides a collection of different outputs.

For audio, line out as a 3.5mm mono jack and an LM386 based amplifier with a volume control for a small 8 ohm speaker.

For video, a DIN connector for BBC/Amstrad type RGB cables (e.g. to SCART), 9 pin D-Sub (as green and c-sync pin 7) and a basic composite output.

Some previous trimmers used for testing composite have been left on and marked as DNP.

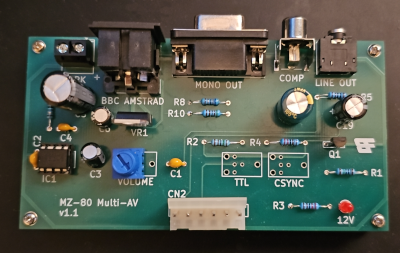

MZ80AV, from the project README
From the project README

Main components on the MZ80AV

LM386

MZ80AV bill of materials (BOM)

29 components, 26 distinct parts.

QtyPartRefs
1
LM386
IC1
1
BC337
Q1
1
VIDEO
CN2
1
COMP
J1
1
LINE OUT
J2
1
SPK
J3
1
MONO OUT
J7
1
TTL
RV1
1
CSYNC
RV2
1
VOLUME
RV3
1
BBC AMSTRAD
SK3
1
L7805
VR1
1
12V
D2
2
220nF
C1, C4
1
100nF
C2
2
100uF
C3, C6
1
1000uF
C5
1
220uF 16V
C18
1
470uF 16V
C19
1
150R
R1
Show 6 more
QtyPartRefs
1
1K5
R2
2
2K2
R3, R4
1
1K
R5
1
10R
R6
1
68R
R8
1
5K1
R10

MZ80AV design files

The KiCad project lives in the Board-Folk/Sharp-MZ-80K repository on GitHub; these links point at the commit this page was built from.

MZ80AV: common questions

How big is the MZ80AV PCB?

The MZ80AV measures 119 × 63.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MZ80AV?

29 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the MZ80AV design files?

From the Board-Folk/Sharp-MZ-80K repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MZ80AV design in my own project?

The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.
