Tim011 video fix
About the Tim011 video fix PCB
Tim011 video fix is an open source PCB design by Board-Folk, published on GitHub. It is a 2-layer board measuring 84.9 × 57.4 mm, with 30 components from 24 distinct parts.
Other key parts include the 74LS123 and 74LS08. By type, the board carries 10 resistors, 9 capacitors, 5 connectors, 3 ICs and 1 transistor.
From the project
TIM-011 B Replica Board

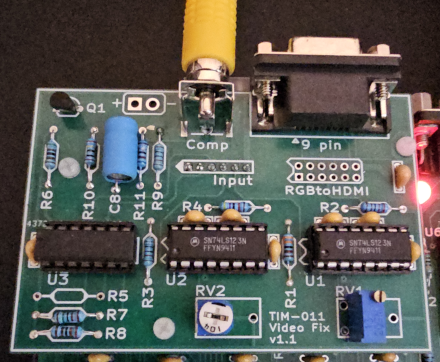

Video output board to create RGB and composite output from standard TIM-011 video signaling.
Early and original boards need a separate 5V power supply on the pin header provided.
Main components on the Tim011 video fix
Tim011 video fix bill of materials (BOM)
30 components, 24 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74LS123 | DIP-16_W7.62mm | U1, U2 |
| 1 | 74LS08 | DIP-14_W7.62mm | U3 |
| 1 | BC557 | TO-92_Inline_Wide | Q1 |
| 1 | Comp | RCA2 | J3 |
| 1 | 9 pin | TIM_DSUB-9 | J4 |
| 1 | Input | PinHeader_1x06 2.54mm | P1 |
| 1 | RGBtoHDMI | PinHeader_2x6_2.54mm | P2 |
| 1 | Power | 3.96mm Header 2-Pin | P3 |
| 1 | 50K | TIM Multi Pot | RV1 |
| 1 | 100K | TIM Multi Pot | RV2 |
| 1 | 1n | Ceramic Cap 5.00mm | C1 |
| 1 | 4n7 | Ceramic Cap 5.00mm | C2 |
| 2 | 10n | Ceramic Cap 5.00mm | C3, C4 |
| 3 | 100n | Ceramic Cap 5.00mm | C5, C6, C7 |
| 1 | 470uF 25v | Electrolytic Capacitor Axial or Radial Alt | C8 |
| 1 | 2n2 | Ceramic Cap 5.00mm | C9 |
| 1 | 3K3 | Resistor 12.7mm | R1 |
| 2 | 2K2 | Resistor 12.7mm | R2, R8 |
| 2 | 10K | Resistor 12.7mm | R3, R9 |
| 1 | 47K | Resistor 12.7mm | R4 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 5K1 | Resistor 12.7mm | R6 |
| 1 | 1K5 | Resistor 12.7mm | R7 |
| 1 | 220R | Resistor 12.7mm | R10 |
| 1 | 68R | Resistor 12.7mm | R11 |
Tim011 video fix design files
The KiCad project lives in the Board-Folk/TIM011B repository on GitHub; these links point at the commit this page was built from.
Tim011 video fix: common questions
How big is the Tim011 video fix PCB?
The Tim011 video fix measures 84.9 × 57.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Tim011 video fix?
30 components, from 24 distinct parts. The full bill of materials is listed on this page.
Where can I download the Tim011 video fix design files?
From the Board-Folk/TIM011B repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Tim011 video fix design in my own project?
The repository has no license, so all rights stay with Board-Folk. Use it as a reference, and ask the author before reusing the design.
