Boardoza MS5611 Barometric Pressure Sensor Breakout Board
About the Boardoza MS5611 Barometric Pressure Sensor Breakout Board
Boardoza MS5611 Barometric Pressure Sensor Breakout Board is an open source PCB design by Boardoza, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 20 × 20 mm, with 16 components from 8 distinct parts.
Other key parts include the TLV73333PDBVR and MS5611-01BA. By type, the board carries 7 resistors, 3 capacitors, 2 ICs, 2 transistors and 2 connectors.
It belongs with the sensors, dev boards & breakouts and test & measurement designs in this gallery.
From the project
MS5611 High-Resolution Barometric Pressure Sensor for Accurate Altitude Measurements Breakout Board.
The Boardoza MS5611 is a high-precision barometric pressure sensor module designed for altitude measurement, weather monitoring, and industrial pressure sensing. It integrates the MS5611-01BA03 digital pressure sensor, providing accurate pressure readings with ultra-low power consumption.
This module operates with 3.3V or 5V, making it compatible with a wide range of microcontrollers. It communicates via I2C by default, but can be switched to SPI mode using the PS pin. The CSB, SDO, and PS pins operate at 3.3V, ensuring easy interfacing with low-power microcontrollers.
Main components on the Boardoza MS5611 Barometric Pressure Sensor Breakout Board
Boardoza MS5611 Barometric Pressure Sensor Breakout Board bill of materials (BOM)
16 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TLV73333PDBVR | SOT-23-5 | U1 |
| 1 | MS5611-01BA | LGA-8_3x5mm_P1.25mm | U2 |
| 2 | 2N7002-7-F 2N7002_R1_00001 Diodes Incorporated | SOT-23-3 | Q1, Q2 |
| 1 | MOLEX_CONNECTOR_1X4 | 2317-04S_1x04_P2.50mm_Vertical | J1 |
| 1 | CONN_03 | 1X03 | J2 |
| 2 | 1uF | C_0603_1608Metric | C1, C2 |
| 1 | 100nF | C_0603_1608Metric | C3 |
| 7 | 10K | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7 |
Boardoza MS5611 Barometric Pressure Sensor Breakout Board design files
The KiCad project lives in the Boardoza/Boardoza_MS5611_Barometric_Pressure_Sensor_Breakout_Board repository on GitHub; these links point at the commit this page was built from.
Boardoza MS5611 Barometric Pressure Sensor Breakout Board: common questions
How big is the Boardoza MS5611 Barometric Pressure Sensor Breakout Board?

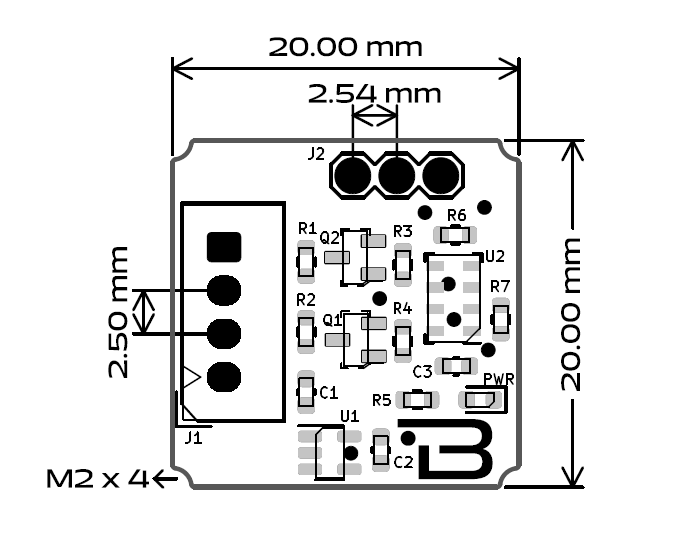

The Boardoza MS5611 Barometric Pressure Sensor Breakout Board measures 20 × 20 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Boardoza MS5611 Barometric Pressure Sensor Breakout Board?
16 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the Boardoza MS5611 Barometric Pressure Sensor Breakout Board design files?
From the Boardoza/Boardoza_MS5611_Barometric_Pressure_Sensor_Breakout_Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Boardoza MS5611 Barometric Pressure Sensor Breakout Board design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which Boardoza chose for the repository.
