Amigahid pico

borb·amigahid-pico·kicad/amigahid-pico.kicad_pcb

Amigahid pico PCB layout, top view — open source RP2040/RP2350 board by borb

About the Amigahid pico PCB

Amigahid pico is an open source RP2040/RP2350 PCB design by borb, published on GitHub. It is a 2-layer board measuring 61.7 × 72.4 mm, with 57 components from 9 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 33 resistors, 17 transistors, 6 connectors and 1 IC.

It belongs with the retro computing, keyboards and dev boards & breakouts designs in this gallery.

From the project

Use USB input devices on Amiga computers, using the excellent Raspberry Pi Pico as a USB-to-bitbang adapter.

please note: the interesting stuff goes into the development branch, so if main seems slow, check it out.

amigahid-pico uses the rp2040 microcontroller (e.g. the raspberry pi pico) in a carrier board to attach usb input devices to a standard amiga without the need for a usb stack on the amiga itself.

it currently supports keyboards and mice and provides connection via the internal keyboard connector, the rj11/din socket on big-box amigas, and via the controller ports.

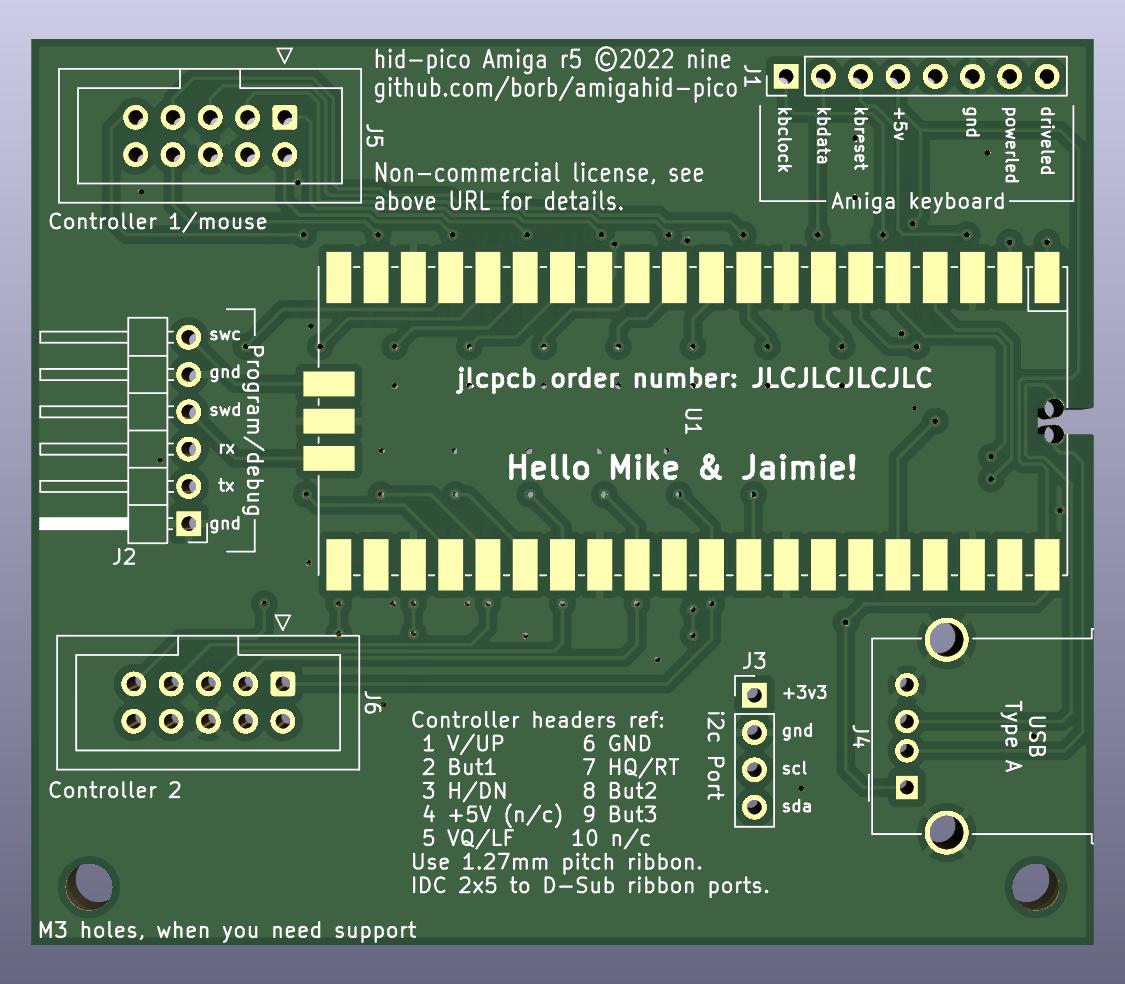

Amigahid pico, from the project README
From the project README

Main components on the Amigahid pico

Pico

Amigahid pico bill of materials (BOM)

57 components, 9 distinct parts.

QtyPartRefs
1
Pico
U1
17
BSS138
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +9
1
Amiga Keyboard
J1
1
Debug/programming
J2
1
i2c header
J3
1
USB_A
J4
1
Controller 1
J5
1
Controller 2
J6
33
R1002
R1, R2, R3, R4, R5, R6, R7, R8 +25

Amigahid pico design files

The KiCad project lives in the borb/amigahid-pico repository on GitHub; these links point at the commit this page was built from.

Amigahid pico: common questions

What microcontroller does the Amigahid pico use?

The Amigahid pico is built around the Pico, from the RP2040/RP2350 family.

How big is the Amigahid pico PCB?

The Amigahid pico measures 61.7 × 72.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Amigahid pico?

57 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Amigahid pico design files?

From the borb/amigahid-pico repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Amigahid pico design in my own project?

The repository has no license, so all rights stay with borb. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Amigahid pico without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
