FPV-DRONE PCB layout, top view — open source board by bottlecoder-raj

About the FPV-DRONE PCB

FPV-DRONE is an open source PCB design by bottlecoder-raj, published on GitHub. It is a 2-layer board measuring 29.8 × 56.2 mm, with 22 components from 8 distinct parts.

Other key parts include the DEVKIT_V1_ESP32-WROOM-32 and OC09600. By type, the board carries 5 connectors, 4 modules, 4 diodes, 4 resistors, 3 capacitors and 2 ICs.

It belongs with the robotics & motion, power & battery and sensors designs in this gallery.

From the project

Personal drone project FPV

1. Microcontroller (e.g., Arduino, Raspberry Pi) 2. Radio Transmitter and Receiver 3. Power Supply (e.g., batteries) 4. Joystick or Control Interface

Drones | How do they work? What is a Flight Controller? How Flight Controllers Work (so I built my own) What is a Motor Driver? How does the actual FPV Controller works? FPV RADIO vs. GAME CONTROLLER for FPV Drone Sims

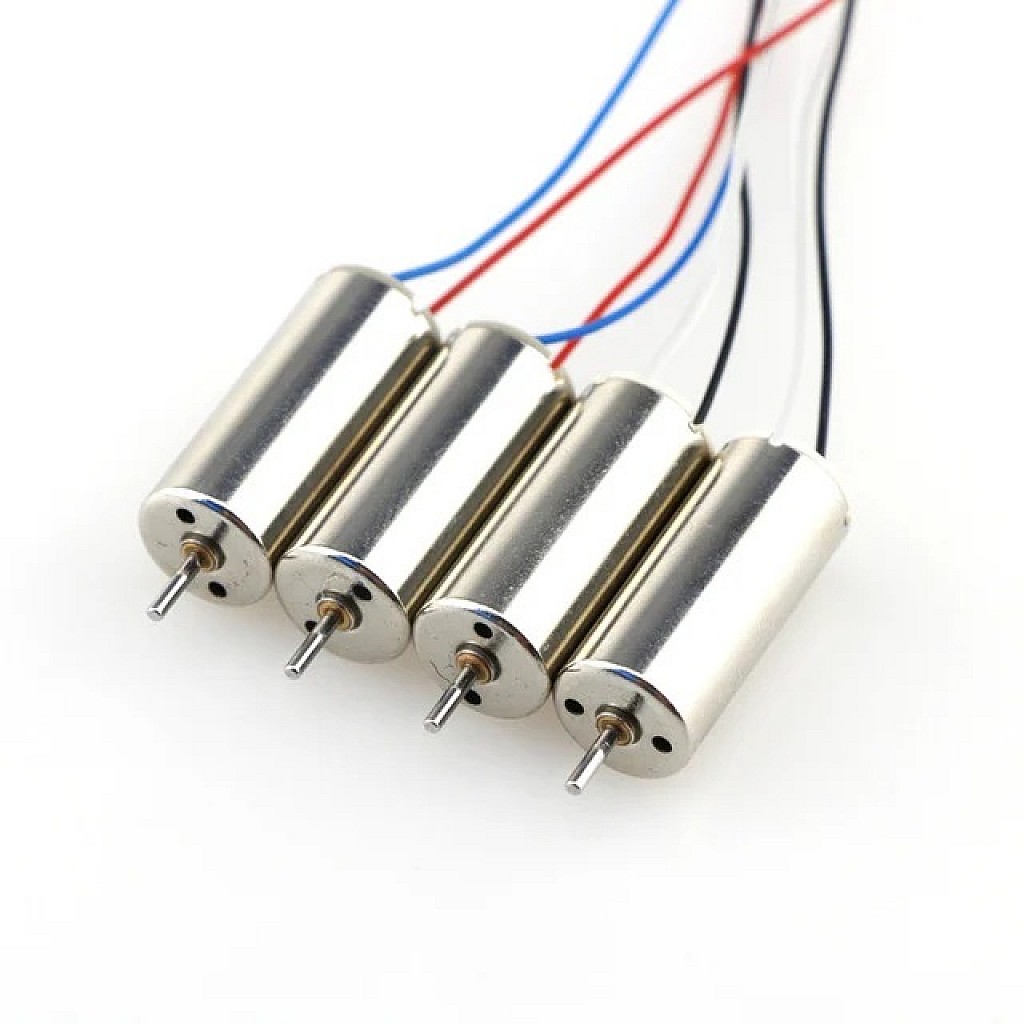

FPV-DRONE, from the project README
From the project README

Main components on the FPV-DRONE

DEVKIT_V1_ESP32-WROOM-32OC09600

FPV-DRONE bill of materials (BOM)

22 components, 8 distinct parts.

QtyPartRefs
1
DEVKIT_V1_ESP32-WROOM-32
U1
1
OC09600
U2
4
SI2300
M1, M2, M3, M4
5
Conn_01x02_Pin
J1, J2, J3, J4, J8
4
1N4148W-7-F
D1, D2, D3, D4
2
0.1uf
C1, C8
1
10uf
C2
4
10K
R1, R2, R3, R4

FPV-DRONE design files

The KiCad project lives in the bottlecoder-raj/FPV-DRONE repository on GitHub; these links point at the commit this page was built from.

FPV-DRONE: common questions

How big is the FPV-DRONE PCB?

The FPV-DRONE measures 29.8 × 56.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the FPV-DRONE?

22 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the FPV-DRONE design files?

From the bottlecoder-raj/FPV-DRONE repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the FPV-DRONE design in my own project?

The repository has no license, so all rights stay with bottlecoder-raj. Use it as a reference, and ask the author before reusing the design.
