Kicad iot sensor board

bradleybeatz1313·kicad-iot-sensor-board·hardware/schematic/iot-sensor-board.kicad_sch

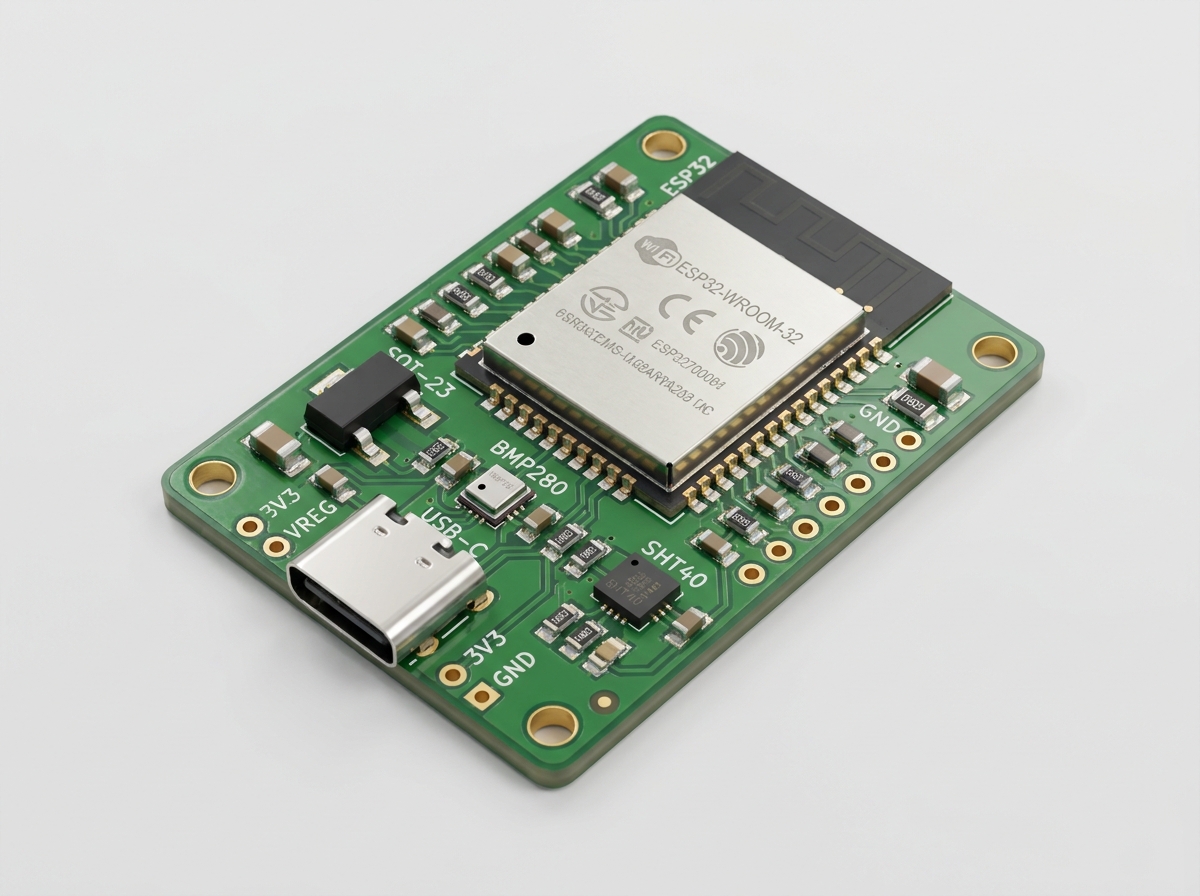

Kicad iot sensor board
Simulate this board

About the Kicad iot sensor board

Kicad iot sensor board is an open source ESP32 PCB design by bradleybeatz1313, published on GitHub. It is a board, with 9 components from 8 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N8R2, from the ESP32 family. Other key parts include the AP2112K-3.3TRG1 and USBLC6-2SC6. By type, the board carries 3 ICs, 3 capacitors, 1 connector, 1 diode and 1 resistor.

It belongs with the iot & wireless, sensors and power & battery designs in this gallery.

From the project

4-layer ESP32-S3 IoT environmental sensor PCB — KiCAD 8

A 4-layer PCB design for an ESP32-S3-based environmental monitoring node. Captures temperature, humidity, barometric pressure, and air quality data over Wi-Fi/BLE.

- [x] ERC: 0 errors, 0 warnings - [x] DRC: 0 violations (6/6 mil trace/space, 0.3mm min drill) - [x] BOM cross-referenced against LCSC/DigiKey availability - [x] Thermal simulation: LDO junction temp 62°C @ 85mA (within spec) - [x] I2C signal integrity verified in Ngspice (see ../ngspice-analog-simulations/)

Main components on the Kicad iot sensor board

ESP32-S3-WROOM-1-N8R2AP2112K-3.3TRG1USBLC6-2SC6

Kicad iot sensor board bill of materials (BOM)

9 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1-N8R2
ESP32-S3-WROOM-1
Espressif
U1
1
AP2112K-3.3TRG1
AP2112K-3.3
Diodes Inc
U2
1
USBLC6-2SC6
STMicroelectronics
U3
1
USB4105-GF-A
USB_C_Receptacle
GCT
J1
1
19-217/GHC-YR1S2/3T
Green 0402
Everlight
D1
2
CL10A106KP8NNNC
10µF/10V X5R
Samsung
C1, C2
1
CL05B104KO5NNNC
100nF/16V X7R
Samsung
C3
1
RC0402FR-071K5L
1.5kΩ
Yageo
R1

Kicad iot sensor board design files

The KiCad project lives in the bradleybeatz1313/kicad-iot-sensor-board repository on GitHub; these links point at the commit this page was built from.

Kicad iot sensor board: common questions

What microcontroller does the Kicad iot sensor board use?

The Kicad iot sensor board is built around the ESP32-S3-WROOM-1-N8R2, from the ESP32 family.

How many components are on the Kicad iot sensor board?

9 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Kicad iot sensor board design files?

From the bradleybeatz1313/kicad-iot-sensor-board repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the Kicad iot sensor board design in my own project?

The repository has no license, so all rights stay with bradleybeatz1313. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Kicad iot sensor board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
