Zoxnoxious Pole Dancer Mixing Filter

brer-rabbit·zoxnoxious·kicad/poledancer/poledancer.kicad_pcb

Zoxnoxious Pole Dancer Mixing Filter PCB layout, top view — open source board by brer-rabbit
Simulate this board

About the Zoxnoxious Pole Dancer Mixing Filter PCB

Zoxnoxious Pole Dancer Mixing Filter is an open source PCB design by brer-rabbit, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 80 × 80 mm, with 150 components from 46 distinct parts.

Other key parts include the C96507, SSI2190, AS3364, SSI2140 and C29162. By type, the board carries 83 resistors, 45 capacitors, 14 ICs, 3 connectors, 2 diodes and 1 transistor.

It belongs with the audio designs in this gallery.

From the project

Analog synth / software interface

The Pole Dancer may be the most versatile analog synthesizer filter. Built around an SSI2140 four pole filter and an SSI2190 mixer provides the pole mixing. A number of filter modes are possible using the filter mixing. The real fun is morphing between filter modes, which can be done with manipulating the '2190 mixer.

Multiple resonance compensation modes, in addition to uncompensated, give a wide range of character.

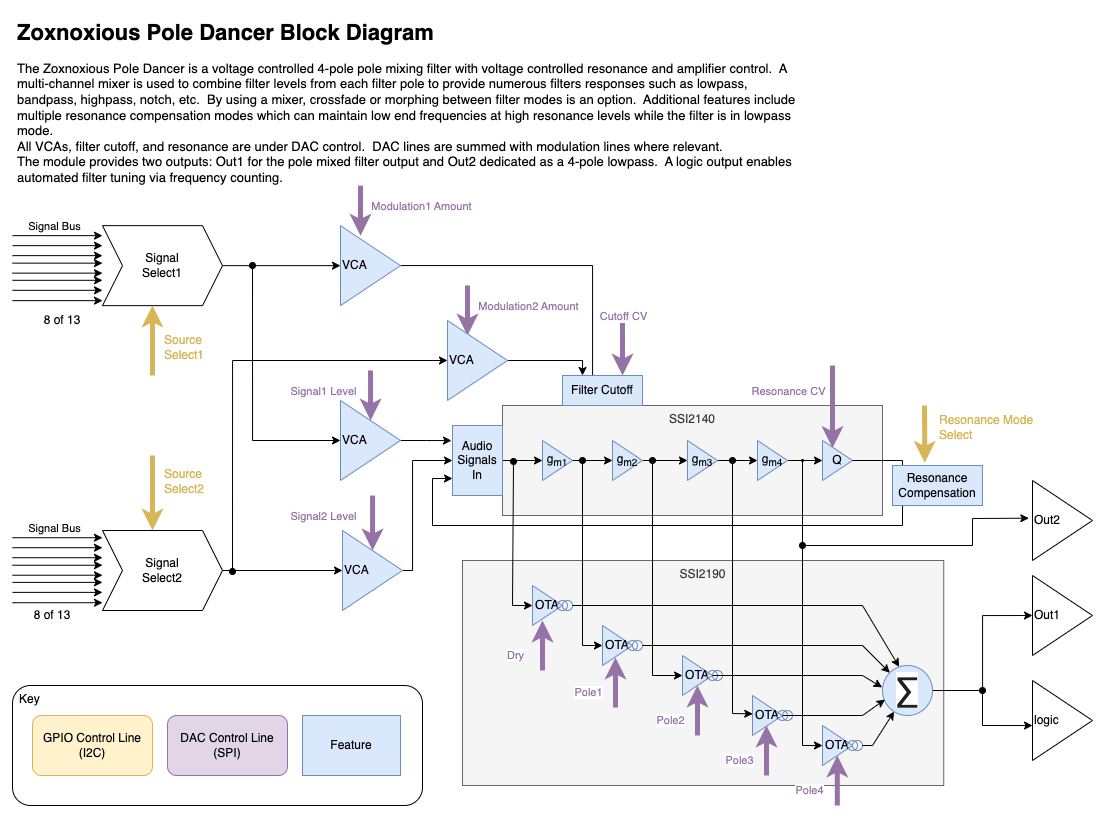

Zoxnoxious Pole Dancer Mixing Filter, from the project README
From the project README

Main components on the Zoxnoxious Pole Dancer Mixing Filter

C96507SSI2190AS3364SSI2140C29162C2673321C111866C2673104C7562C83265

Zoxnoxious Pole Dancer Mixing Filter bill of materials (BOM)

150 components, 46 distinct parts — part numbers from the project's BOM.

QtyPartRefs
3
C96507
TL074
U1, U4, U10
1
SSI2190
U2
1
AS3364
U3
1
SSI2140
U5
2
C29162
AD5328
U6, U14
1
C2673321
DG442xY
U7
1
C111866
LM4040AIM3-2.5
U8
2
C2673104
PS508
U9, U11
1
C7562
M24C02-WMN
U12
1
C83265
PCA9555D
U13
1
C20526
MMBT3904
Q1
1
Conn_01x01
J1
1
Conn_01x02
J2
1
Conn_02x20_Odd_Even
J3
2
5k
RV1, RV2
1
C81598
1N4148W
D1
1
C2286
LED
D2
25
C14663
0.1u
C1, C2, C3, C4, C5, C8, C10, C11 +17
6
C1622
47n
C6, C7, C22, C25, C27, C34
2
C19666
4u7
C9, C44
Show 26 more
QtyPartRefs
1
C53987
4n7
C13
4
1000p
C14, C16, C17, C18
1
C23630
2u2
C21
4
C21122
22n
C23, C39, C40, C41
1
C1653
22p
C30
1
C14858
100p
C36
11
C4184
20k
R1, R2, R18, R19, R24, R28, R33, R41 +3
12
C22962
220
R3, R5, R7, R8, R20, R21, R22, R26 +4
6
C25803
100k
R4, R25, R58, R60, R63, R64
4
C8218
200
R6, R35, R46, R47
13
C25804
10k
R9, R10, R11, R34, R36, R37, R39, R42 +5
5
C25810
18k
R12, R74, R76, R77, R78
11
C4260
6k2
R13, R14, R16, R17, R40, R48, R50, R51 +3
2
C23018
3k9
R15, R54
3
C22809
15k
R23, R43, R70
1
C22775
100
R29
1
C22790
12k
R38
1
C21190
1k
R44
2
C4211
3k
R52, R72
1
C23186
5k1
R59
2
C23197
51
R62, R65
1
C22807
150k
R66
1
C4216
33k
R68
1
C23352
24k
R69
4
C23254
82k
R73, R79, R80, R81
1
C23162
4k7
R82

Zoxnoxious Pole Dancer Mixing Filter design files

The KiCad project lives in the brer-rabbit/zoxnoxious repository on GitHub; these links point at the commit this page was built from.

Zoxnoxious Pole Dancer Mixing Filter: common questions

How big is the Zoxnoxious Pole Dancer Mixing Filter PCB?

The Zoxnoxious Pole Dancer Mixing Filter measures 80 × 80 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Zoxnoxious Pole Dancer Mixing Filter?

150 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Zoxnoxious Pole Dancer Mixing Filter design files?

From the brer-rabbit/zoxnoxious repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Zoxnoxious Pole Dancer Mixing Filter design in my own project?

Yes, under the terms of its GPL-3.0 license, which brer-rabbit chose for the repository.
