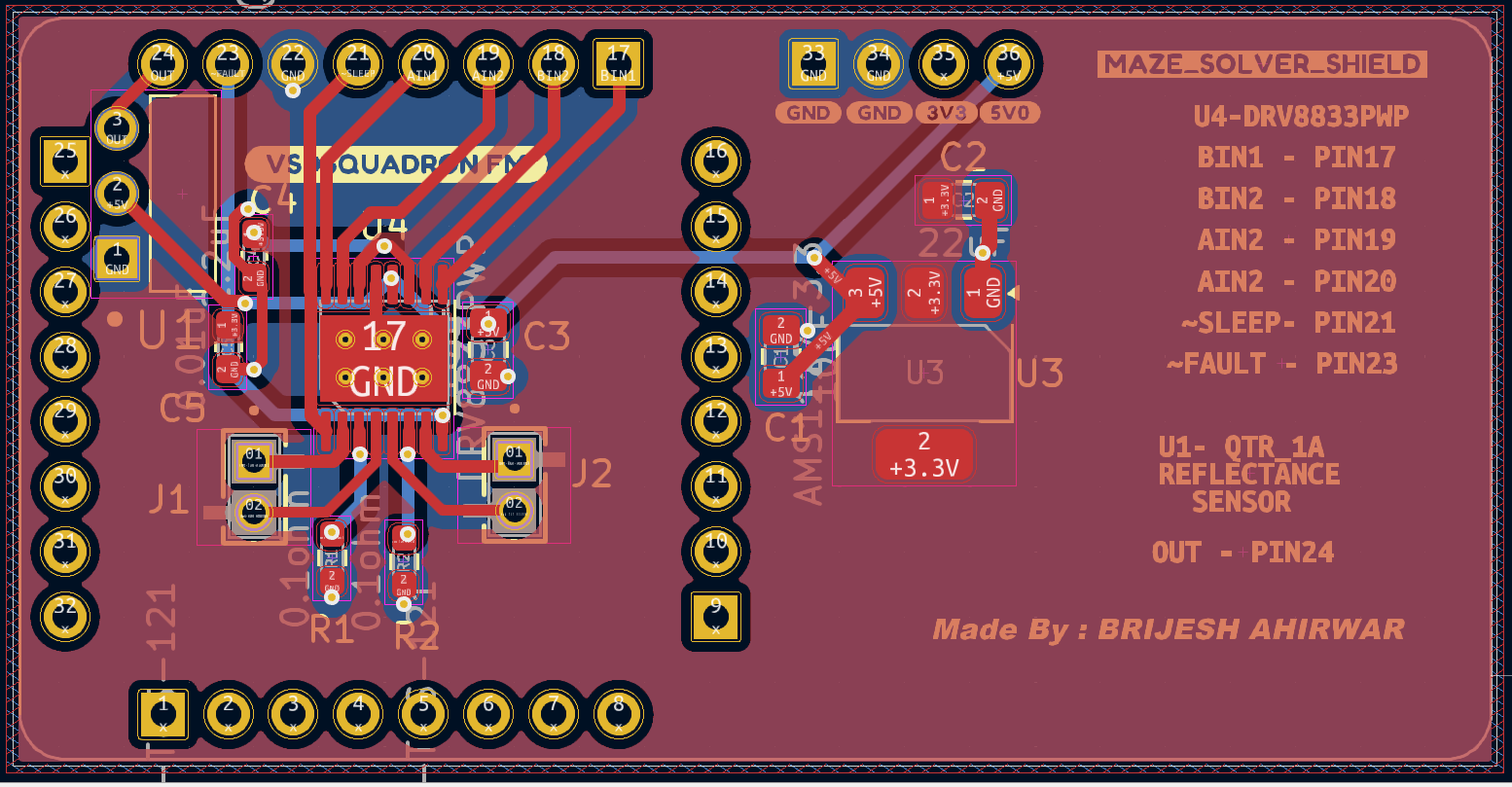

Maze Solver Shield VSDSquadron
About the Maze Solver Shield VSDSquadron
Maze Solver Shield VSDSquadron is an open source PCB design by brijeshahirwar100, published on GitHub. It is a 4-layer board measuring 57.9 × 29.5 mm, with 13 components from 10 distinct parts.
Other key parts include the QTR-1A_REFLECTANCE_SENSOR, ------, AMS1117-3.3 and DRV8833PWP. By type, the board carries 5 capacitors, 4 ICs, 2 connectors and 2 resistors.
It belongs with the robotics & motion, dev boards & breakouts and sensors designs in this gallery.
Main components on the Maze Solver Shield VSDSquadron
Maze Solver Shield VSDSquadron bill of materials (BOM)
13 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | QTR-1A_REFLECTANCE_SENSOR | SENSOR_QTR-1A_REFLECTANCE_SENSOR | U1 |
| 1 | ------ VSDSquadron FM | VSDSquadron_FM | U2 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U3 |
| 1 | DRV8833PWP | HTSSOP-16-1EP_4.4x5mm_P0.65mm_EP3.4x5mm_Mask2.46x2.31mm_ThermalVias | U4 |
| 2 | MTMM-102-03-T-S-121 | SAMTEC_MTMM-102-03-T-S-121 | J1, J2 |
| 2 | 10UF 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C3 |
| 1 | 22UF 22uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2 |
| 1 | 2.2UF 2.2uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4 |
| 1 | 0.01UF 0.01uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C5 |
| 2 | 0.1OHM 0.1ohm | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
Maze Solver Shield VSDSquadron design files
The KiCad project lives in the brijeshahirwar100/Maze_Solver_Shield_VSDSquadron repository on GitHub; these links point at the commit this page was built from.
Maze Solver Shield VSDSquadron: common questions
How big is the Maze Solver Shield VSDSquadron?
The Maze Solver Shield VSDSquadron measures 57.9 × 29.5 mm, has 4 copper layers and is 1.600198 mm thick.
How many components are on the Maze Solver Shield VSDSquadron?
13 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Maze Solver Shield VSDSquadron design files?
From the brijeshahirwar100/Maze_Solver_Shield_VSDSquadron repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Maze Solver Shield VSDSquadron design in my own project?
The repository has no license, so all rights stay with brijeshahirwar100. Use it as a reference, and ask the author before reusing the design.
