Custom-Reflow-Oven

About the Custom-Reflow-Oven PCB

Custom-Reflow-Oven is an open source AVR/Arduino PCB design by C-yue28, published on GitHub. It is a board, with 10 components from 8 distinct parts.

Its main chip is the Arduino_UNO_R3, from the AVR/Arduino family. Other key parts include the SSR-25DA, 74HC595, LCD1602 and MAX6675. By type, the board carries 4 ICs, 3 switches and 1 module.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

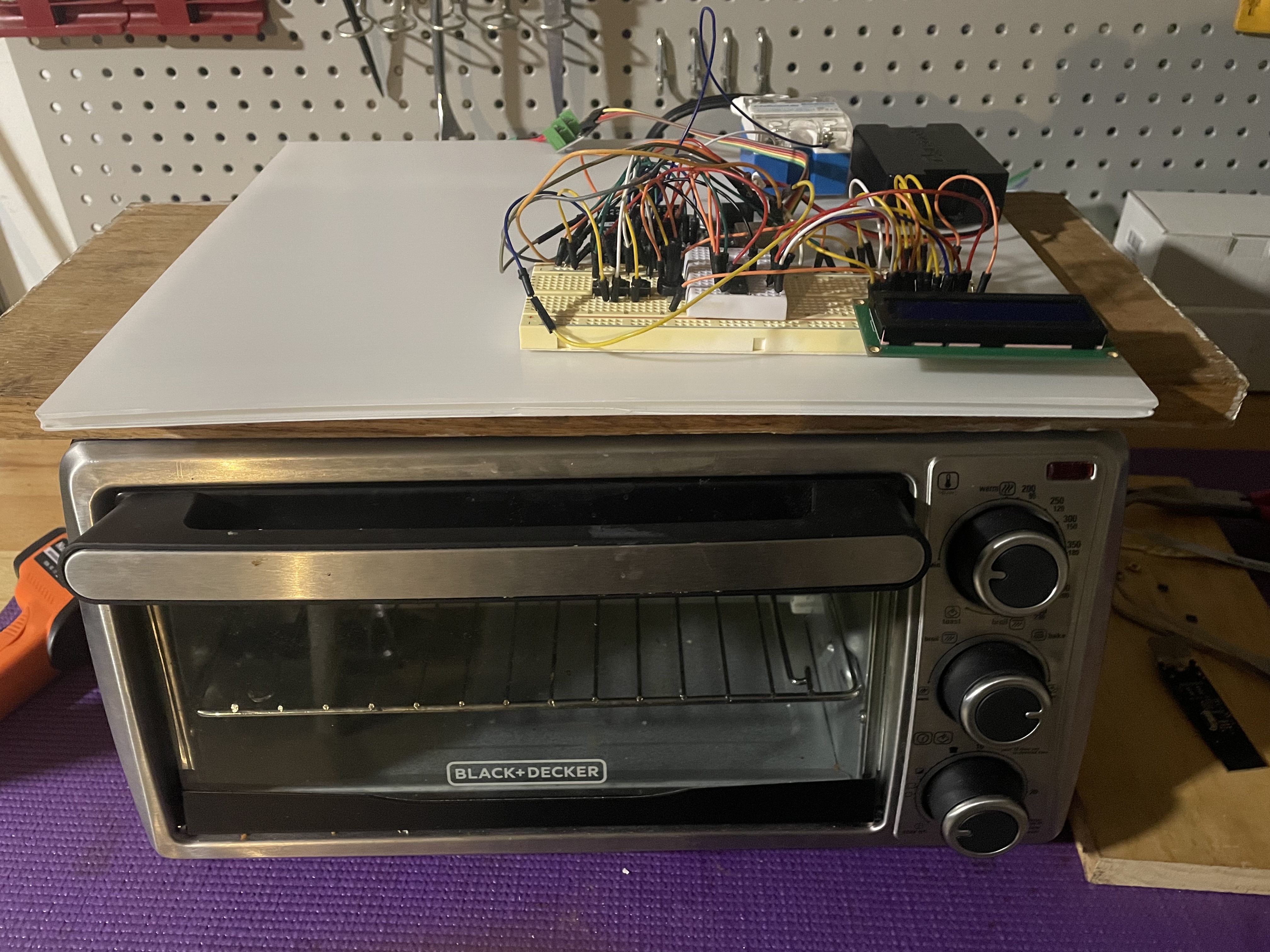

Reflow oven for PCB assembly and SMD component soldering, with a tuned PID loop to follow the optimal soldering profile of any paste type.

Main components on the Custom-Reflow-Oven

SSR-25DA74HC595LCD1602MAX6675Arduino_UNO_R3

Custom-Reflow-Oven bill of materials (BOM)

10 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SSR-25DA
U1
1
74HC595
U2
1
LCD1602
U3
1
MAX6675
U4
1
Arduino_UNO_R3
A1
1
10K
RV1
3
SW_Push
SW1, SW2, SW3
1
K-type thermocouple
TC1

Custom-Reflow-Oven design files

The KiCad project lives in the C-yue28/Custom-Reflow-Oven repository on GitHub; these links point at the commit this page was built from.

Custom-Reflow-Oven: common questions

What microcontroller does the Custom-Reflow-Oven use?

The Custom-Reflow-Oven is built around the Arduino_UNO_R3, from the AVR/Arduino family.

How many components are on the Custom-Reflow-Oven?

10 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Custom-Reflow-Oven design files?

From the C-yue28/Custom-Reflow-Oven repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the Custom-Reflow-Oven design in my own project?

The repository has no license, so all rights stay with C-yue28. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Custom-Reflow-Oven without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
