65c02board
About the 65c02board PCB
65c02board is an open source PCB design by c0pperdragon, published on GitHub. It is a 2-layer board measuring 22.9 × 83.8 mm, with 6 components from 5 distinct parts.
Other key parts include the W65C02 and 74HC00. By type, the board carries 2 ICs, 2 capacitors, 1 connector and 1 resistor.
It belongs with the retro computing designs in this gallery.
From the project
A generic main board to build 8-bit computers
The 6502 is one of the best known 8-bit processors as various variants of it were used in many 8-bit computers of the 80th. Apple, Commodore, Atari, Acorn and many other manufacturers used this CPUs to drive their products. Genuine old parts may probably be difficult to get, but luckily there is a not-so-modern variant that is still in production: WD65c02.

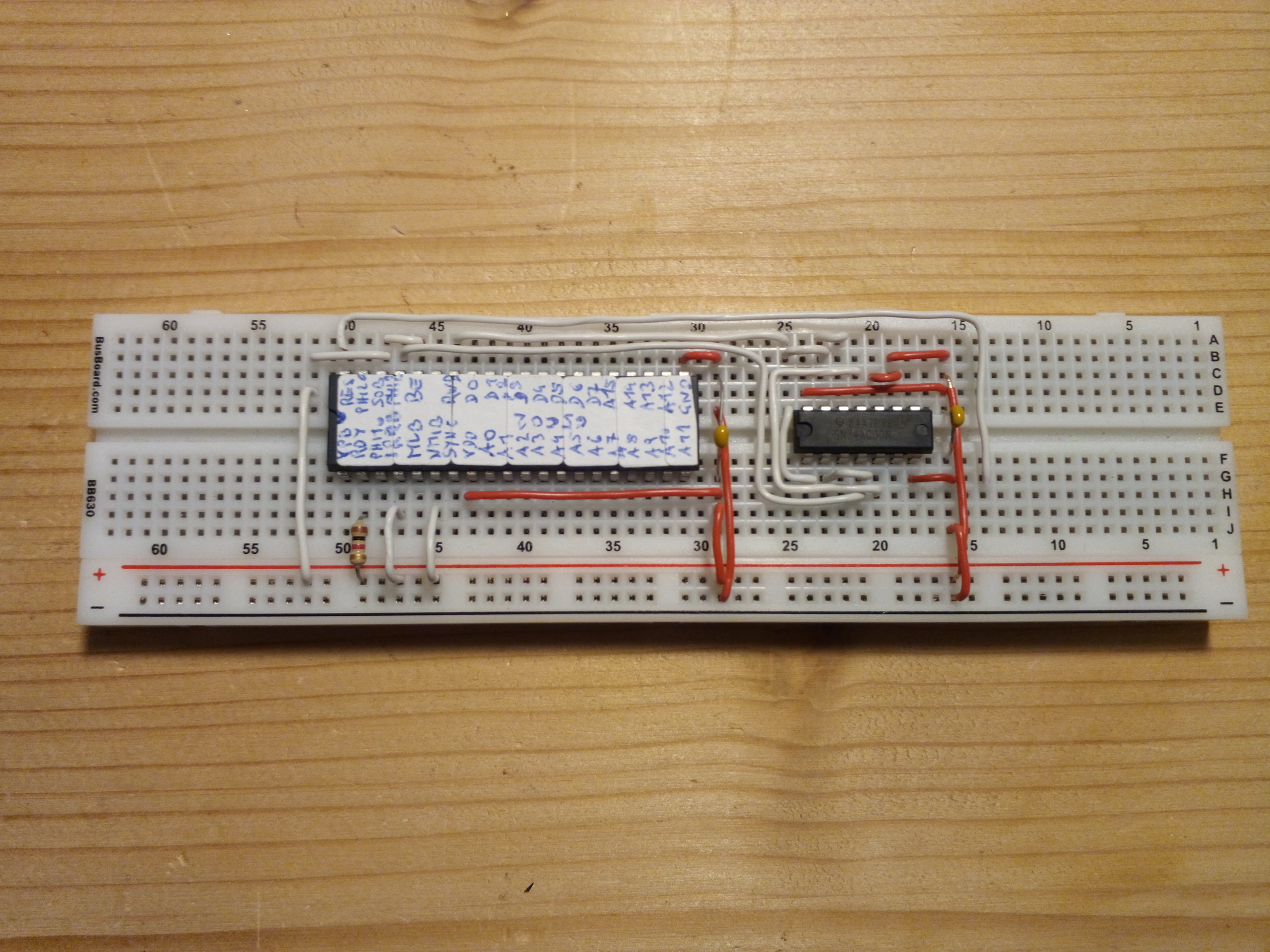

It is relatively simple to wire up this chip to the ByteMachine. You basically need one additional 74HC00 chip (quad NAND). In my tests, this setup is able to run at 16Mhz without any issue. Even 20Mhz were possible with a bit of extra…
Main components on the 65c02board
65c02board bill of materials (BOM)
6 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W65C02 | DIP-40_W15.24mm_Socket | U1 |
| 1 | 74HC00 | DIP-14_W7.62mm_Socket | U2 |
| 1 | Conn_01x34_Male | PinHeader_1x34_P2.54mm_Vertical | J1 |
| 2 | 100nF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C1, C2 |
| 1 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
65c02board design files
The KiCad project lives in the c0pperdragon/ByteMachine repository on GitHub; these links point at the commit this page was built from.
65c02board: common questions
How big is the 65c02board PCB?
The 65c02board measures 22.9 × 83.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 65c02board?
6 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the 65c02board design files?
From the c0pperdragon/ByteMachine repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the 65c02board design in my own project?
The repository has no license, so all rights stay with c0pperdragon. Use it as a reference, and ask the author before reusing the design.
