Bidirectional tester

c3am·capacitest·bidirectional-tester/bidirectional-tester.kicad_pcb

Bidirectional tester PCB layout, top view — open source RISC-V board by c3am

About the Bidirectional tester PCB

Bidirectional tester is an open source RISC-V PCB design by c3am, published on GitHub. It is a 2-layer board measuring 68 × 60 mm, with 70 components from 26 distinct parts.

Its main chip is the CH32V003FxUx, from the RISC-V family. Other key parts include the ADS1115IDGS, INA181, REF3020, IR2101 and AMS1117-5.0. By type, the board carries 21 capacitors, 18 resistors, 10 ICs, 6 connectors, 4 transistors and 4 switches.

It belongs with the power & battery designs in this gallery.

From the project

A low cost single cell battery capacity tester based on using the ch32v003.

- ADS 1115 for current and voltage sensing - ina181a2 + ref2020(2V Vref) for current sense amplification - ir2101 low+high side mosfet drivers - ceramic capacitors only - the two bidirectional buck-/boost-converters each have 1uH SMD inductors, 200uF on the cell and 66uF capacitance on the ~12V battery side - 0.9" i2c oled screen

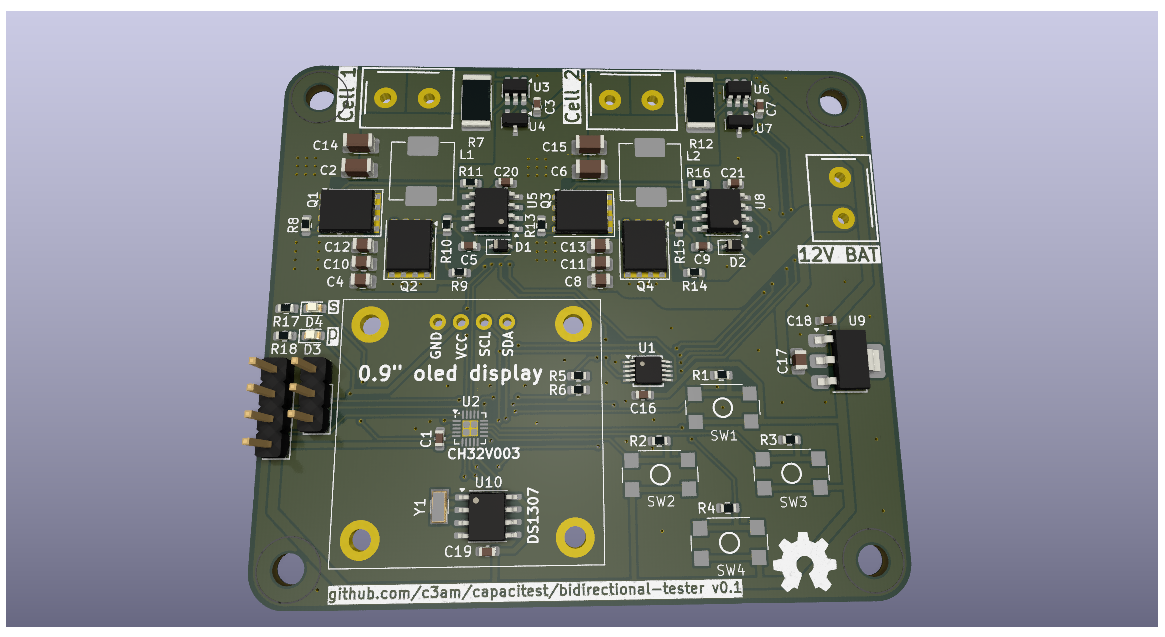

Bidirectional tester, from the project README
From the project README

Main components on the Bidirectional tester

ADS1115IDGSCH32V003FxUxINA181REF3020IR2101AMS1117-5.0DS1307Z+

Bidirectional tester bill of materials (BOM)

70 components, 26 distinct parts.

QtyPartRefs
1
ADS1115IDGS
U1
1
CH32V003FxUx
U2
2
INA181
U3, U6
2
REF3020
U4, U7
2
IR2101
U5, U8
1
AMS1117-5.0
U9
1
DS1307Z+
U10
4
Q_NMOS_SGD
Q1, Q2, Q3, Q4
1
Crystal
Y1
3
Conn_01x02
J1, J5, J6
1
Conn_01x03
J2
1
Conn_01x04
J3
1
Conn_01x04
J4
4
SW_SPST
SW1, SW2, SW3, SW4
2
1N4148WS
D1, D2
2
LED
D3, D4
2
1u
L1, L2
10
10u
C1, C3, C5, C7, C9, C16, C18, C19 +2
4
100u
C2, C6, C14, C15
6
22u
C4, C8, C10, C11, C12, C13
Show 6 more
QtyPartRefs
1
10u
C17
9
100k
R1, R2, R3, R4, R6, R8, R9, R13 +1
1
300k
R5
2
10m
R7, R12
4
100
R10, R11, R15, R16
2
1k
R17, R18

Bidirectional tester design files

The KiCad project lives in the c3am/capacitest repository on GitHub; these links point at the commit this page was built from.

Bidirectional tester: common questions

What microcontroller does the Bidirectional tester use?

The Bidirectional tester is built around the CH32V003FxUx, from the RISC-V family.

How big is the Bidirectional tester PCB?

The Bidirectional tester measures 68 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bidirectional tester?

70 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bidirectional tester design files?

From the c3am/capacitest repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Bidirectional tester design in my own project?

The repository has no license, so all rights stay with c3am. Use it as a reference, and ask the author before reusing the design.
