ZK-4KXPowerSupplyWithFan

CatalinSerafimescu·ZK-4KXPowerSupplyWithFan·KiCAD/SursaTensiune.kicad_pcb

ZK-4KXPowerSupplyWithFan PCB layout, top view — open source board by CatalinSerafimescu

About the ZK-4KXPowerSupplyWithFan PCB

ZK-4KXPowerSupplyWithFan is an open source PCB design by CatalinSerafimescu, published on GitHub under the Custom license license. It is a 2-layer board measuring 90 × 66 mm, with 19 components from 14 distinct parts.

Other key parts include the LM317T, LM358AP and UA78L05. By type, the board carries 5 capacitors, 5 resistors, 3 ICs, 3 connectors and 1 diode.

It belongs with the power & battery and sensors designs in this gallery.

From the project

ZK-4KX power supply enclosure with automated fan

A bench power supply built around the cheap ZK-4KX buck-boost panel module (IN 5–30 V, OUT 0.5–30 V, datasheet), with a 3D-printed case and a small add-on board that runs a cooling fan only when the module gets warm, faster as it gets hotter. Everything runs from the same DC input (9 V / 2 A adapter tested, up to ~28 V supported).

- Single-sided PCB, 90 × 66 mm, designed for home etching (toner transfer, no vias, no jumpers) — Gerbers included if you'd rather order it. - Through-hole parts only: LM35, LM358, LM317, 78L05, one trimmer. - Fan off below a start temperature you set with the…

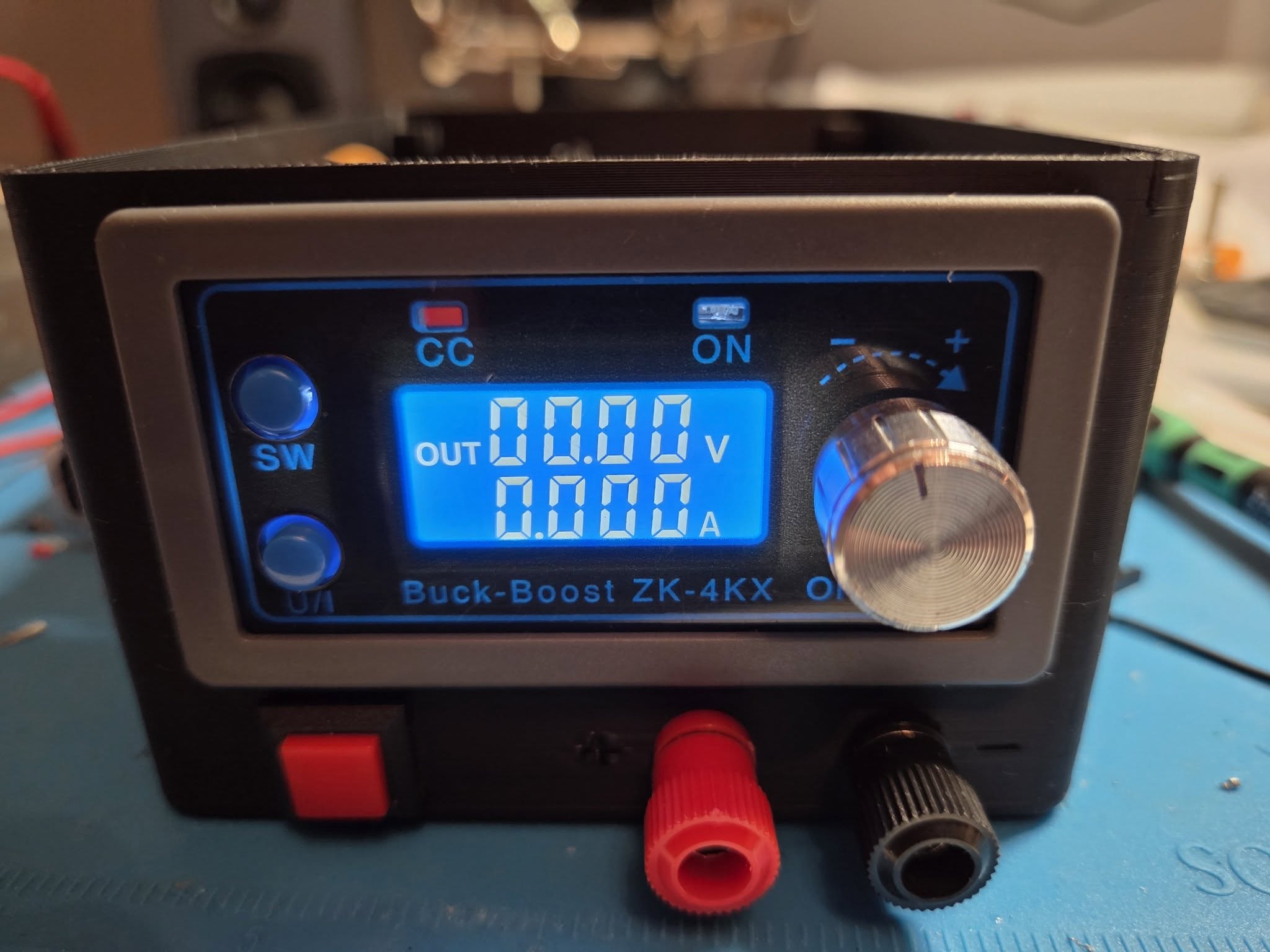

ZK-4KXPowerSupplyWithFan, from the project README
From the project README

Main components on the ZK-4KXPowerSupplyWithFan

LM317TLM358APUA78L05

ZK-4KXPowerSupplyWithFan bill of materials (BOM)

19 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LM317T
U1
1
LM358AP
U2
1
UA78L05
U3
1
IN 9-30V
J1
1
LM35
J2
1
FAN 5V
J3
1
RAD-DY-KY/3
HS1
1
10K
10k
RV1
1
1N4007
D1
3
K104K10X7RF5UH5
100 nF
C1, C3, C5
2
10 µF
C2, C4
3
100 kΩ
R1, R3, R5
1
10 kΩ
R2
1
220 Ω
R4

ZK-4KXPowerSupplyWithFan design files

The KiCad project lives in the CatalinSerafimescu/ZK-4KXPowerSupplyWithFan repository on GitHub; these links point at the commit this page was built from.

ZK-4KXPowerSupplyWithFan: common questions

How big is the ZK-4KXPowerSupplyWithFan PCB?

The ZK-4KXPowerSupplyWithFan measures 90 × 66 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ZK-4KXPowerSupplyWithFan?

19 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ZK-4KXPowerSupplyWithFan design files?

From the CatalinSerafimescu/ZK-4KXPowerSupplyWithFan repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ZK-4KXPowerSupplyWithFan design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
