ESP32-S3-VGA-ADAPTOR PCB layout, top view — open source ESP32 board by cfrankb

About the ESP32-S3-VGA-ADAPTOR PCB

ESP32-S3-VGA-ADAPTOR is an open source ESP32 PCB design by cfrankb, published on GitHub. It is a 2-layer board measuring 100 × 50 mm, with 31 components from 15 distinct parts.

Its main chip is the ESP32-S3-DEVKITC-1-N8R2, from the ESP32 family. By type, the board carries 18 resistors, 12 connectors and 1 IC.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

VGA ESP32-S3 Breakout board for WROOM1- DevKit

Implementing a discrete DAC R-2R allows for full control over the signal chain and demonstrates the ability to interface digital MCUs with legacy analog standards without relying on specialized external ICs

Colors are encoded as unsigned 16bits integer (B5G6R5).

The five (5) lowest bits are red and in accending order of brigtness. The next six (6) bits are green and the last five (5) bits are blue.

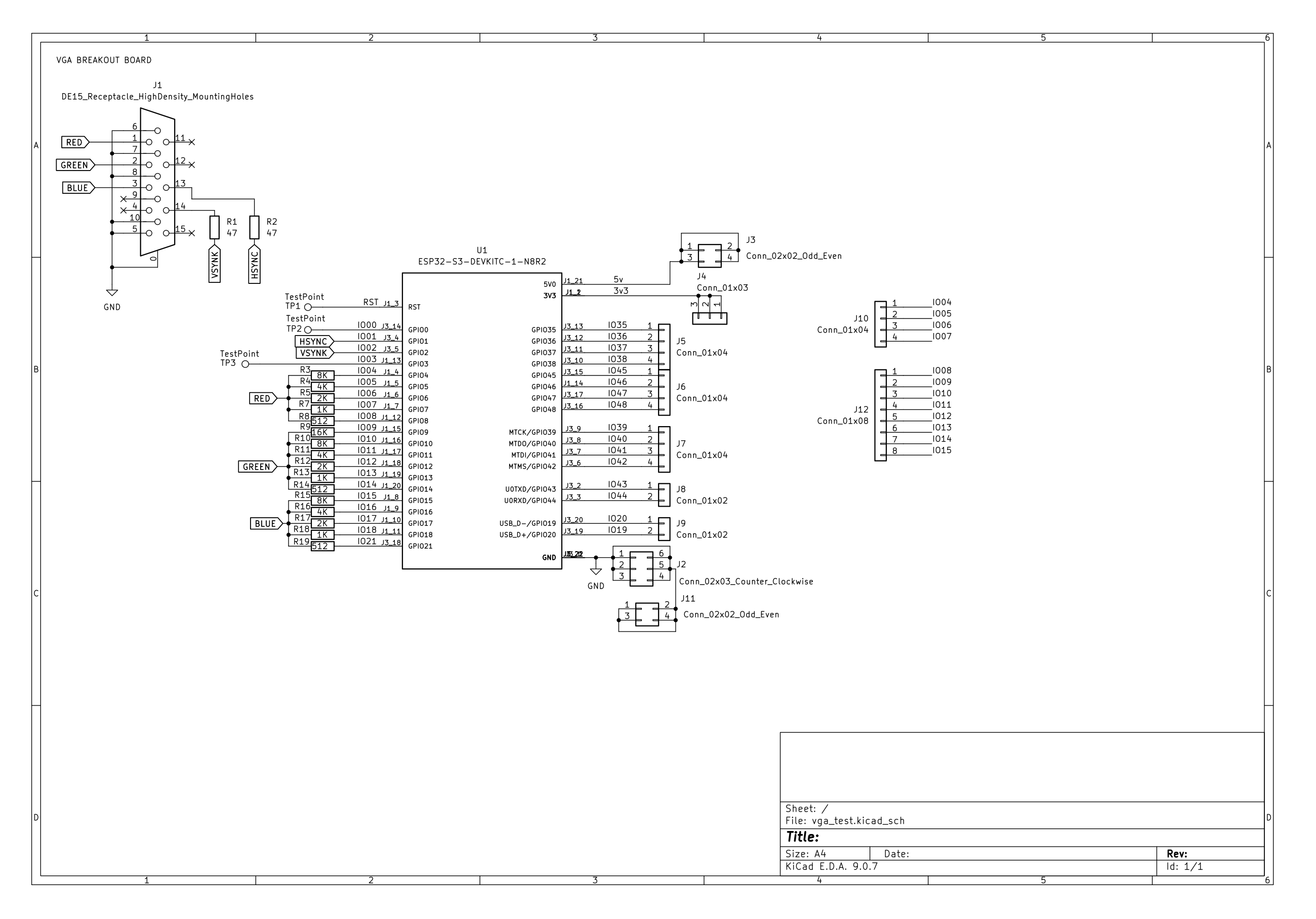

ESP32-S3-VGA-ADAPTOR, from the project README
From the project README

Main components on the ESP32-S3-VGA-ADAPTOR

ESP32-S3-DEVKITC-1-N8R2

ESP32-S3-VGA-ADAPTOR bill of materials (BOM)

31 components, 15 distinct parts.

QtyPartRefs
1
ESP32-S3-DEVKITC-1-N8R2
U1
1
DE15_Receptacle_HighDensity_MountingHoles
J1
1
Conn_02x03_Counter_Clockwise
J2
2
Conn_02x02_Odd_Even
J3, J11
1
Conn_01x03
J4
4
Conn_01x04
J5, J6, J7, J10
2
Conn_01x02
J8, J9
1
Conn_01x08
J12
2
47
R1, R2
3
8K
R3, R10, R15
3
4K
R4, R11, R16
3
2K
R5, R12, R17
3
1K
R7, R13, R18
3
512
R8, R14, R19
1
16K
R9

ESP32-S3-VGA-ADAPTOR design files

The KiCad project lives in the cfrankb/ESP32-S3-VGA-ADAPTOR repository on GitHub; these links point at the commit this page was built from.

ESP32-S3-VGA-ADAPTOR: common questions

What microcontroller does the ESP32-S3-VGA-ADAPTOR use?

The ESP32-S3-VGA-ADAPTOR is built around the ESP32-S3-DEVKITC-1-N8R2, from the ESP32 family.

How big is the ESP32-S3-VGA-ADAPTOR PCB?

The ESP32-S3-VGA-ADAPTOR measures 100 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32-S3-VGA-ADAPTOR?

31 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP32-S3-VGA-ADAPTOR design files?

From the cfrankb/ESP32-S3-VGA-ADAPTOR repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ESP32-S3-VGA-ADAPTOR design in my own project?

The repository has no license, so all rights stay with cfrankb. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP32-S3-VGA-ADAPTOR without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
