Mie1001 daq simple
About the Mie1001 daq simple PCB
Mie1001 daq simple is an open source AVR/Arduino PCB design by Chaospossum, published on GitHub. It is a 2-layer board measuring 68.6 × 53.3 mm, with 31 components from 25 distinct parts.
Its main chip is the Arduino UNO R3 SMD (ATmega328P TQFP-32), from the AVR/Arduino family. Other key parts include the 1085 (ORIGINAL 1x10 version, from the class kit), 12918, LMP7721MA/NOPB and MCP6002-I/SN. By type, the board carries 11 resistors, 7 capacitors, 5 connectors and 4 ICs.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
MIE1001 Team 5: DAQ firmware and Arduino shield designs (preamp, ADS1115, MCP4725)

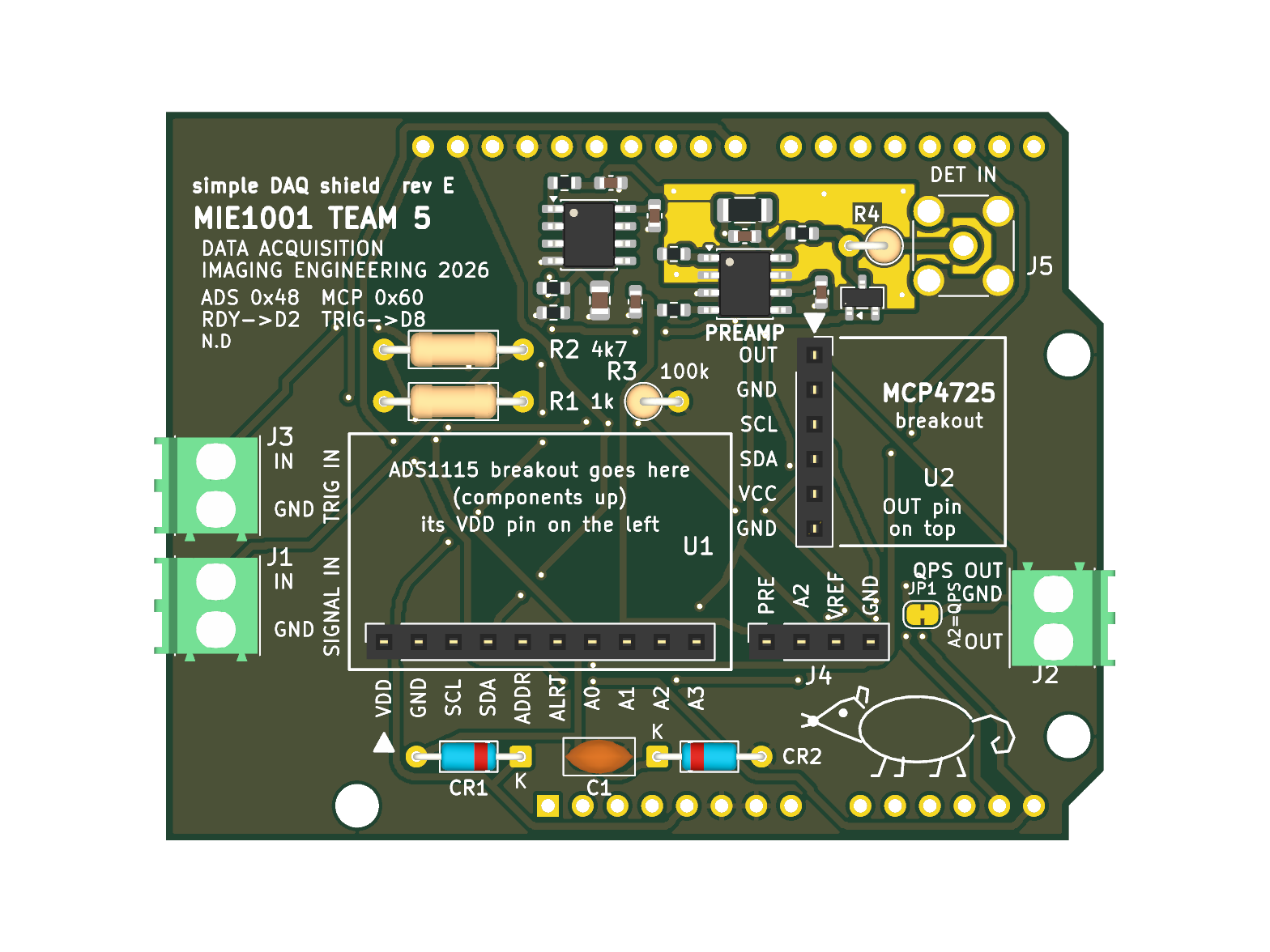

The beginner version of the DAQ board: an Arduino UNO R3 shield that the two breakout boards from class plug into (modular: both unplug). Fat tracks, the breakouts, connectors and through-hole parts are hand-soldered. Rev D adds a Faraday-cup preamp with 16 small SMD parts. Everything is ordered from Digi-Key (university procurement, see Ordering from Digi-Key) and hand-soldered (see Hand-soldering order); JLCPCB assembly is an optional alternative.
Main components on the Mie1001 daq simple
Mie1001 daq simple bill of materials (BOM)
31 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1085 (ORIGINAL 1x10 version, from the class kit) ADS1115 breakout Adafruit | PinSocket_1x10_P2.54mm_Vertical | U1 |
| 1 | 12918 MCP4725 breakout SparkFun Electronics | PinSocket_1x06_P2.54mm_Vertical | U2 |
| 1 | LMP7721MA/NOPB LMP7721 Texas Instruments | SOIC-8_3.9x4.9mm_P1.27mm | U3 |
| 1 | MCP6002-I/SN MCP6002 Microchip Technology | SOIC-8_3.9x4.9mm_P1.27mm | U4 |
| 1 | 1984617 SIGNAL IN Phoenix Contact | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J1 |
| 1 | 1984617 QPS OUT Phoenix Contact | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J2 |
| 1 | 1984617 TRIG IN Phoenix Contact | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J3 |
| 1 | PPTC041LFBN-RC SPARE ADC A1-A3 Sullins Connector Solutions | PinSocket_1x04_P2.54mm_Vertical | J4 |
| 1 | 132134 DET IN (SMA) Amphenol RF | SMA_Amphenol_132134_Vertical | J5 |
| 1 | UNO R3 SMD CH340 clone (marked V1888); A000073 is the official SMD edition Arduino UNO R3 SMD (ATmega328P TQFP-32) Arduino or compatible | Arduino_UNO_R3 | ARD1 |
| 2 | 1N4148 onsemi | D_DO-35_SOD27_P7.62mm_Horizontal | CR1, CR2 |
| 1 | BAV199LT1G BAV199 onsemi | SOT-23 | CR3 |
| 1 | K104K15X7RF5TL2 100 nF Vishay Beyschlag/Draloric/BC Components | C_Disc_D5.0mm_W2.5mm_P2.50mm | C1 |
| 1 | CL10C100JB8NNNC 10pF Samsung Electro-Mechanics | C_0603_1608Metric | C2 |
| 2 | 885012206095 100nF Wurth Elektronik | C_0603_1608Metric | C3, C7 |
| 1 | TMK212BBJ106KGHT 10uF Taiyo Yuden | C_0805_2012Metric | C4 |
| 2 | CL10A105KA8NNNC 1uF Samsung Electro-Mechanics | C_0603_1608Metric | C5, C6 |
| 1 | CFR-25JB-52-1K 1 kΩ YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 1 | CFR-25JB-52-4K7 4.7 kΩ YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
| 1 | CFR-25JB-52-100K 100 kΩ YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R3 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CFR-25JB-52-10K 10 kΩ YAGEO | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R4 |
| 3 | RC0603FR-071KL 1k YAGEO | R_0603_1608Metric | R5, R7, R11 |
| 1 | HVCB1206FKC100M 100M Stackpole Electronics Inc | R_1206_3216Metric | R6 |
| 2 | RC0603FR-07100KL 100k YAGEO | R_0603_1608Metric | R8, R9 |
| 1 | RC0603FR-07100RL 100R YAGEO | R_0603_1608Metric | R10 |
Mie1001 daq simple design files
The KiCad project lives in the Chaospossum/mie1001-daq repository on GitHub; these links point at the commit this page was built from.
Mie1001 daq simple: common questions
What microcontroller does the Mie1001 daq simple use?
The Mie1001 daq simple is built around the Arduino UNO R3 SMD (ATmega328P TQFP-32), from the AVR/Arduino family.
How big is the Mie1001 daq simple PCB?
The Mie1001 daq simple measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Mie1001 daq simple?
31 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Mie1001 daq simple design files?
From the Chaospossum/mie1001-daq repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Mie1001 daq simple design in my own project?
The repository has no license, so all rights stay with Chaospossum. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Mie1001 daq simple without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
