Veil60 PCB layout, top view — open source RP2040/RP2350 board by Charading

About the Veil60 PCB

Veil60 is an open source RP2040/RP2350 PCB design by Charading, published on GitHub. It is a 2-layer board measuring 285 × 94.6 mm, with 314 components from 93 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AP2112K-3.3TRG1, USBLC6-2SC6 and W25Q128JVS. By type, the board carries 79 LEDs, 62 diodes, 18 capacitors, 10 resistors, 4 ICs and 2 inductors.

It belongs with the keyboards and sensors designs in this gallery.

From the project

A 66 key 60% mechanical keyboard, with WASD as hall effect sensors.

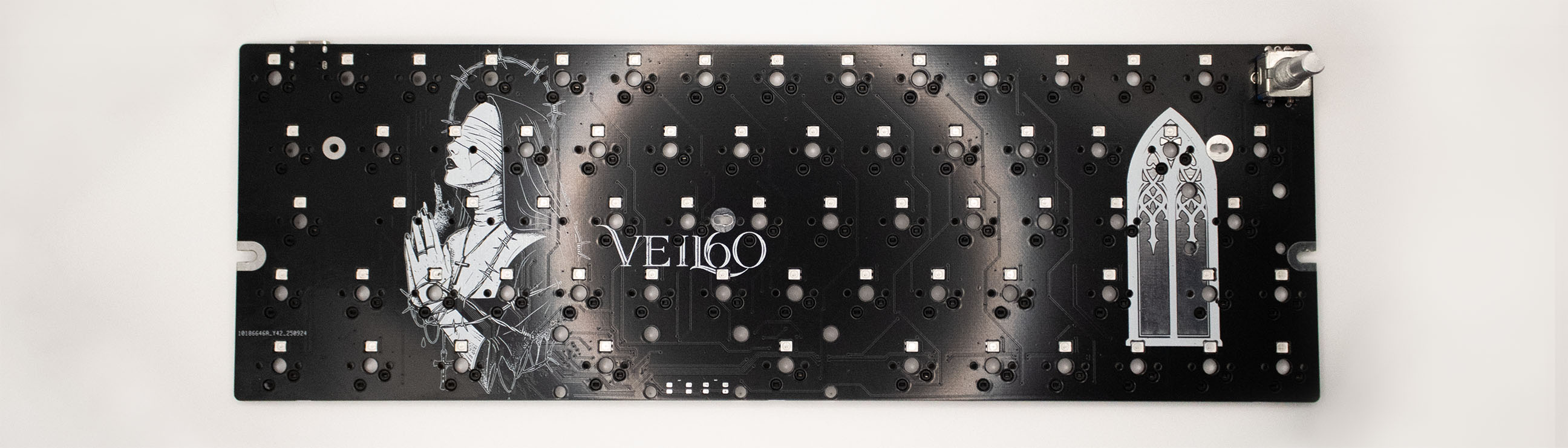

Veil60, from the project README
From the project README

Main components on the Veil60

AP2112K-3.3TRG1USBLC6-2SC6W25Q128JVSRP2040

Veil60 bill of materials (BOM)

314 components, 93 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP2112K-3.3TRG1
U1
1
USBLC6-2SC6
U2
1
W25Q128JVS
U3
1
RP2040
U4
1
12MHZ
12MHz
Y1
1
USB_C_Receptacle
J1
4
0.1UF
0.1uF
AC1, AC2, AC3, AC4
1
Polyfuse_Small
F1
66
100N
100n
LC1, LC2, LC3, LC4, LC5, LC6, LC7, LC8 +58
1
Esc
MX1
1
1
MX2
1
2
MX3
1
3
MX4
1
4
MX5
1
5
MX6
1
6
MX7
1
7
MX8
1
8
MX9
1
9
MX10
1
10
MX11
Show 73 more
QtyPartRefs
1
-
MX12
1
=
MX13
1
Back
MX14
1
Tab
MX15
1
Q
MX16
1
W
MX17
1
E
MX18
1
R
MX19
1
T
MX20
1
Y
MX21
1
U
MX22
1
I
MX23
1
O
MX24
1
P
MX25
1
[
MX26
1
]
MX27
1
#
MX28
1
Caps
MX29
1
A
MX30
1
S
MX31
1
D
MX32
1
F
MX33
1
G
MX34
1
H
MX35
1
J
MX36
1
K
MX37
1
L
MX38
1
;:
MX39
1
'@
MX40
1
Enter
MX41
1
L_Shift
MX42
1
\
MX43
1
Z
MX44
1
X
MX45
1
C
MX46
1
V
MX47
1
B
MX48
1
N
MX49
1
M
MX50
1
,<
MX51
1
.>
MX52
1
R_Shift
MX53
1
Up
MX54
1
/?
MX55
1
L_Ctrl
MX56
1
Win
MX57
1
L_Alt
MX58
1
SPACE1
Space1
MX59
1
SPACE2
Space2
MX60
1
SPACE3
Space3
MX61
1
R_Alt
MX62
1
Fn
MX63
1
Left
MX64
1
Down
MX65
1
Right
MX66
66
SK6812MINI-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +58
1
WS2812_4020
UG1
12
WS2812B
UL1, UL2, UL3, UL4, UL5, UL6, UL7, UL8 +4
62
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +54
1
600R
FB1
1
10UH
10uH
L1
9
0.1UF
0.1uF
C1, C2, C3, C4, C5, C6, C14, C16 +1
2
4.7UF
4.7uF
C7, C8
2
10UF
10uF
C9, C11
1
0.1UF
0.1uF
C10
2
30P
30p
C12, C13
1
1u
C15
1
10U
10u
C18
2
5.1K
5.1k
R1, R2
1
10K
R3
2
27R
R4, R5
1
330
R6
4
1k
R7, R8, R9, R10

Veil60 design files

The KiCad project lives in the Charading/Veil60 repository on GitHub; these links point at the commit this page was built from.

Veil60: common questions

What microcontroller does the Veil60 use?

The Veil60 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Veil60 PCB?

The Veil60 measures 285 × 94.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Veil60?

314 components, from 93 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Veil60 design files?

From the Charading/Veil60 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Veil60 design in my own project?

The repository has no license, so all rights stay with Charading. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Veil60 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
