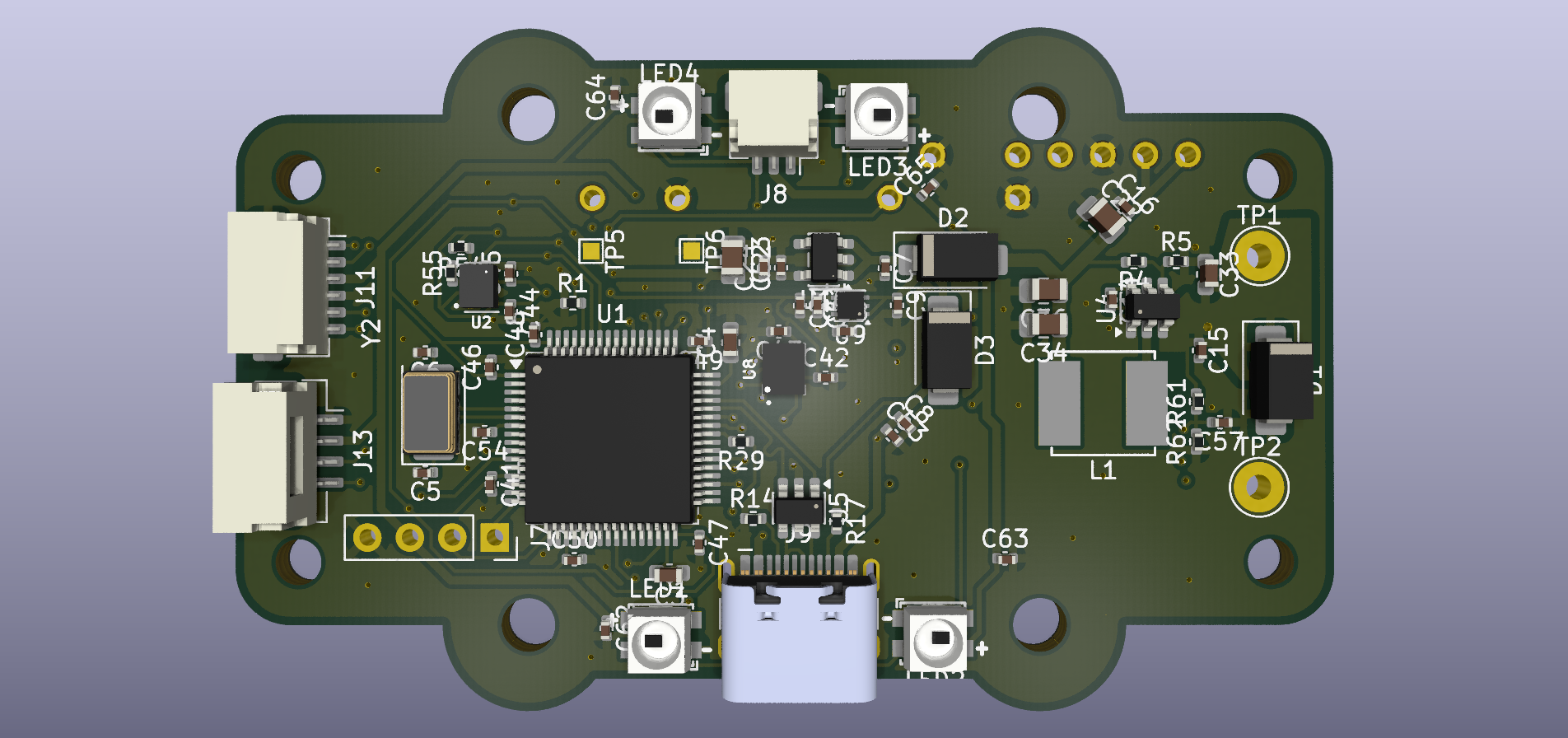

Aero-Zero PCB layout, top view — open source STM32 board by ChladpavPy

About the Aero-Zero PCB

Aero-Zero is an open source STM32 PCB design by ChladpavPy, published on GitHub. It is a 4-layer board measuring 65 × 40.8 mm, with 92 components from 45 distinct parts.

Its main chip is the STM32F407RGTX, from the STM32 family. Other key parts include the RASPBERRY_PI_ZERO_2_W, TPS54302, USBLC6-2SC6, ICM-42688-P and SPL06-007. By type, the board carries 40 capacitors, 20 resistors, 8 ICs, 8 connectors, 4 LEDs and 4 diodes.

It belongs with the sensors, robotics & motion and rf & radio designs in this gallery.

From the project

I started this project, because I wanted to build fully autonomous ai drone. When I looked at the flight controllers available on the market, they were full of hardware that I just do not need or just that I could not add things that I want (for example the Rasberry pi zero 2w) .

I started this project, because I wanted to build fully autonomous ai drone. When I looked at the flight controllers available on the market, they were full of hardware that I just do not need or just that I could not add things that I want (for example the Rasberry pi zero 2w) . Most boards also waste a lot of space on powering analog OSD chips, which is completely useless for me because I am flying a purely digital HD system like Walksnail Avatar. Because the technology changed and digital is the standard now, I realized it is just a waste of space to keep the analog stuff and massive…

Aero-Zero, from the project README
From the project README

Main components on the Aero-Zero

STM32F407RGTXRASPBERRY_PI_ZERO_2_WTPS54302USBLC6-2SC6ICM-42688-PSPL06-007MIC5353-3.3YMTXC6220B331MR

Aero-Zero bill of materials (BOM)

92 components, 45 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F407RGTX
STM32F407RGTx
U1
1
RASPBERRY_PI_ZERO_2_W
U3
1
TPS54302
U4
1
USBLC6-2SC6
U5
1
ICM-42688-P
TDK InvenSense(应美盛)
U6
1
SPL06-007
null
U7
1
MIC5353-3.3YMT
U9
1
XC6220B331MR
U10
1
MMBT2222A
Q1
1
8MHZ
8MHz
Y2
1
CONN_01X04_MOUNTINGPIN
Conn_01x04_MountingPin
J1
1
DM3AT-SF-PEJM5
J4
1
CONN_01X08_MOUNTINGPIN
Conn_01x08_MountingPin
J5
1
ELRS
J7
1
CONN_01X03_MOUNTINGPIN
Conn_01x03_MountingPin
J8
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J9
1
CONN_01X06_MOUNTINGPIN
Conn_01x06_MountingPin
J11
1
CONN_01X04_MOUNTINGPIN
Conn_01x04_MountingPin
J13
1
C95298
Buzzer
BZ1
1
Flash
Flash1
Show 25 more
QtyPartRefs
1
Reset
Reset2
2
TestPoint
TP1, TP2
4
C527089
~
worldsemi
LED1, LED2, LED3, LED4
1
SMAJ33A
D1
2
SS14
D2, D3
1
1N4148W
D4
1
6.8UH
6.8uH
L1
2
2.2UF
2.2uF
C3, C4
2
33PF
33pF
C5, C6
4
10UF
10uF
C7, C9, C33, C68
3
10UF
10uF
C8, C21, C24
23
100NF
100nF
C14, C15, C16, C38, C41, C46, C47, C48 +15
2
10UF
10uF
C22, C23
2
22UF
22uF
C34, C36
2
100NF
100nF
C35, C69
3
10K
R1, R5, R61
1
10K
R2
2
2.2K
R3, R7
1
75K
R4
1
1K
R6
2
5.1K
R14, R17
1
330R
R29
6
10K
R53, R68, R69, R70, R71, R72
2
C25879
2,2K
R54, R55
1
1K
R62

Aero-Zero design files

The KiCad project lives in the ChladpavPy/Aero-Zero repository on GitHub; these links point at the commit this page was built from.

Aero-Zero: common questions

What microcontroller does the Aero-Zero use?

The Aero-Zero is built around the STM32F407RGTX, from the STM32 family.

How big is the Aero-Zero PCB?

The Aero-Zero measures 65 × 40.8 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Aero-Zero?

92 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Aero-Zero design files?

From the ChladpavPy/Aero-Zero repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Aero-Zero design in my own project?

The repository has no license, so all rights stay with ChladpavPy. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Aero-Zero without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
