About the Quokka PCB
Quokka is an open source STM32 PCB design by ChrisPVille, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 228.6 × 184.2 mm, with 331 components from 50 distinct parts.
Its main chip is the STM32F072CBTx, from the STM32 family. Other key parts include the TS3001x, LDL1117S25R, LDL1117S12R, XC3S200-TQ144 and USBLC6-2SC6. By type, the board carries 98 resistors, 89 capacitors, 37 diodes, 31 ICs, 30 switches and 29 transistors.
It belongs with the retro computing designs in this gallery.
From the project

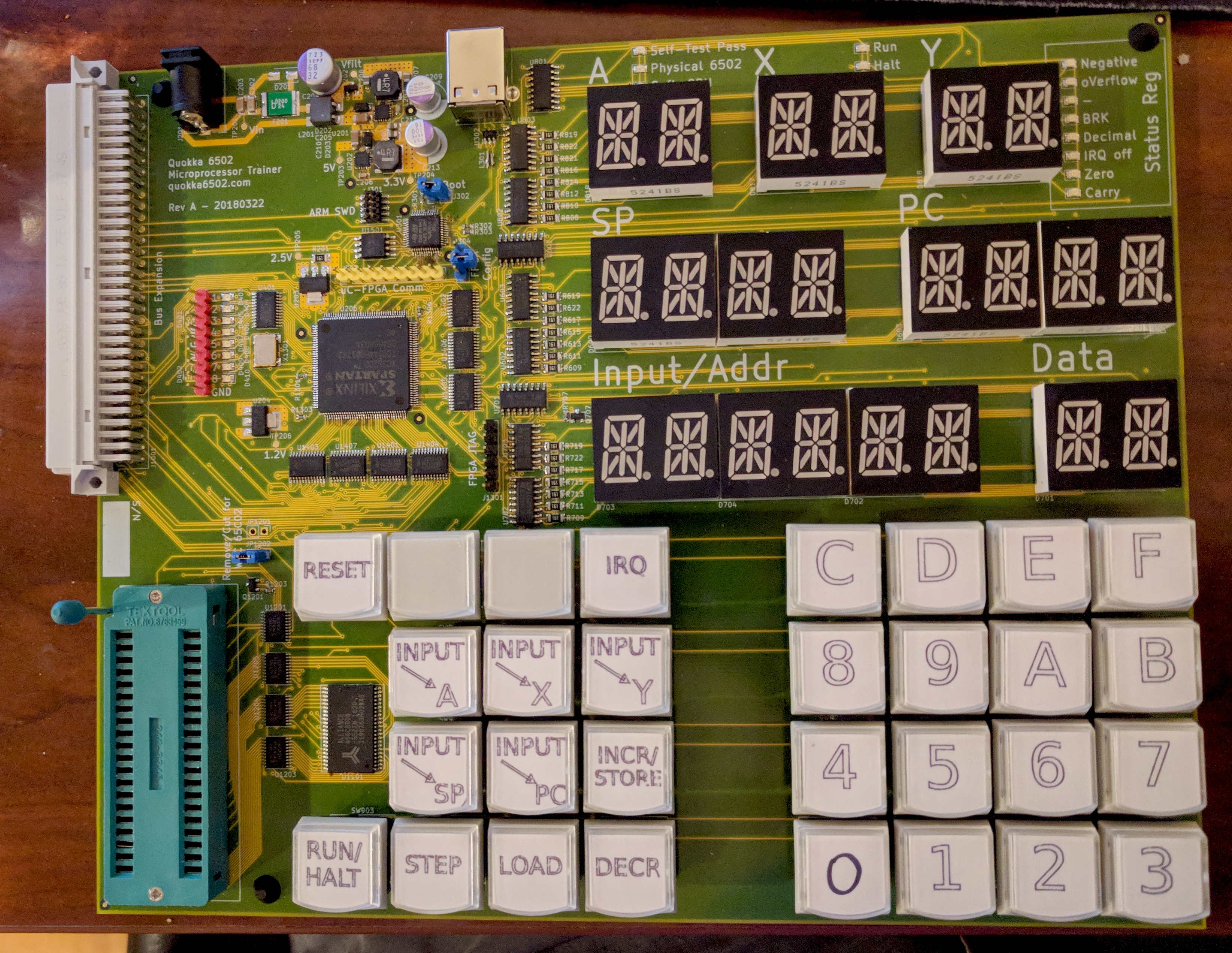

Quokka 6502 Microprocessor Trainer

Main components on the Quokka
Quokka bill of materials (BOM)
331 components, 50 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TS3001x | UQFN-16-1EP_3x3mm_P0.5mm_EP1.75x1.75mm | U201, U202 |
| 1 | LDL1117S25R | SOT-223-3_TabPin2 | U203 |
| 1 | LDL1117S12R | SOT-223-3_TabPin2 | U204 |
| 1 | XC3S200-TQ144 | LQFP-144_20x20mm_P0.5mm | U205 |
| 1 | STM32F072CBTx | LQFP-48_7x7mm_P0.5mm | U301 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U302 |
| 8 | 74LVC4245A | TSSOP-24_4.4x7.8mm_P0.65mm | U401, U1401, U1402, U1403, U1404, U1405, U1406, U1407 |
| 9 | TPIC6D595 | SOIC-16_3.9x9.9mm_P1.27mm | U601, U602, U603, U701, U702, U703, U801, U802 +1 |
| 1 | AS6C8008 | AS6C8008-SOIC-44 | U1101 |
| 4 | 74HCT245 | SSOP-20_4.4x6.5mm_P0.65mm | U1201, U1203, U1204, U1205 |
| 1 | 6502 | DIP-40_W15.24mm | U1202 |
| 1 | W25Q64JVSSIM | SOIJ-8_5.3x5.3mm_P1.27mm | U1501 |
| 24 | Q_PMOS_GSD | SOT-23 | Q201, Q601, Q602, Q603, Q604, Q605, Q606, Q607 +16 |
| 5 | Q_NPN_BEC | SOT-23 | Q1201, Q1301, Q1401, Q1402, Q1403 |
| 1 | SG7050CAN 25.0Mhz | Oscillator_SMD_SeikoEpson_SG8002CA-4Pin_7.0x5.0mm | X1301 |
| 1 | Barrel_Jack | BarrelJack_CUI_PJ-102AH_Horizontal | J201 |
| 1 | ARM SWD | PinHeader_2x05_P1.27mm_Vertical_SMD | J301 |
| 1 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J302 |
| 2 | Conn_01x09 | PinHeader_1x09_P2.54mm_Vertical | J303, J401 |
| 1 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J304 |
Show 30 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_B | UE27BCX4 | J305 |
| 1 | DIN96 | DIN-8609-2030 | J1001 |
| 1 | FPGA JTAG | PinHeader_1x06_P2.54mm_Vertical | J1301 |
| 1 | Polyfuse | Fuse_2920_7451Metric | F201 |
| 1 | Jumper_NC_Small | PinHeader_1x02_P2.54mm_Vertical | JP1201 |
| 1 | WireJumper | PinHeader_1x02_P2.54mm_Vertical | JP1202 |
| 30 | SW_SPST | SW_Cherry_MX1A_1.00u_PCB | SW901, SW902, SW903, SW904, SW905, SW906, SW907, SW908 +22 |
| 1 | D_TVS | D_SMA | D201 |
| 2 | D_Schottky | D_SOD-123F | D202, D203 |
| 2 | DF5A6.8F | SOT-353_SC-70-5 | D401, D402 |
| 21 | LED_Small | LED_0805_2012Metric | D403, D404, D405, D406, D407, D408, D409, D410 +13 |
| 11 | 14-segment | 14-segment | D601, D602, D603, D604, D701, D702, D703, D704 +3 |
| 1 | Power Choke | CM2021Y330R-10 | L201 |
| 2 | 4.7u | L_Taiyo-Yuden_NR-60xx | L202, L203 |
| 1 | USB Choke | DLW21H | L301 |
| 2 | 22n | C_0603_1608Metric | C201, C206 |
| 2 | 1n | C_1206_3216Metric | C202, C203 |
| 1 | 68u | CP_Radial_D6.3mm_P2.50mm | C204 |
| 3 | 10u | C_1206_3216Metric | C205, C210, C1203 |
| 4 | 22u | C_0805_2012Metric | C207, C208, C211, C212 |
| 2 | 100u | CP_Radial_D8.0mm_P3.50mm | C209, C213 |
| 54 | 1u | C_0603_1608Metric | C214, C216, C219, C220, C221, C223, C224, C225 +46 |
| 8 | 4.7u | C_0603_1608Metric | C215, C217, C218, C222, C226, C230, C301, C302 |
| 13 | 0.1u | C_0603_1608Metric | C235, C237, C239, C241, C243, C245, C247, C249 +5 |
| 46 | 160 | R_1206_3216Metric | R201, R609, R610, R611, R612, R613, R614, R615 +38 |
| 36 | 4K7 | R_0603_1608Metric | R301, R302, R601, R602, R603, R604, R605, R606 +28 |
| 1 | 10k | R_0603_1608Metric | R303 |
| 9 | 390 | R_0603_1608Metric | R401, R402, R403, R404, R405, R406, R407, R408 +1 |
| 4 | 1k | R_0603_1608Metric | R1203, R1305, R1402, R1404 |
| 2 | 68 | R_0603_1608Metric | R1303, R1306 |
Quokka design files
The KiCad project lives in the ChrisPVille/quokka repository on GitHub; these links point at the commit this page was built from.
- Layoutboard/quokka.kicad_pcb
Quokka: common questions
What microcontroller does the Quokka use?
The Quokka is built around the STM32F072CBTx, from the STM32 family.
How big is the Quokka PCB?
The Quokka measures 228.6 × 184.2 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Quokka?
331 components, from 50 distinct parts. The full bill of materials is listed on this page.
Where can I download the Quokka design files?
From the ChrisPVille/quokka repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Quokka design in my own project?
Yes, under the terms of its Apache-2.0 license, which ChrisPVille chose for the repository.
Can I test firmware for the Quokka without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
