Poncho Grande - Modelo - Ejemplo - Template
About the Poncho Grande - Modelo - Ejemplo - Template PCB
Poncho Grande - Modelo - Ejemplo - Template is an open source PCB design by ciaa, published on GitHub. It is a 2-layer board measuring 85.9 × 137 mm, with 27 components from 19 distinct parts.
Other key parts include the TLP627-4. By type, the board carries 8 connectors, 4 capacitors, 4 resistors, 2 diodes, 1 IC and 1 transistor.
From the project

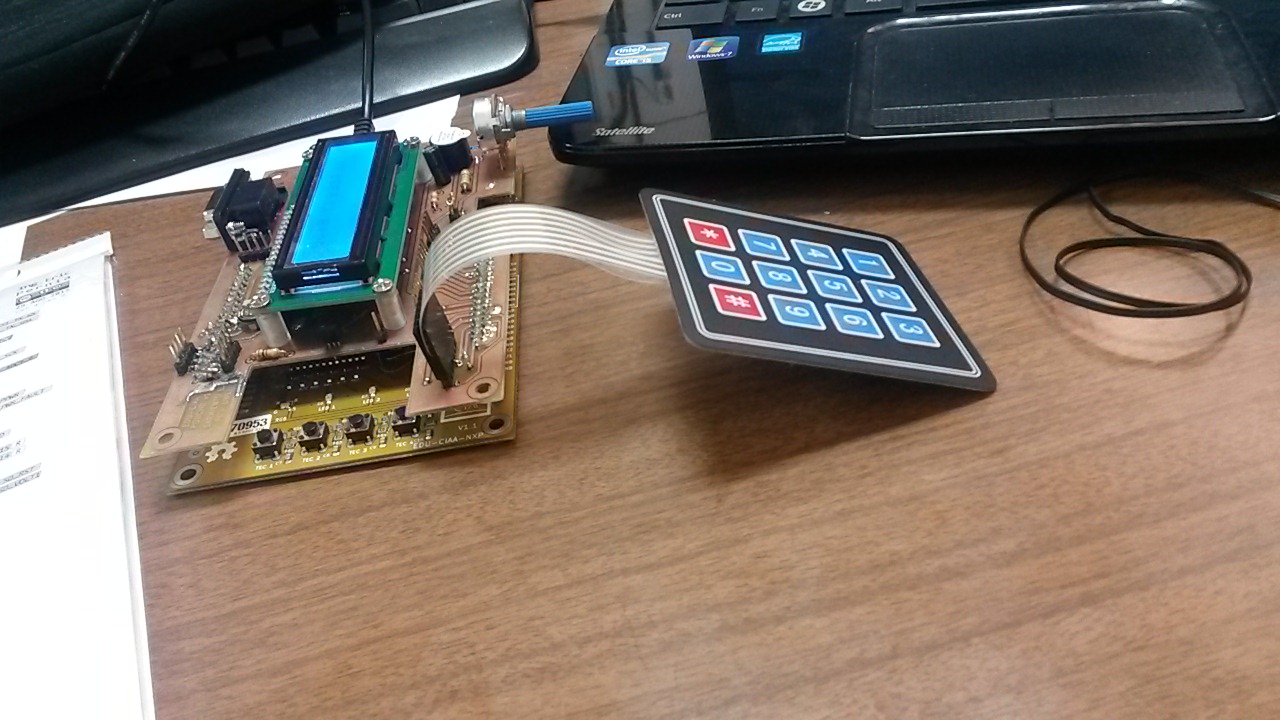

El poncho consta de elemento digitales y analógicos tales como: potenciómetro, buzzer, UART/RS-232, LCD 16x2, teclado matricial 4x3, y pinout para comunicaciones varias y pines de propósito general.
El poncho consta de elemento digitales y analógicos tales como: potenciómetro, buzzer, UART/RS-232, LCD 16x2, teclado matricial 4x3, y pinout para comunicaciones varias y pines de propósito general.
Ver información sobre el Poncho en el siguiente PDF: Reporte Poncho Educativo UNSJ.PDF Wiki Proyeto CIAA
Main components on the Poncho Grande - Modelo - Ejemplo - Template
Poncho Grande - Modelo - Ejemplo - Template bill of materials (BOM)
27 components, 19 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TLP627-4 MAX232 | DIP-16_W7.62mm_LongPads | U1 |
| 1 | FQT13N06L BC548 | TO-92_Inline_Narrow_Oval | Q1 |
| 1 | I2C DB9 | DB_9F | J1 |
| 3 | CONN_01X05 | pin_strip_5 | P1, P3, P4 |
| 3 | CONN_01X04 | pin_strip_4 | P2, P7, P8 |
| 1 | CONN_01X01 | pin_strip_1 | P6 |
| 1 | buzzer | Buzzer_12x9.5RM7.6 | BZ1 |
| 1 | WC1602A LCD16X2 | WC1602A | DS1 |
| 1 | JUMPER | pin_strip_2 | JP1 |
| 1 | Keypad_-_Phone | pin_socket_7 | KP-P1 |
| 1 | 10K | trimmer_piher_pt10xv | RV1 |
| 1 | 10K | Potentiometer_Alps-RK16-single | RV2 |
| 1 | CONN_PONCHO2P_2X_20X2 Conn_Poncho2P_2x_20x2 | poncho_grande | XA1 |
| 2 | Led_Small | LED-3MM | D1, D2 |
| 4 | 100NF CP1 | CP_5x11mm | C1, C2, C3, C4 |
| 1 | 100 470 | Resistor_Horizontal_RM10mm | R1 |
| 1 | 3.3K 100 | Resistor_Horizontal_RM10mm | R2 |
| 1 | 3.3K 470 | Resistor_Horizontal_RM10mm | R3 |
| 1 | 3.3K 1K | Resistor_Horizontal_RM10mm | R4 |
Poncho Grande - Modelo - Ejemplo - Template design files
The KiCad project lives in the ciaa/Ponchos repository on GitHub; these links point at the commit this page was built from.
Poncho Grande - Modelo - Ejemplo - Template: common questions
How big is the Poncho Grande - Modelo - Ejemplo - Template PCB?
The Poncho Grande - Modelo - Ejemplo - Template measures 85.9 × 137 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Poncho Grande - Modelo - Ejemplo - Template?
27 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Poncho Grande - Modelo - Ejemplo - Template design files?
From the ciaa/Ponchos repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Poncho Grande - Modelo - Ejemplo - Template design in my own project?
The repository has no license, so all rights stay with ciaa. Use it as a reference, and ask the author before reusing the design.
