EQMOD DIRECT Isolated
About the EQMOD DIRECT Isolated PCB
EQMOD DIRECT Isolated is an open source PCB design by claudioarena, published on GitHub. It is a 4-layer board measuring 76.1 × 21.5 mm, with 36 components from 19 distinct parts.
Other key parts include the USBLC6-2SC6, FT232RL, ADuM1201AR, ADuM1200AR and NUP4202. By type, the board carries 11 capacitors, 9 resistors, 6 ICs, 4 diodes, 3 fuses and 2 connectors.
From the project

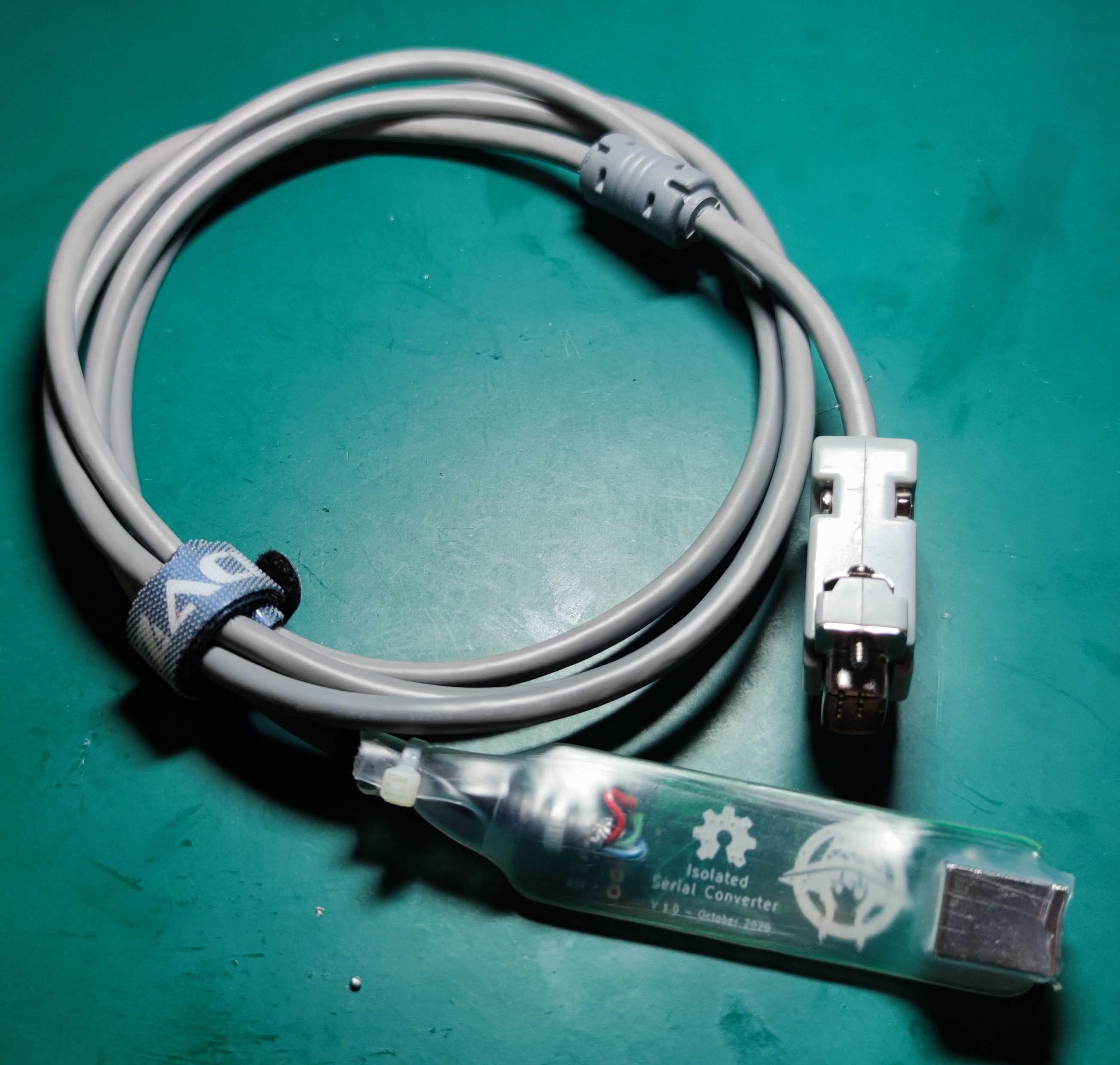

An isolated UART to USB board, capable of being used as an EQDIRECT board
This is a KiCad PCB for an isolated UART to USB board. It can be used as isolated EQDIRECT board to connect to your HEQ5 or EQ6 astronomical mount. It can also be used as a generic, isolated UART converter board, with optional DTR and RTS lines.
If you want to make your own, or order one from JLC PCB, you can find details and the needed files below. I also have some extra boards (both assembled and bare PCB), that I sell, at pretty much the manufacturing price. You will only need to add a USB cable, and the cable from your mount to the board (again, details below).
Main components on the EQMOD DIRECT Isolated
EQMOD DIRECT Isolated bill of materials (BOM)
36 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USBLC6-2SC6 | SOT-23-6 | U1 |
| 1 | FT232RL | SSOP-28_5.3x10.2mm_P0.65mm | U2 |
| 1 | ADuM1201AR | SOIC-8_3.9x4.9mm_P1.27mm | U3 |
| 1 | ADuM1200AR | SOIC-8_3.9x4.9mm_P1.27mm | U4 |
| 1 | NUP4202 | SOT-363_SC-70-6 | U5 |
| 1 | HT7550-1-SOT89 | SOT-89-3 | U6 |
| 1 | USB_B | USB_B_OST_USB-B1HSxx_Horizontal | J1 |
| 1 | UART | JST_XH_B7B-XH-A_1x07_P2.50mm_Vertical_noCourtyard | J2 |
| 3 | 150 mA | Fuse_0603_1608Metric_Pad1.05x0.95mm_HandSolder | F1, F2, F3 |
| 1 | LED_P_A | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 1 | LED_P_B | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D2 |
| 1 | LED_Rx | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D3 |
| 1 | LED_Tx | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D4 |
| 1 | 120 @ 100 Mhz | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | FB1 |
| 8 | 100 nF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C1, C2, C3, C5, C6, C8, C9, C10 |
| 3 | 4.7 uF | C_1206_3216Metric_Pad1.42x1.75mm_HandSolder | C4, C7, C11 |
| 4 | 3.3k | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1, R2, R3, R4 |
| 1 | 10k | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R5 |
| 4 | 200 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R6, R7, R8, R9 |
EQMOD DIRECT Isolated design files
The KiCad project lives in the claudioarena/EQMOD_DIRECT_Isolated repository on GitHub; these links point at the commit this page was built from.
EQMOD DIRECT Isolated: common questions
How big is the EQMOD DIRECT Isolated PCB?
The EQMOD DIRECT Isolated measures 76.1 × 21.5 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the EQMOD DIRECT Isolated?
36 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the EQMOD DIRECT Isolated design files?
From the claudioarena/EQMOD_DIRECT_Isolated repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the EQMOD DIRECT Isolated design in my own project?
The repository has no license, so all rights stay with claudioarena. Use it as a reference, and ask the author before reusing the design.
