Sensor Board
About the Sensor Board
Sensor Board is an open source PCB design by CMGeldenhuys, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 68 × 38 mm, with 62 components from 23 distinct parts.
Other key parts include the TLV741PxxDBVx, OPA377xxDBVx and THS4551. By type, the board carries 21 resistors, 15 capacitors, 8 microphones, 3 ICs, 1 connector and 1 diode.
It belongs with the usb & debug tools, rf & radio and sensors designs in this gallery.
From the project
Spatially-Distributed Temporally-Synchronised Infrasonic Recorder

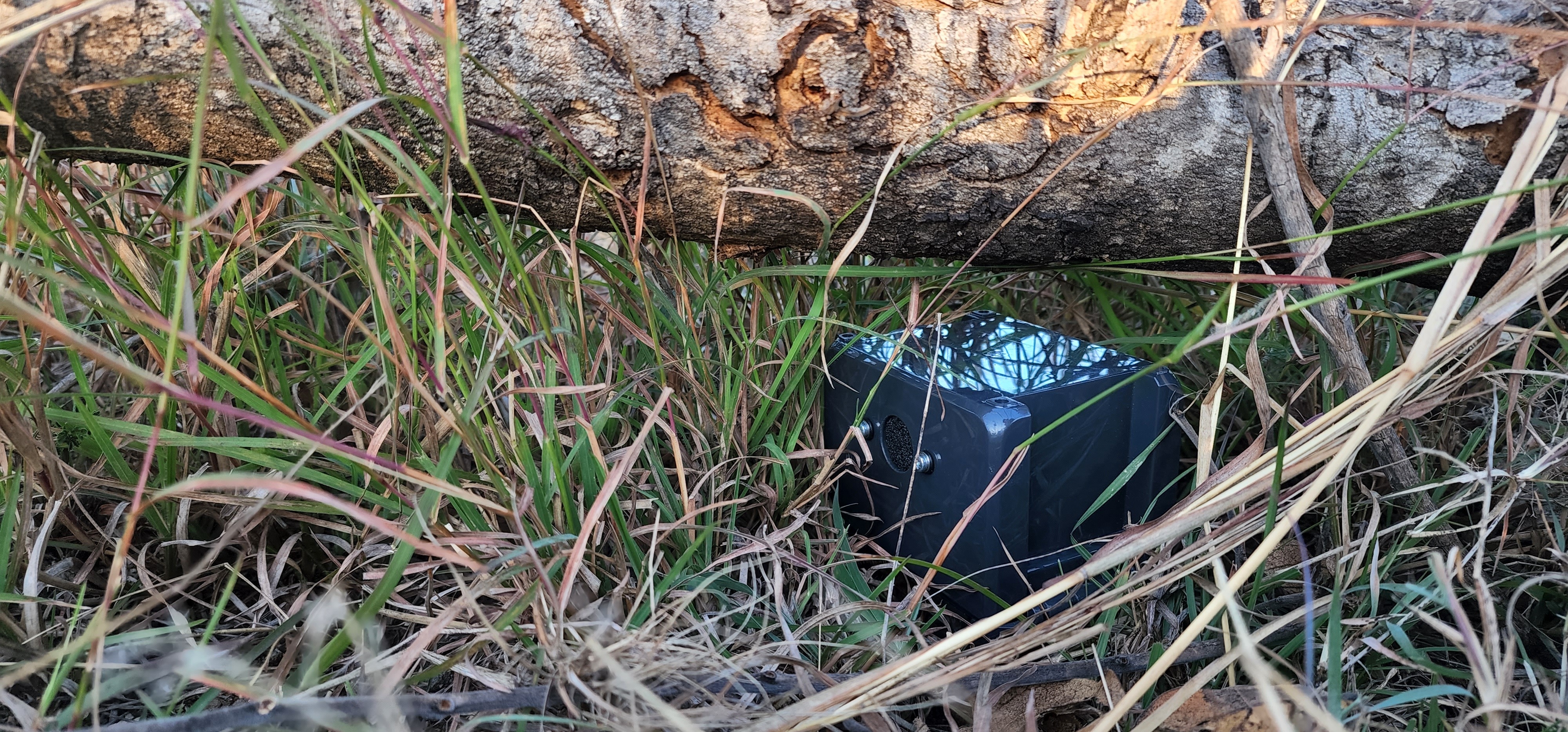

Kleinvoet is a self-contained low-cost passive acoustic monitoring device. The recorder was initially designed for distributed infrasonic (8Hz) localisation, and features accurate temporal synchronisation through the use of an onboard GNSS module.
The recorder is capable of 24-bit stereo recording at a variable sampling rate of 8kHz to 192kHz. The recordings along with timestamp and operational log information is stored on a microSD card. The recordings are stored as a series of 256MiB WAV files.
Main components on the Sensor Board
Sensor Board bill of materials (BOM)
62 components, 23 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TLV741PxxDBVx | SOT-23-5 | U1 |
| 1 | OPA377xxDBVx | SOT-23-5 | U2 |
| 1 | THS4551 | WQFN-10_RUN | U3 |
| 1 | Mic_Conn | TE_7-215079-8 | J1 |
| 12 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | CB1, CB3, CB4, CB5, CB6, CB7, CB8, CB9 +4 |
| 8 | MIC_ICS_40300 | MEMS_Mic_ICS-40300 | MK1, MK2, MK3, MK4, MK5, MK6, MK7, MK8 |
| 1 | RED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 1 | 100 @ 100 MHz | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | FB1 |
| 4 | 1u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C3, C14, C15 |
| 1 | 10u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2 |
| 3 | 47u | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C4, C10, C11 |
| 3 | 220p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C5, C12, C13 |
| 1 | 18n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C6 |
| 1 | PH | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | C7 |
| 2 | 2.7n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C8, C9 |
| 1 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 11 | 2k2 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3, R4, R5, R6, R7, R8, R9 +3 |
| 1 | PH | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10 |
| 1 | 270 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R13 |
| 1 | 210 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R14 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 330 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R15, R16 |
| 2 | 1k0 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R17, R18 |
| 2 | 47E | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R19, R20 |
Sensor Board design files
The KiCad project lives in the CMGeldenhuys/kleinvoet repository on GitHub; these links point at the commit this page was built from.
Sensor Board: common questions
How big is the Sensor Board?
The Sensor Board measures 68 × 38 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Sensor Board?
62 components, from 23 distinct parts. The full bill of materials is listed on this page.
Where can I download the Sensor Board design files?
From the CMGeldenhuys/kleinvoet repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Sensor Board design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which CMGeldenhuys chose for the repository.
